Lifting Steel Triangle

CAD$13.40CAD$321.21

SKU: 18522-Triangle Categories: ,

Available Options:

Lifting Steel Triangle

Safety Factor 5:1

W.L.L. = Working Load Limit

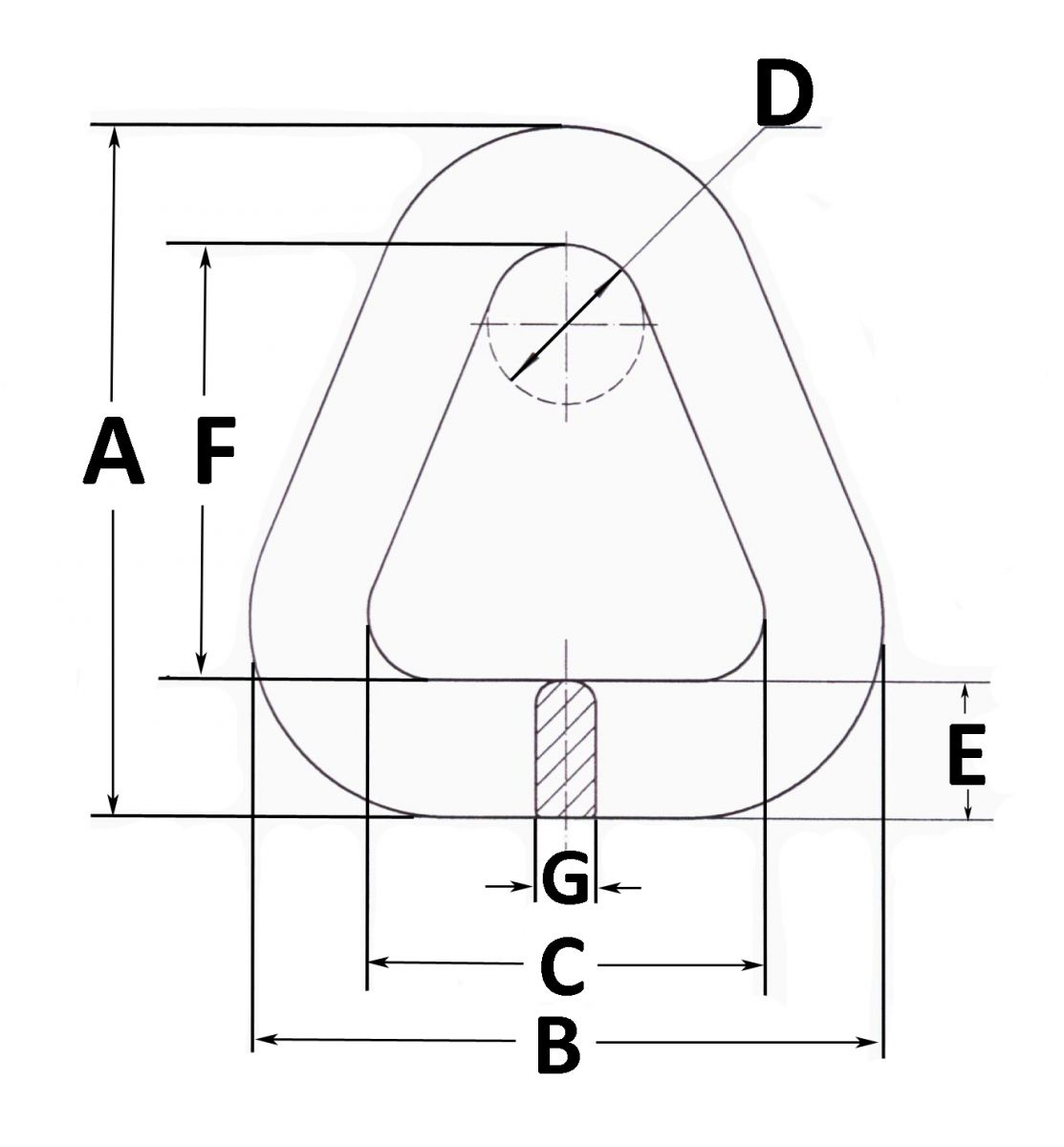

Part No. Webbing Width A (inch) B (inch) C (inch) D (inch) E (inch) F (inch) G (inch) W.L.L (lbs) Breaking Strength (lbs) Weight (lbs)
18522 2″ 4.45″ 4.12″ 2.59″ 1.02″ 0.88″ 2.81″ 0.39″ 6,600 33,000 0.97
18523 3″ 5.19″ 5.71″ 3.61″ 1.76″ 1.06″ 3.06″ 0.47″ 8,800 44,000 1.9
18524 4″ 5.94″ 6.59″ 4.38″ 2.36″ 1.1″ 3.74″ 0.47″ 11,200 56,000 2.4
18525 5″ 7.4″ 8.58″ 5.43″ 2.6″ 1.38″ 4.65″ 0.47″ 14,000 70,000 4
18526 6″ 7.99″ 8.97″ 6.6″ 3″ 1.18″ 5.63″ 0.79″ 16,800 84,000 6
18528 8″ 10.83″ 12.91″ 8.46″ 4″ 2.17″ 6.5″ 0.79″ 22,800 114,000 15
18530 10″ 13.9″ 15.92″ 10.39″ 5″ 2.76″ 8.23″ 0.79″ 28,400 142,000 24
18532 12″ 15.75″ 19.02″ 12.6″ 6.77″ 3.31″ 9.06″ 0.79″ 34,200 171,000 32
