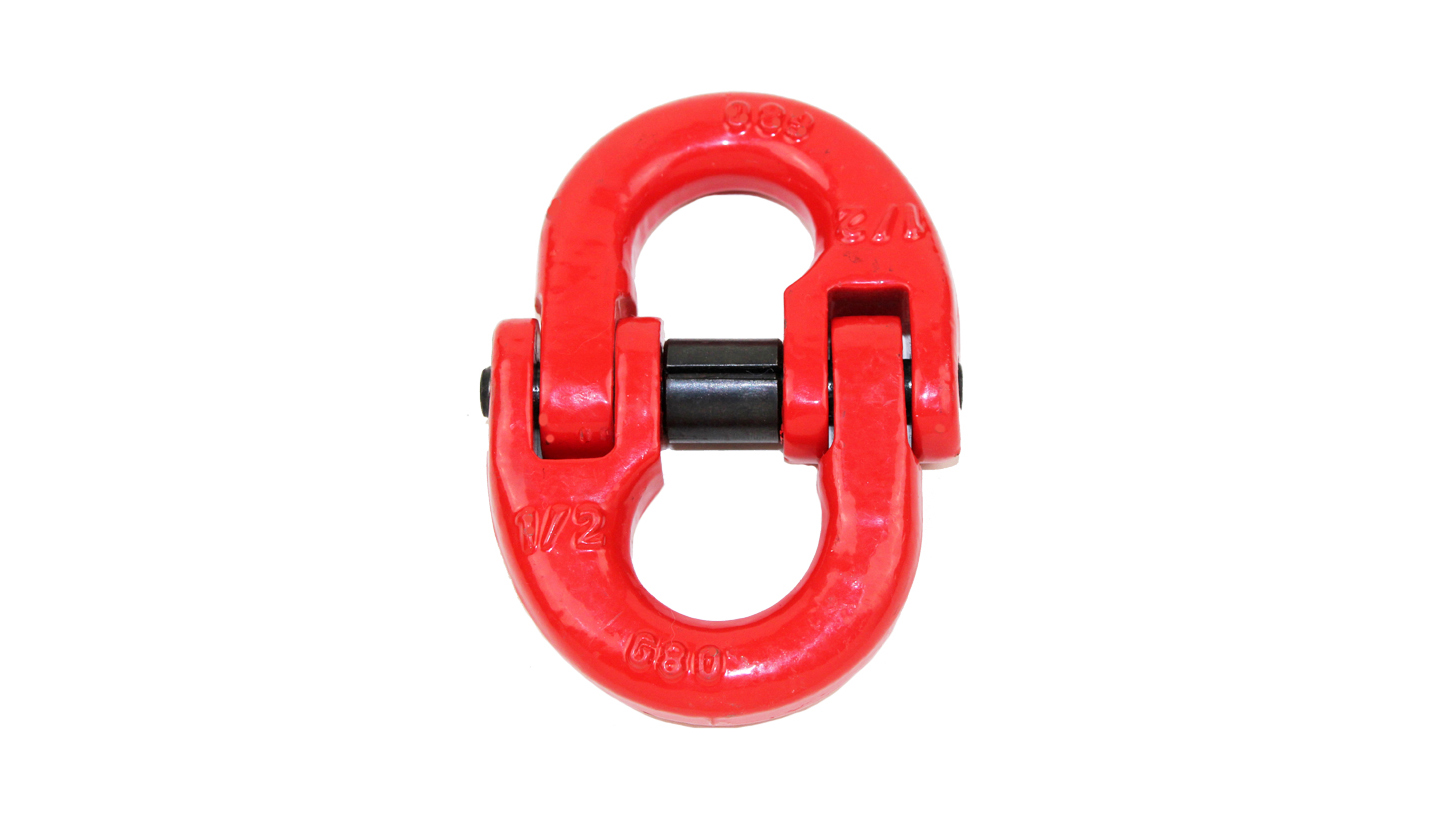

G80 Connecting Link / Hammerlock

CAD$8.60CAD$29.40

Available Options:

G80 Connecting Link

Safety Factor 4:1

W.L.L. = Working Load Limit

Part No. W.L.L (lbs) Trade Size (inch) A (mm) L (mm) K (mm) ø (mm) Weight (lbs)
33514 3,500 1/4″ 16.2 58 42 7 0.31
33556 4,500 5/16″ 20.5 75 57 8.5 0.44
33538 7,100 3/8″ 28 89 68 10.8 0.84
33512 12,000 1/2″ 30 116 83 15 1.67
33513 18,100 5/8″ 36.3 144 105 19.8 2.42

Additional information

Item No.

Size
