Breaking Strength (B/S) = 3  X Working Load Limit (WLL)

Alternate hardware available, see hardware section of catalogue

Webbing straps must be protected when used on rough or sharp objects.  Straps that are cut, worn or otherwise damaged should not be used.

A strap is only as strong as its weakest component.

Winches

All winches are designed to meet Department of Transportation (DOT) and Web Sling & Tie-Down Association Standards (WSTDA).  Webbing winches are made with different base configurations to suit your various load requirements for flatbed applications and feature seamless solid steel mandrels and high strength alloy pawl pins.

All winches are produced as right-hand models.

Weld-On Winches

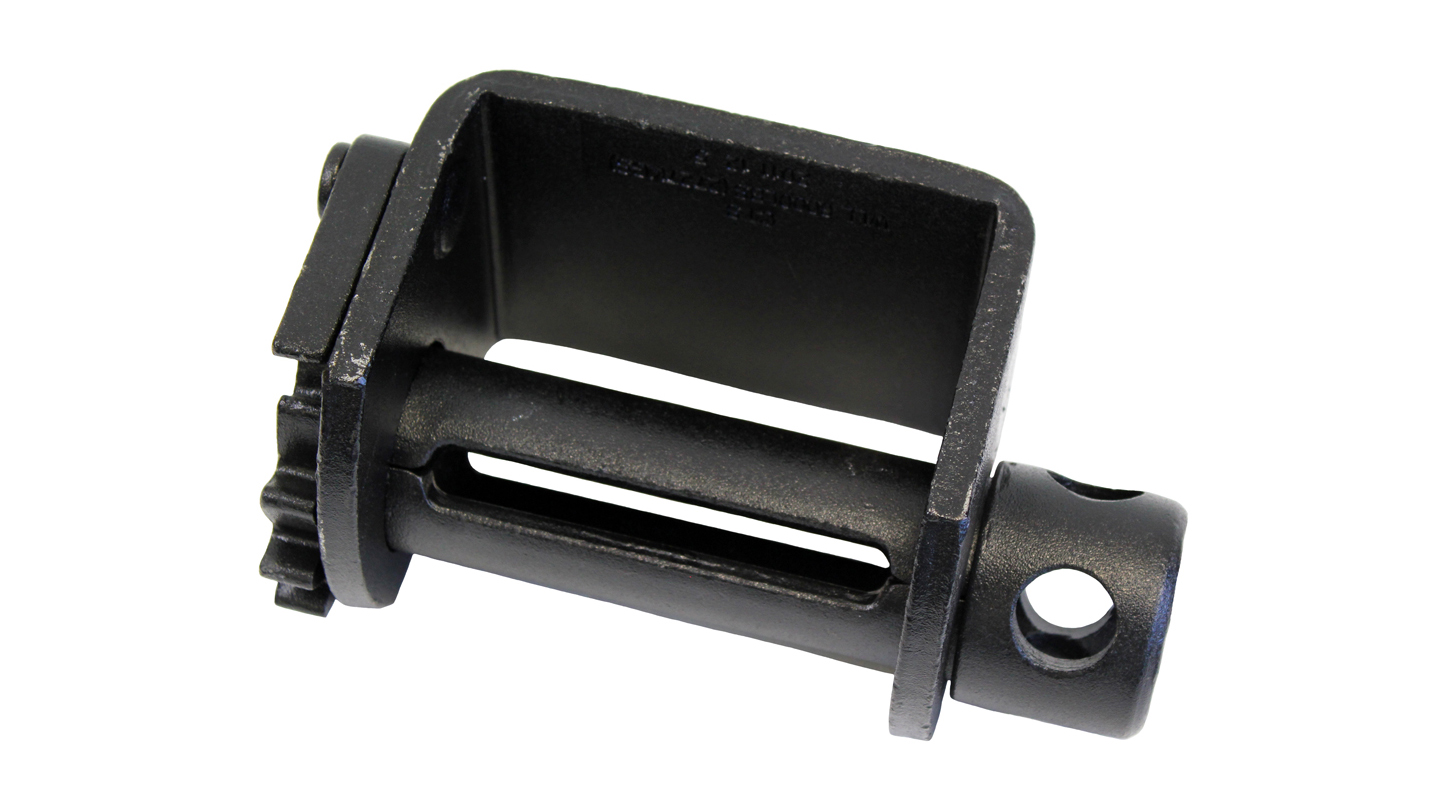

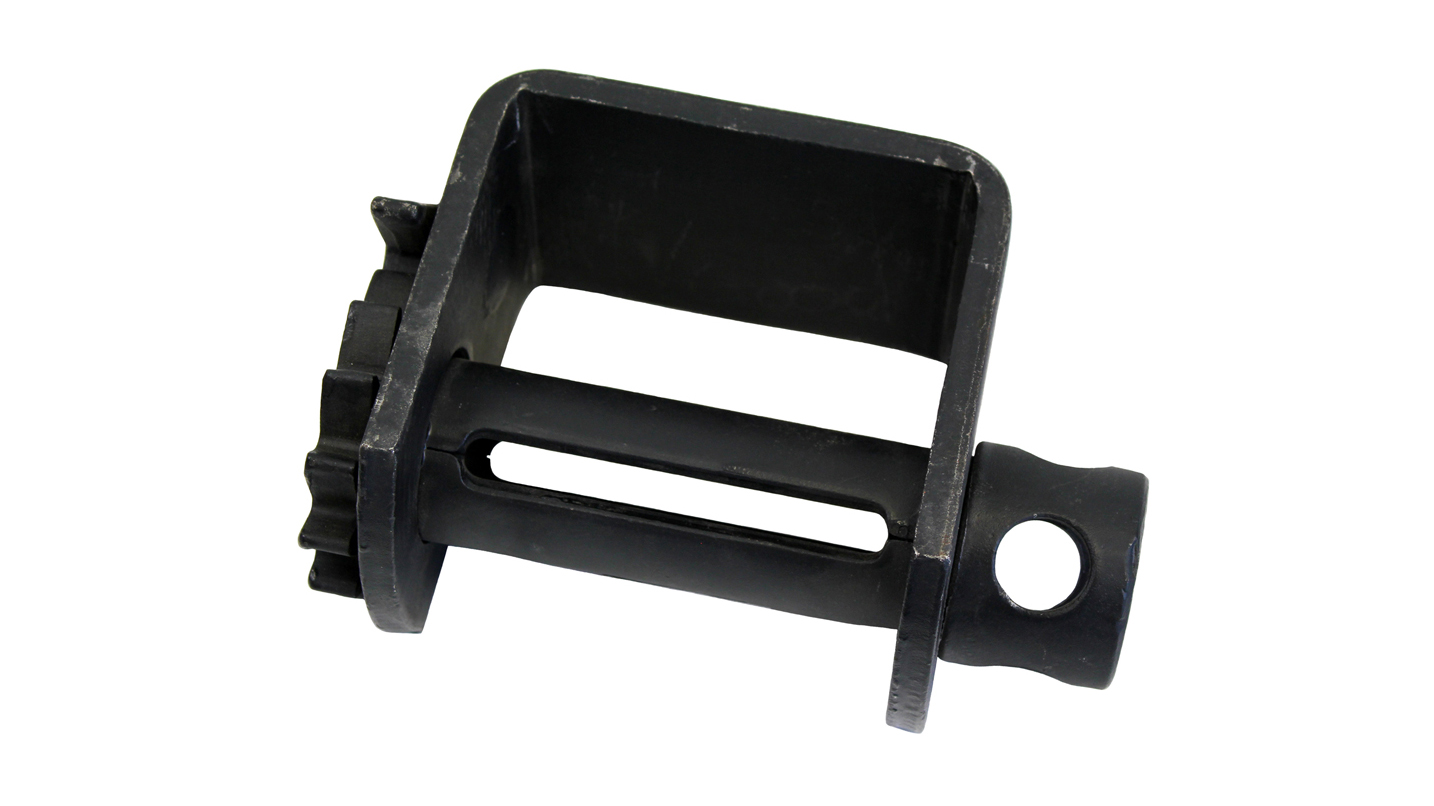

91200 - Standard winch	91203 - 3 Bar winch	91204 - Low Profile winch
Working Load Limit: 6,000lbs (2,727kgs)	Working Load Limit: 5,000lbs (2,272kgs)	Working Load Limit: 6,000lbs (2,727kgs)
B/S: 18,000lbs (8,181kgs)	B/S: 15,000lbs (6,818kgs)	B/S: 18,000lbs (8,181kgs)

Sliding Winches, Bottom Mount

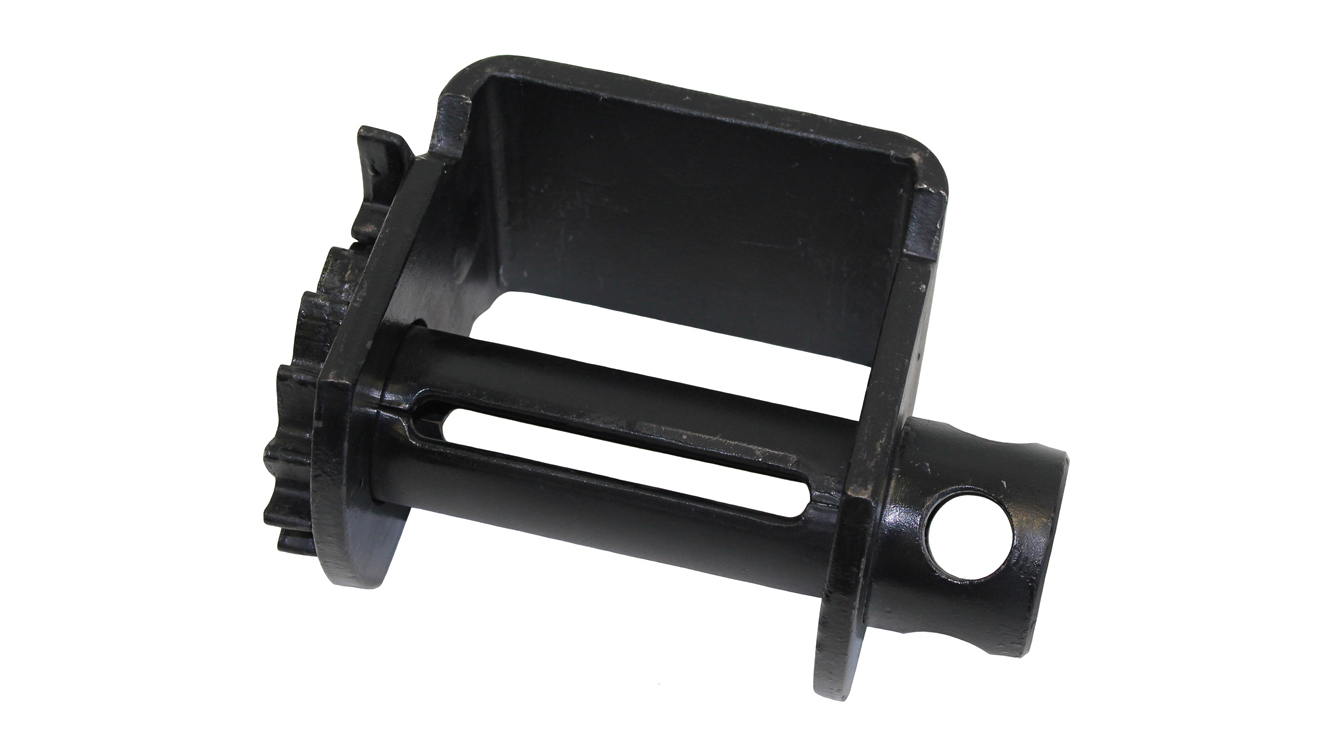

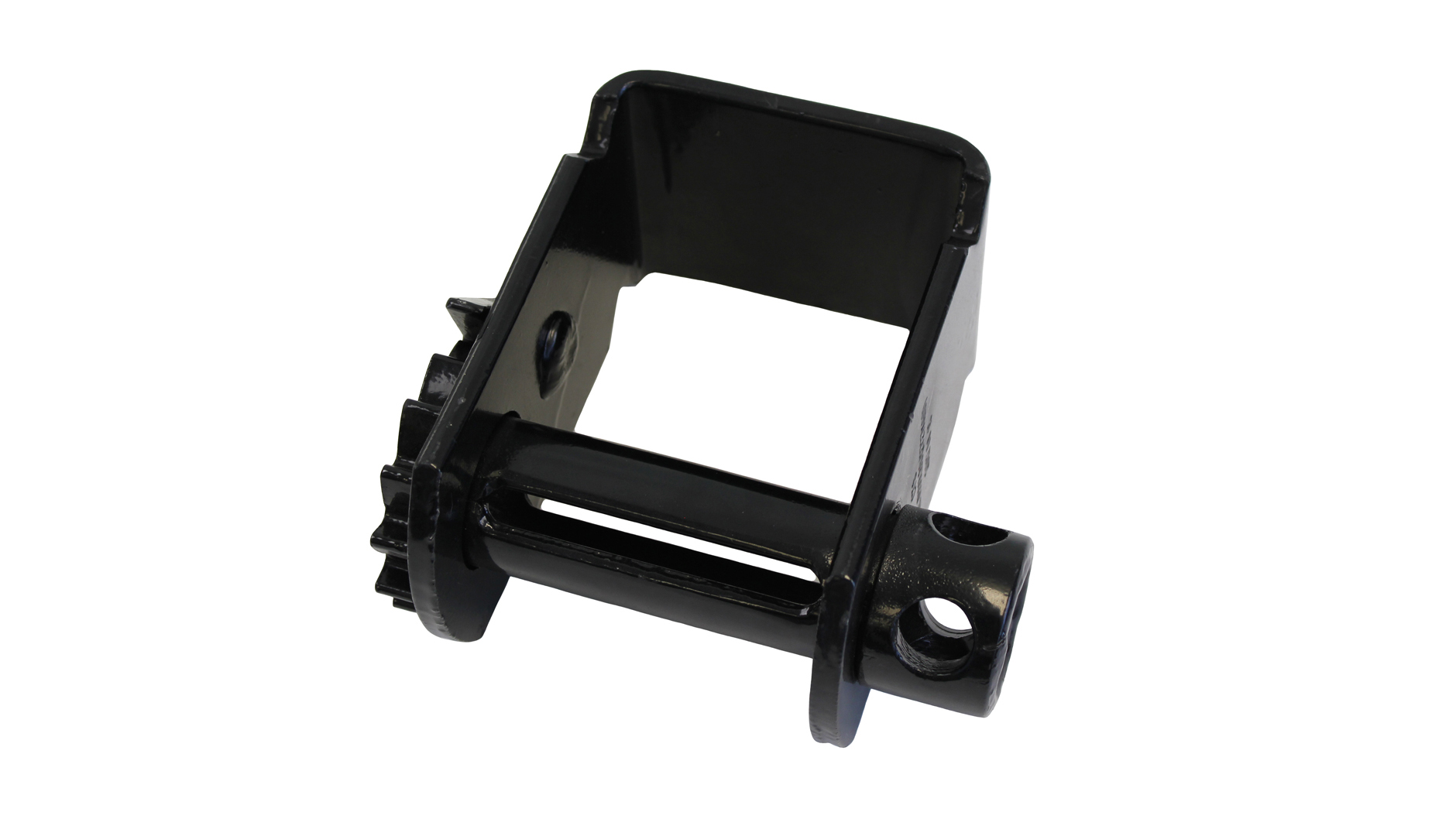

91300 - Standard winch	91301 - Low Profile winch	91600 - Storable winch
Working Load Limit: 6,000lbs (2,727kgs)	Working Load Limit: 6,000lbs (2,727kgs)	Working Load Limit: 6,000lbs (2,727kgs)
B/S: 18,000lbs (8,181kgs)	B/S: 18,000lbs (8,181kgs)	B/S: 18,000lbs (8,181kgs)

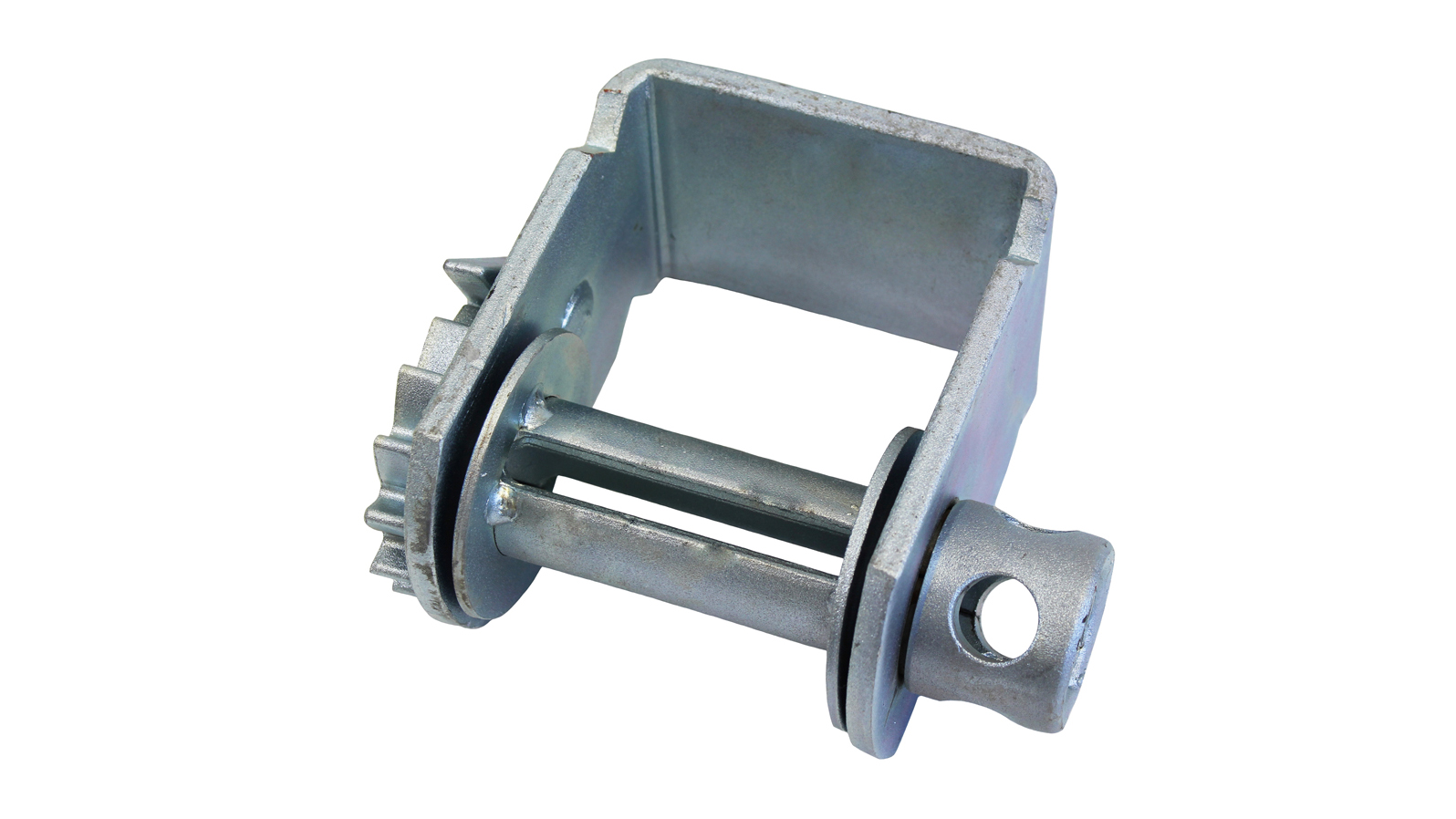

91303 - with washers (zinc plated)	91307- Cable winch
Working Load Limit: 6,000lbs (2,727kgs)	Working Load Limit: 6,000lbs (2,727kgs)
B/S: 18,000lbs (8,181kgs)	B/S: 18,000lbs (8,181kgs)

Portable Winches

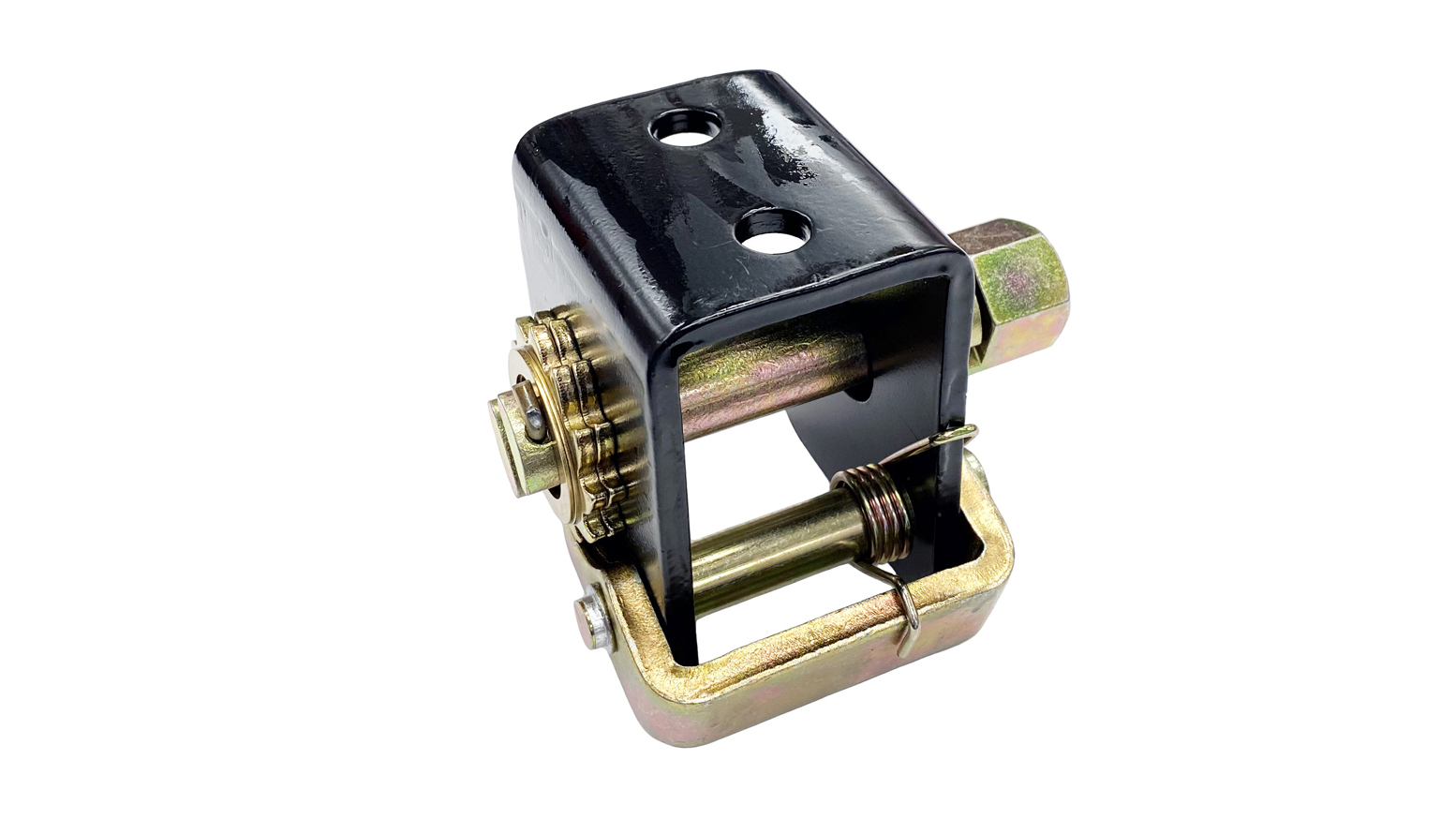

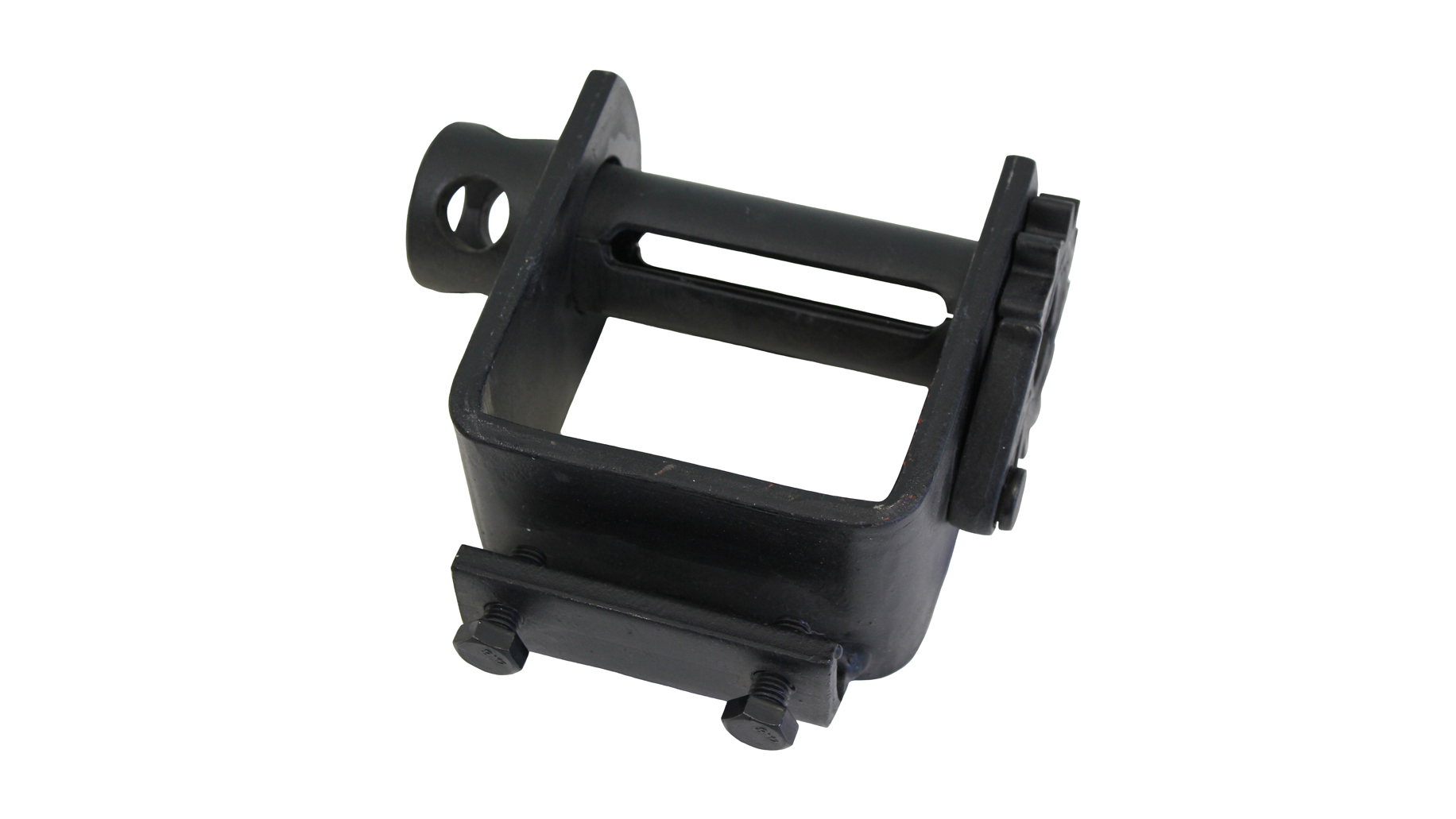

91400 - Standard	71100 - Lashing
Working Load Limit: 5,000lbs (2,272kgs)	Working Load Limit: 2,933lbs (1,333kgs)
B/S: 15,000lbs (6,818kgs)	B/S: 8,800lbs (4,000kgs)

NOTE:  It is the owner's and user's responsibility to determine suitability of a product for any particular use.  Remember, all strap assemblies or systems are as strong as their weakest component including the point of attachment.

Winch Bars

Winch bars - Constructed of high strength alloy steel and feature a non-slip handle for safety plus a tapered nose piece that will fit into any winch.

Combination winch bars - Designed for use in tightening chain binders.

70900 - Standard winch bar (chrome plated)

70904 - Standard winch bar (black painted)

70901 - Combination winch bar (chrome plated)

70902 - Combination winch bar (chrome plated)

WARNING: When tightening or loosening winches, always maintain a firm grip on the winch bar.  Never release a winch bar without checking the pawl to ensure that it is fully engaged between ratchet teeth.  Releasing a winch bar without the pawl being properly engaged can cause serious injury to the user or bystanders.  "Cheater Bars" (extender) shall not be used with the winch bars.  User shall stand clear of the winch bar handle during operation of the winch bar in case the winch bar slips.  The tip of the winch bar shall be inserted through both holes in the end cap to prevent the winch bar from slipping out and overloading.

Winch Tracks

Give your trailer more versatility with sliding winch track.  Weld it or bolt it below, on the side, or on top of your trailer surface.  Works with all of our sliding type winches.

140072 - 6 ft. winch track, (bare steel) weight: 38lbs

140073 - 6 ft. winch track, (zinc plated) weight: 38lbs
