Breaking Strength (B/S) = 3  X Working Load Limit (WLL)

Alternate hardware available, see hardware section of catalogue

Webbing straps must be protected when used on rough or sharp objects.  Straps that are cut, worn or otherwise damaged should not be used.

A strap is only as strong as its weakest component.

Winch Straps

All winch straps are made with heavy duty, wear and weather-resistant load control straps, dependable hardware to meet the demanding conditions of flatbed operations.  All winch straps are labeled to meet DOT regulations and WSTDA recommended.

• Alternate hardware and custom lengths are available upon requested.
• These straps are made from minimum breaking strength of 6,000lbs per inch polyester webbing.

WARNING

• Breaking Strength (B/S) = 3  X Working Load Limit (W.L.L)
• Do not use strap if there are any signs of cut webbing, heat or chemical damage.
• Do not attempt to use strap above rated capacity.
• Alternate hardware available, see hardware section of catalogue
• Webbing straps must be protected when used on rough or sharp objects.  Straps that are cut, worn or otherwise damaged should not be used.
• A strap is only as strong as its weakest component.

NOTE

• Hardware strength may be reduced if load path in the area of hardware is not in a straight line.
• Working load requirements should be evaluated by user before selecting appropriate hardware and strap assemblies.
• Remember, All strap assemblies or systems are as strong as their weakest component including the point of attachment.

2" Winch Straps, webbing b/s: 12,000lbs

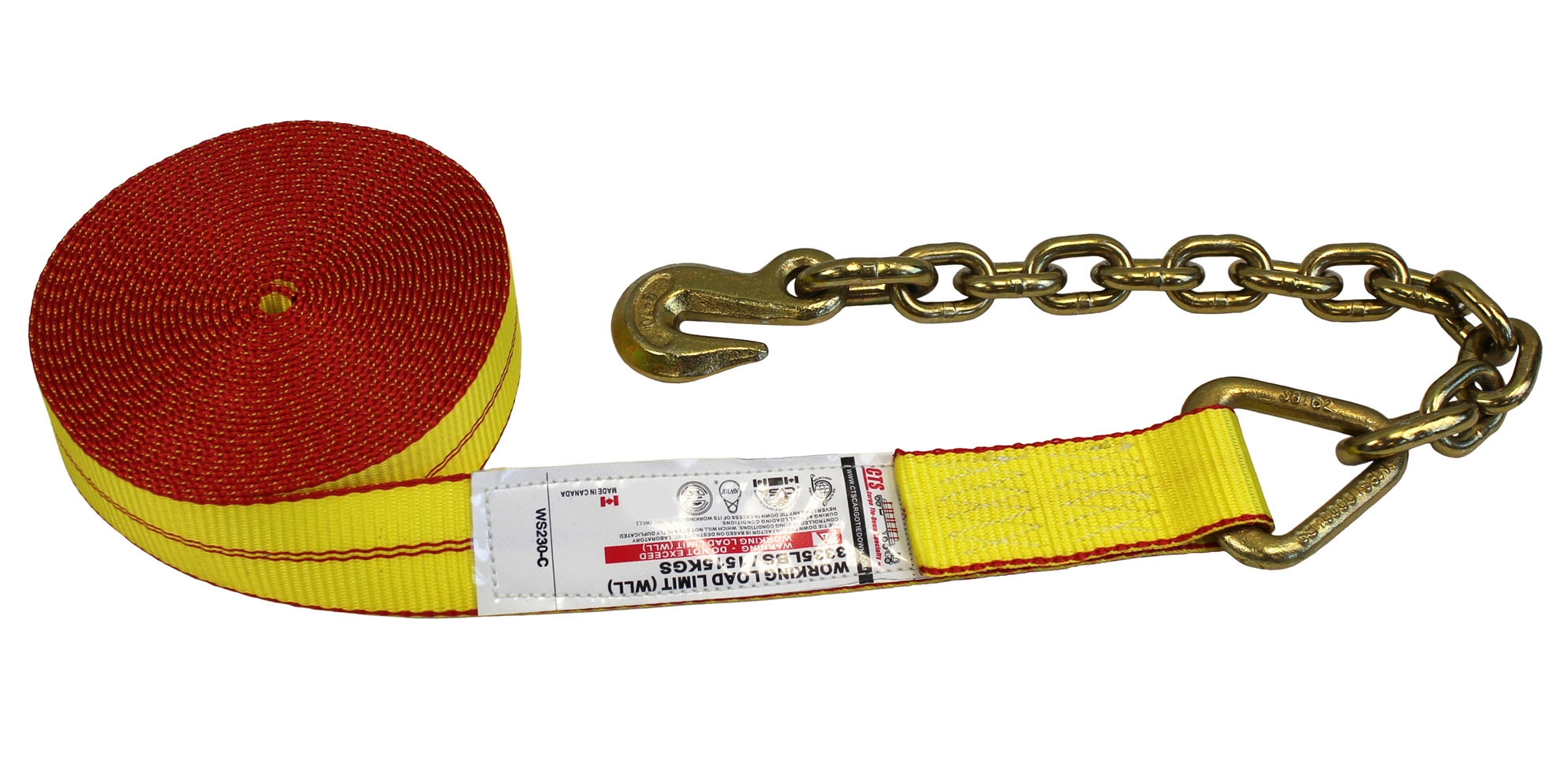

2" Winch Strap w/-38162 chain anchor Working Load Limit: 3,335lbs (1,515kgs) B/S: 10,000lbs (4,545kgs)

Part No. Strap Length WS216-C 16FT WS220-C 20FT WS225-C 25FT WS230-C 30FT

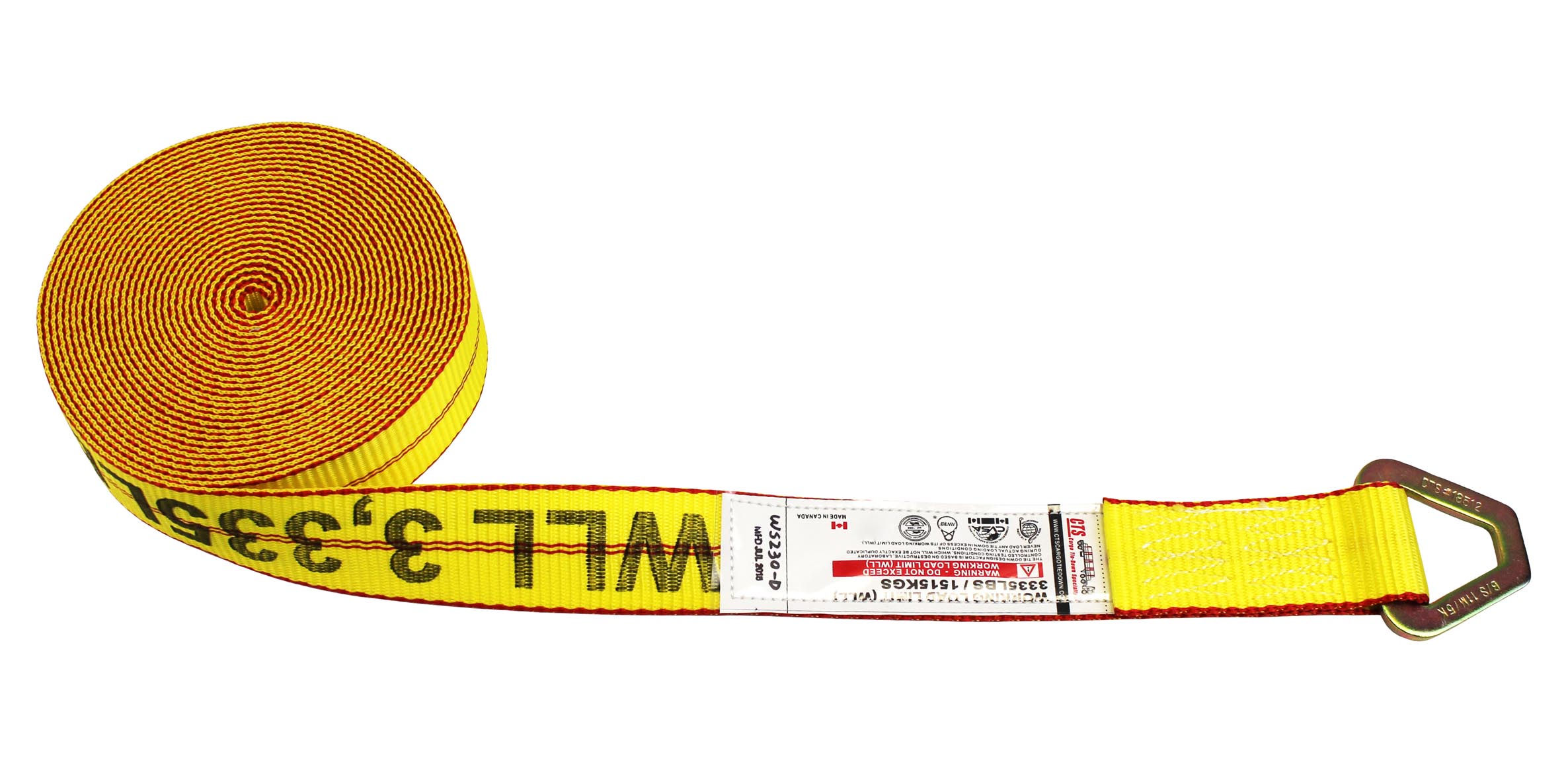

2" Winch Strap w/-18512 delta ring Working Load Limit: 3,335lbs (1,515kgs) B/S: 10,000lbs (4,545kgs)

Part No. Strap Length WS216-D 16FT WS220-D 20FT WS225-D 25FT WS230-D 30FT

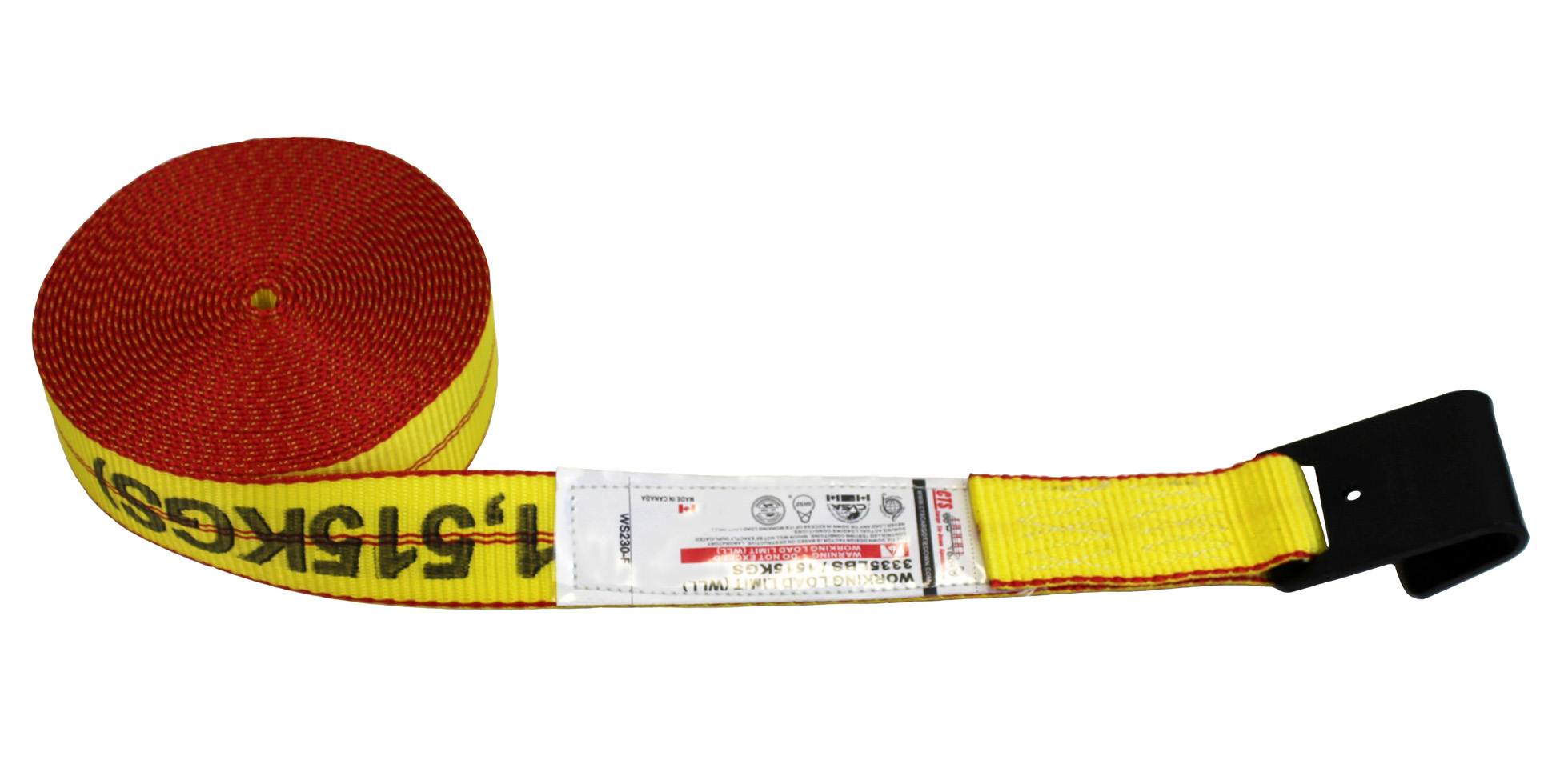

2" Winch Strap w/-18300 flat hook Working Load Limit: 3,335lbs (1,515kgs) B/S: 10,000lbs (4,545kgs)

Part No. Strap Length WS216-F 16FT WS220-F 20FT WS225-F 25FT WS230-F 30FT

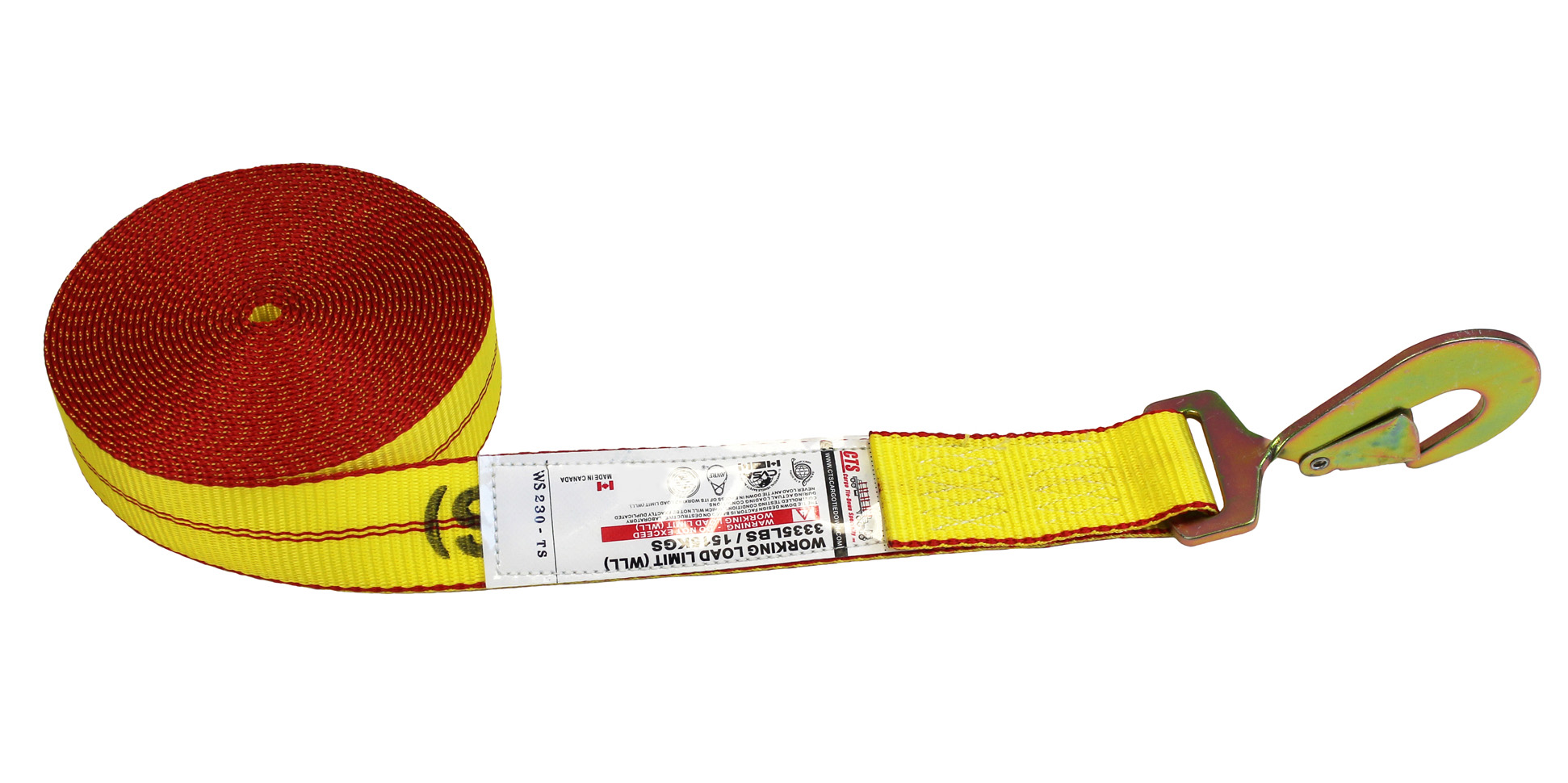

2" Winch Strap w/-18420 twisted snap hook Working Load Limit: 3,335lbs (1,515kgs) B/S: 10,000lbs (4,545kgs)

Part No. Strap Length WS216-TS 16FT WS220-TS 20FT WS225-TS 25FT WS230-TS 30FT

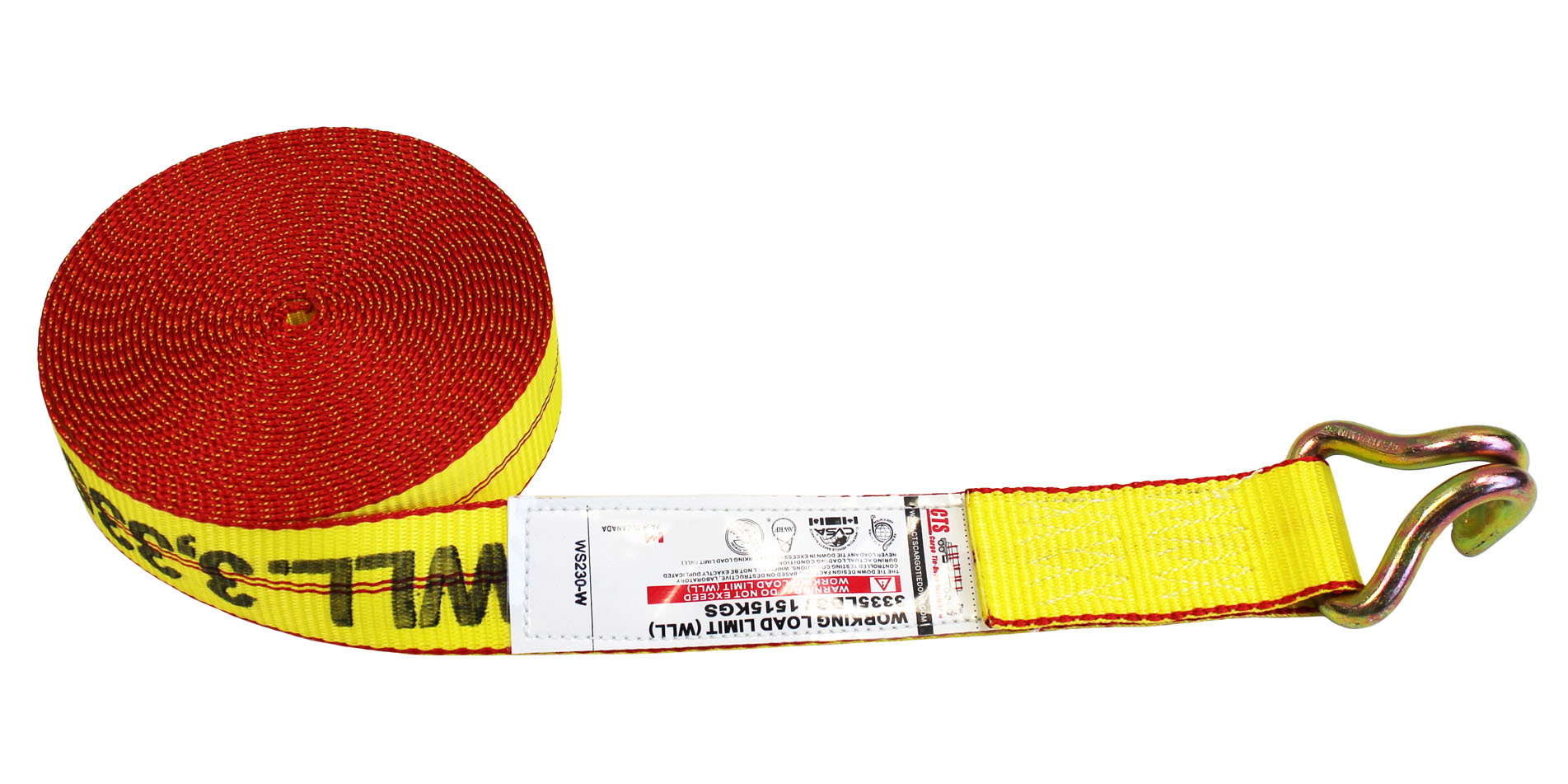

2" Winch Strap w/-18200 wire hook (7/16") Working Load Limit: 3,335lbs (1,515kgs) B/S: 10,000lbs (4,545kgs)

Part No. Strap Length WS216-W 16FT WS220-W 20FT WS225-W 25FT WS230-W 30FT

2" Winch Strap w/-18202 wire hook (3/8") Working Load Limit: 1,666lbs (757kgs) B/S: 5,000lbs (2,272kgs)

Part No. Strap Length WS216-W3 16FT WS220-W3 20FT WS225-W3 25FT WS230-W3 30FT

3" Winch Straps, webbing b/s: 18,000lbs

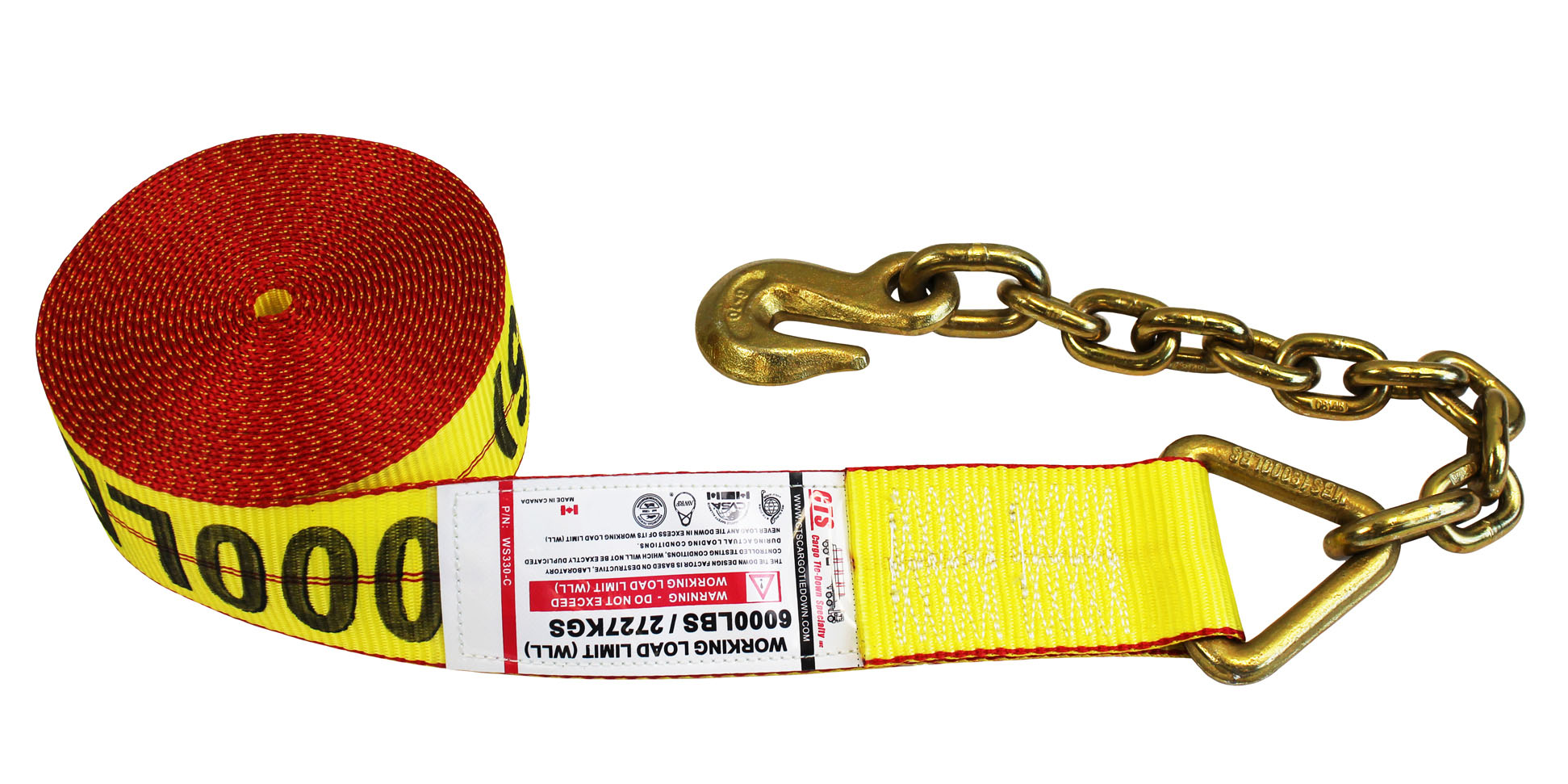

3" Winch Strap w/-38613 chain anchor (3/8") Working Load Limit: 6,000lbs (2,727kgs) B/S: 18,000lbs (8,181kgs)

Part No. Strap Length WS316-C 16FT WS320-C 20FT WS325-C 25FT WS330-C 30FT

3" Winch Strap w/-38165-5 chain anchor (5/16") Working Load Limit: 5,400lbs (2,454kgs) B/S: 16,200lbs (7,363kgs)

Part No. Strap Length WS316-CS 16FT WS320-CS 20FT WS325-CS 25FT WS330-CS 30FT

3" Winch Strap w/-18440 flat hook Working Load Limit: 5,000lbs (2,272kgs) B/S: 15,000lbs (6,818kgs)

Part No. Strap Length WS316-F 16FT WS320-F 20FT WS325-F 25FT WS330-F 30FT

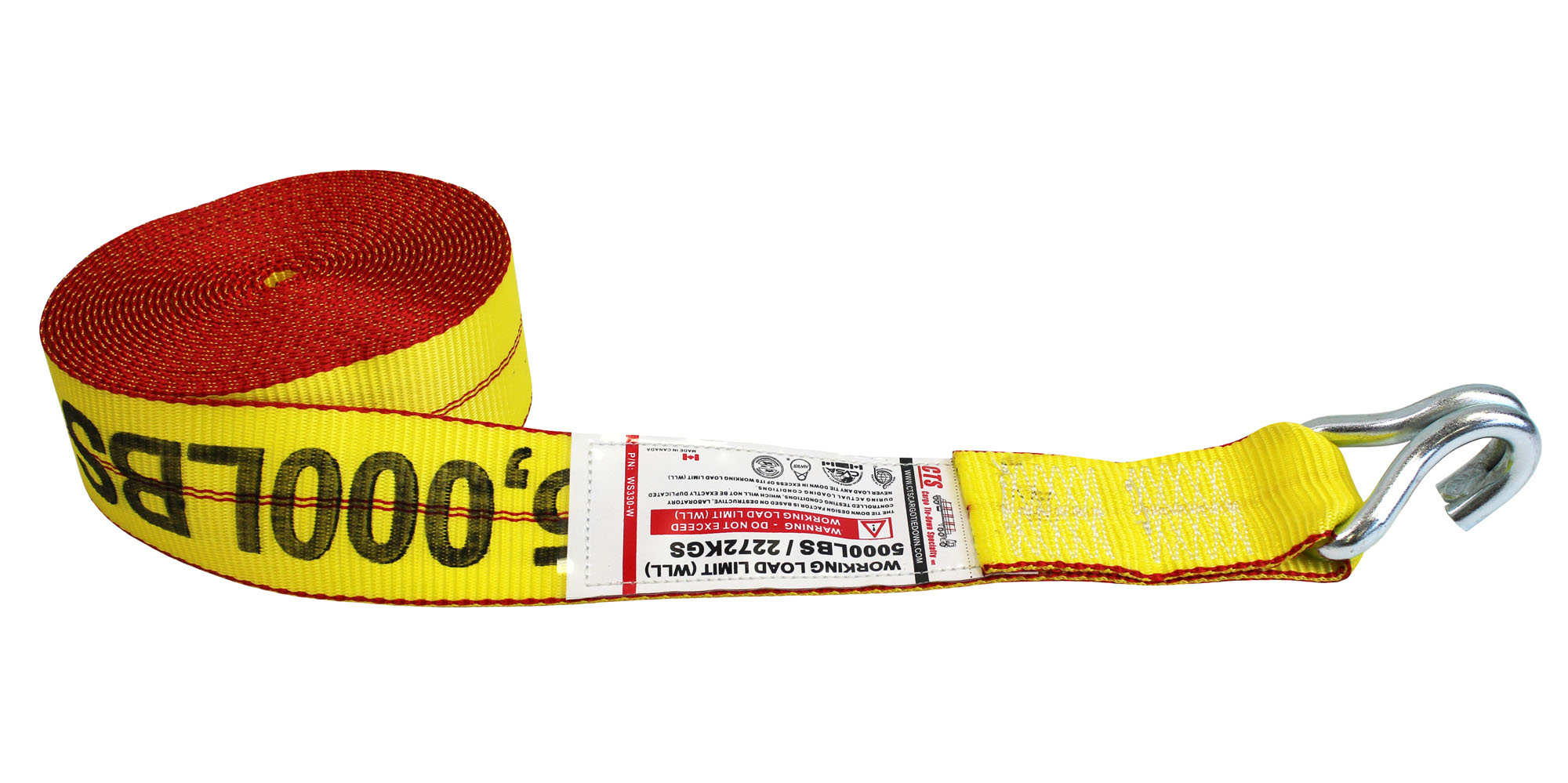

3" Winch Strap w/-18201 wire hook (1/2") Working Load Limit: 5,000lbs (2,272kgs) B/S: 15,000lbs (6,818kgs)

Part No. Strap Length WS316-W 16FT WS320-W 20FT WS325-W 25FT WS330-W 30FT

3" Winch Strap w/-18513 D ring Working Load Limit: 6,000lbs (2,727kgs) B/S: 18,000lbs (8,181kgs)

Part No. Strap Length WS316-D 16FT WS320-D 20FT WS325-D 25FT WS330-D 30FT

4" Winch Straps, webbing b/s: 24,000lbs

4" Winch Strap w/-38614 chain anchor (3/8") Working Load Limit: 6,600lbs (3,000kgs) B/S: 20,000lbs (9,090kgs)

Part No. Strap Length WS416-C 16FT WS420-C 20FT WS425-C 25FT WS430-C 30FT

4" Winch Strap w/-18614 delta ring Working Load Limit: 6,600lbs (3,000kgs) B/S: 20,000lbs (9,090kgs)

Part No. Strap Length WS416-D 16FT WS420-D 20FT WS425-D 25FT WS430-D 30FT

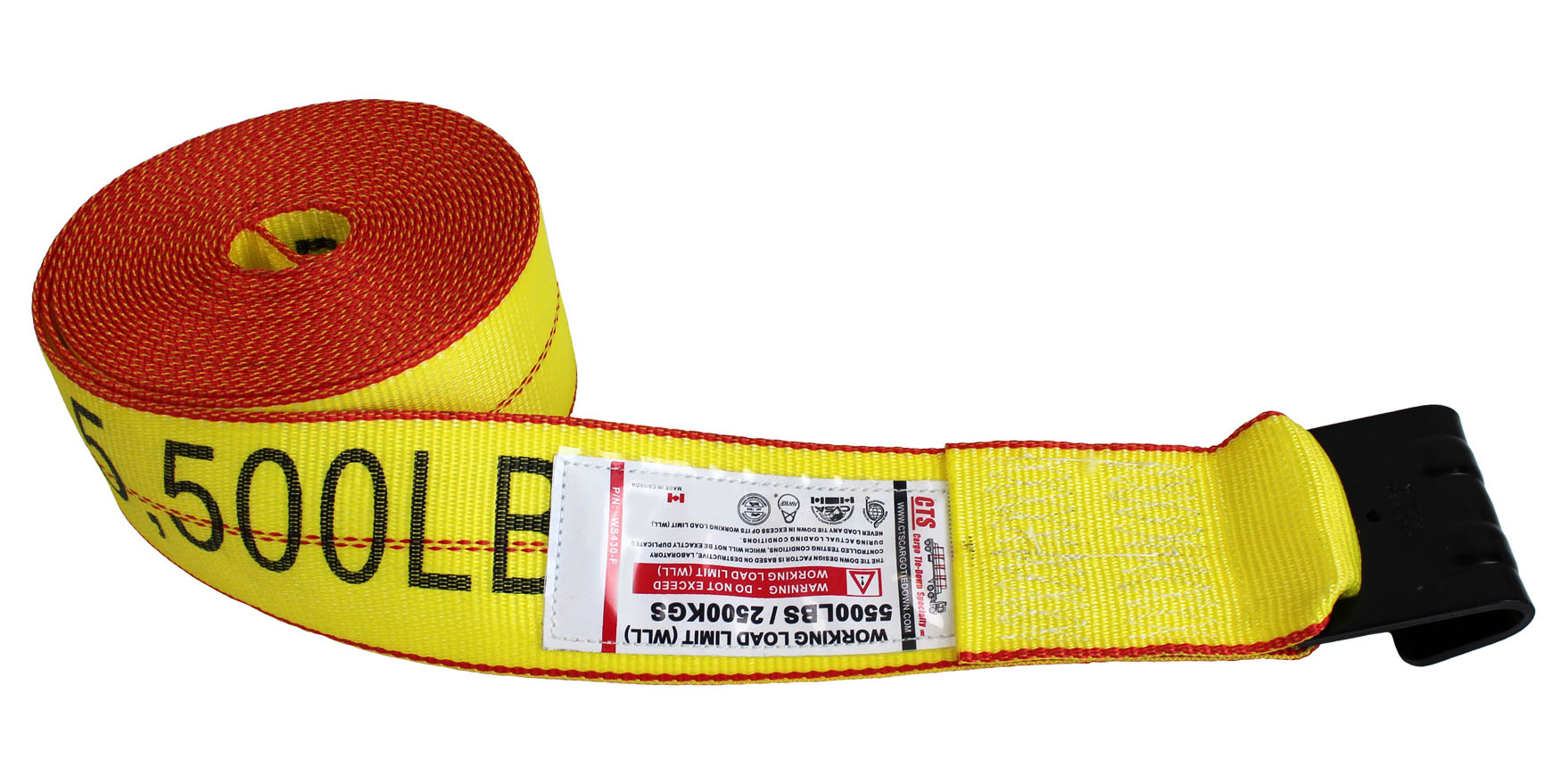

4" Winch Strap w/-18310 flat hook Working Load Limit: 5,500lbs (2,500kgs) B/S: 16,500lbs (7,500kgs)

Part No. Strap Length WS416-F 16FT WS420-F 20FT WS425-F 25FT WS430-F 30FT

4" Winch Strap w/-18100 wire hook Working Load Limit: 6,600lbs (3,000kgs) B/S: 20,000lbs (9,090kgs)

Part No. Strap Length WS416-W 16FT WS420-W 20FT WS425-W 25FT WS430-W 30FT

4" Winch Strap w/-38150 grab hook Working Load Limit: 5,400lbs (2,454kgs) B/S: 16,200lbs (7,363gs)

Part No. Strap Length WS416-G 16FT WS420-G 20FT WS425-G 25FT WS430-G 30FT

4" Winch Strap w/-6" loop Working Load Limit: 6,000lbs (2,727kgs) B/S: 18,000lbs (8,181kgs)

Part No. Strap Length WS416-L 16FT WS420-L 20FT WS425-L 25FT WS430-L 30FT

Custom stencilling available upon request. Contact your Customer Service Representative for more details.
