Wheel Tie-Downs
Webbing Products Slings Hardware Truck Parts Pipe Hangers Safety & Accessories



Flat Bed Products ] Lap Belts ] Motorcycle/ATV Tie-Downs ] 1" Tie-Downs ] Ratchet Straps ] Interior Van ] [ Wheel Tie-Downs ] Auto Tie-Downs ] Cargo Nets ]



Breaking Strength (B/S) = 3  X Working Load Limit (WLL)

Alternate hardware available, see hardware section of catalogue

Webbing straps must be protected when used on rough or sharp objects.  Straps that are cut, worn or otherwise damaged should not be used.

A strap is only as strong as its weakest component.



WARNING

  • Always secure any vehicle for transport by four points to prevent movement.
  • Do not attempt to use strap above rated capacity.
  • Breaking Strength (B/S) = 3  X Working Load Limit (W.L.L)
  • Alternate hardware available, see hardware section of catalogue
  • Webbing straps must be protected when used on rough or sharp objects.  Straps that are cut, worn or otherwise damaged should not be used.
  • A strap is only as strong as its weakest component.
  • Custom stenciling available upon request.
  • Contact your Customer Service Representative for more details.


WT-1801     Adjustable 15" - 22" wheel tie-down w/-swivel J-hook


  • Working Load Limit :  3,335 lbs.
  • Assembly B/S:  10,000 lbs
  • Webbing B/S:  12,000 lbs.
  • Alternate hardware available

WT-1800-2     Adjustable 16" - 22" wheel tie-down w/-2 ratchet tail ends The most popular universal wheel tie-down assemblies we offer for any vehicle.  The basket style configuration has been designed to fit any size tire, even large once like those on vans and trucks.  Each unit comes complete with a webbing harness and two ratchet buckles for quick and easy tensioning.
  • Working Load Limit :  3,335 lbs.
  • Assembly B/S:  10,000 lbs
  • Webbing B/S:  12,000 lbs.
  • Alternate hardware available

WT-1800-1-P     Adjustable 16" - 22" wheel tie-down w/-1 ratchet tail ends

The most popular universal wheel tie-down assemblies we offer for any vehicle.  The basket style configuration has been designed to fit any size tire, even large once like those on an and trucks.  Each unit comes complete with a 12' strap with hook on one end + cross piece and one ratchet buckle for quick and easy tensioning.
  • Working Load Limit :  3,335 lbs.
  • Assembly B/S:  10,000 lbs
  • Webbing B/S:  12,000 lbs.
  • Alternate hardware available

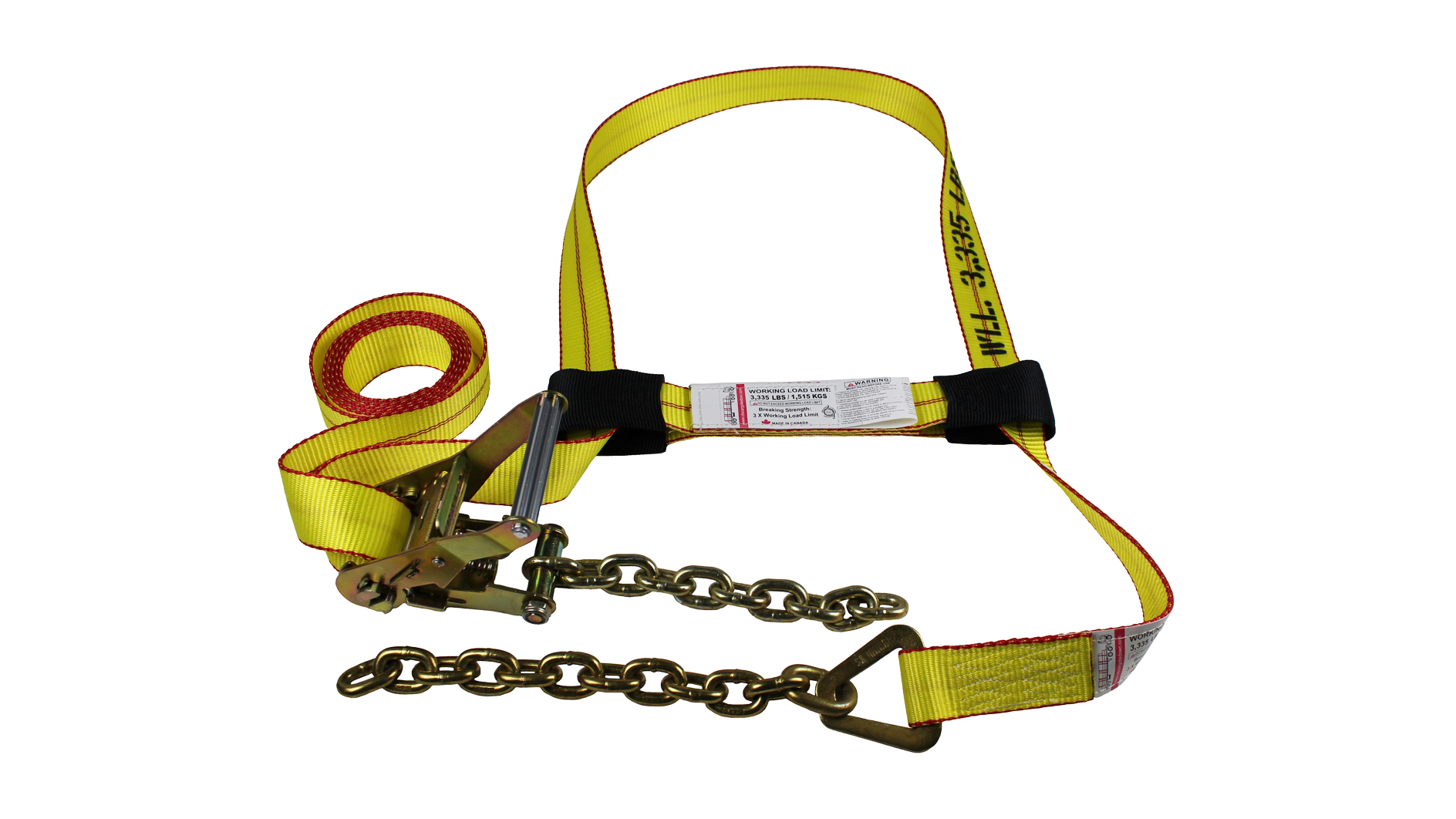

WT-1900       Adjustable wheel tie-down w/-12" chain This system greatly reduces the risk of damage to the vehicle because the tire harnesses are completely metal free.  Ratchets attach away from the vehicle and work to tension around the tires allowing the vehicle to ride on its own suspension eliminating shock transfer to the vehicle.
  • Working Load Limit :  3,335 lbs.
  • Assembly B/S:  10,000 lbs
  • Webbing B/S:  12,000 lbs.
  • Alternate hardware available

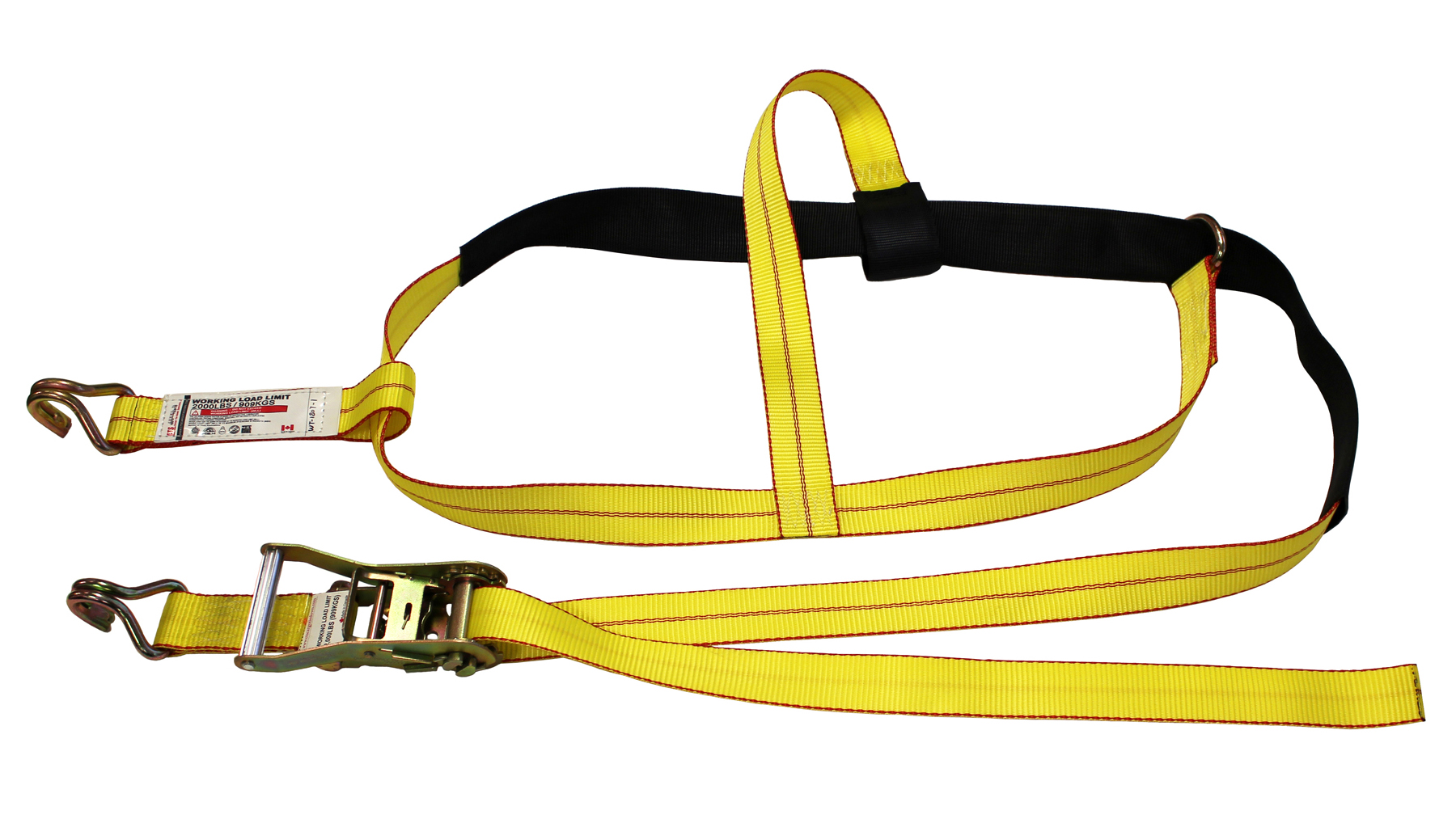

WT-1807-1       Adjustable wheel tie-down with ratchet tail end Wraps over the tire and secures with a ratchet on one end and a wire hook on the other end.  Includes a wear sleeve to protect the straps against damage.  This system come with floating D ring.
  • Working Load Limit :  1,666 lbs.
  • Assembly B/S:  5,000 lbs
  • Webbing B/S:  12,000 lbs.
  • Alternate hardware available

WT-1807       Adjustable 16" - 20" wheel tie-down (no ratchet end)

Part No: 70204 - ratchet buckle with chain link sold separately

This system greatly reduces the risk of damage to the vehicle because the tire harnesses are completely metal free.  Ratchets attach away from the vehicle and work to tension around the tires allowing the vehicle to ride on its own suspension eliminating shock transfer to the vehicle.
  • Working Load Limit :  1,666 lbs.
  • Assembly B/S:  5,000 lbs
  • Webbing B/S:  12,000 lbs.
  • Alternate hardware available

WT-1600-S        16" wheel tie-down w/-ratchet tail end This very popular style of wheel tie-down straps for quick and easy vehicle loading.  Wraps over the tire and secures with a ratchet on one end and a wire hook on the other end.
  • Working Load Limit :  1,666 lbs.
  • Assembly B/S:  5,000 lbs
  • Webbing B/S:  12,000 lbs.
  • Alternate hardware available




WT-1604       16" wheel tie-down w/-E fitting E/A style wheel tie-downs are absolutely the best method of securing vehicles inside a trailer.  E/A track tie-downs work with logistic track installed on the floor of your trailer.  Track is easy to mount and can be screwed or welded in place.  Low profile track allows vehicles to be driven right on top and provides and anchor point right where you need it.
  • Working Load Limit :  1,460 lbs.
  • Assembly B/S:  4,500 lbs
  • Webbing B/S:  12,000 lbs.
  • Alternate hardware available

WT-1803       15" - 16" wheel tie-down w/-wire hook & delta ring Convert your rig's existing chain tie-down into a soft tie-down system.  This is the harness of choice for haulers that move a wide variety of vehicles.  In just a few seconds, the WT1803 adapts your existing chain tie-down system into an "over-the-wheel" strap system.
  • Working Load Limit :  1,666 lbs.
  • Assembly B/S:  5,000 lbs
  • Webbing B/S:  12,000 lbs.
  • Alternate hardware available

WT-1809-W       Adjustable Wheel Tie-Down w/-wire hook, c/w 3" wide cross strap


  • 3" wide cross strap
  • Fit 15"-22" wheel
  • All straps are slidible for universal fit
  • Working Load Limit :  2,000 lbs.
  • Assembly B/S:  6,000 lbs
  • Webbing B/S:  12,000 lbs.
  • Alternate hardware available

WT-1607-W3-S       16" wheel tie-down, no ratchet tail end

Wraps over the tire and secures with a ratchet on one end and a wire hook on the other end.
  • Working Load Limit :  1,666 lbs.
  • Assembly B/S:  5,000 lbs
  • Webbing B/S:  12,000 lbs.
  • Alternate hardware available
  • WT-1607-W3-L  18" wheel tie-down

WT-1900-F       Lasso straps with flat hook or wire hook

Strap "lassos" or loops around the tire.  Ratchet buckle affixes to the wheel fork, adjustable loop.

Fit 15"-19" wheel

  • Working Load Limit :  2,000 lbs.
  • Assembly B/S:  6,000 lbs
  • Webbing B/S:  12,000 lbs.
  • Alternate hardware available

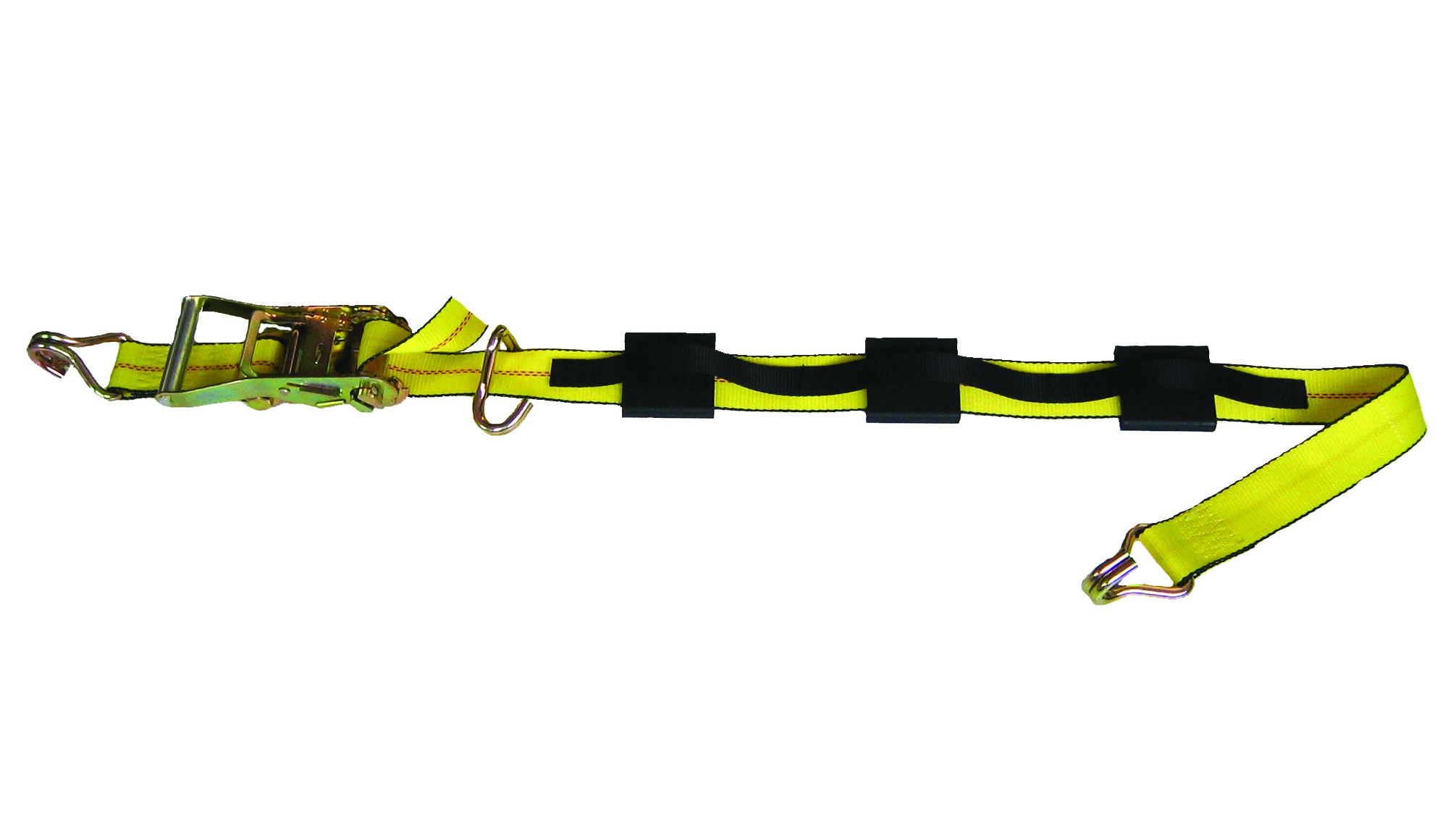

WT-1808      15" - 22" adjustable wheel tie-down

These stand alone securements complete with ratchet tensioners, are designed to anchor to standard auto hauler.  When utilized properly, these assemblies are easy to secure any vehicle safely, securely and damage free.  These are especially useful to secure vehicles with low ground effects.

  • Working Load Limit :  2,000 lbs.
  • Assembly B/S:  6,000 lbs
  • Webbing B/S:  12,000 lbs.
  • Alternate hardware available

WT-1808-SVH     15" - 22 adjustable wheel tie-down w/-swivel hooks (38185)

  • Fit 15"-22"
  • Working Load Limit :  2,000 lbs.
  • Assembly B/S:  6,000 lbs
  • Webbing B/S:  12,000 lbs.
  • Alternate hardware available






WT-1808-AD     15" - 22 adjustable wheel tie-down w/-wire hooks

  • Fit 15"-22"
  • Working Load Limit :  2,000 lbs.
  • Assembly B/S:  6,000 lbs
  • Webbing B/S:  12,000 lbs.
  • Alternate hardware available




     10ft. wheel tie-down with one fixed wire hook + two floating hooks

WT-1806-5

  • 7/16" wire hook
  • Working Load Limit :  3,335 lbs.
  • Assembly B/S:  10,000 lbs
  • Webbing B/S:  12,000 lbs.
  • Alternate hardware or length available



WT-1806-6

  • 3/8" wire hook
  • Working Load Limit :  2,000 lbs.
  • Assembly B/S:  6,000 lbs
  • Webbing B/S:  12,000 lbs.
  • Alternate hardware or length available




WT-1603       Rim wheel tie-down

  • Working Load Limit : 1,666 lbs.
  • Assembly B/S:  5,000 lbs
  • Webbing B/S:  12,000 lbs.
  • Alternate hardware available

Tie-Down bar for auto transporters (chrome plated)

Designed to fit into the chain ratchets found on auto transporters.  Chrome plated for weather resistance and hardened for extra strength and durability.  A knurled grip has been included for added safety.

70906 - 24"

70905 - 28"

70907 - 36"







     70910      Fiberglass Measuring Stick
  • Measures heights from 5'10" to 15'
  • Lightweight, bright yellow non-conductive fiberglass construction.
  • Twisted-lock shaft stabilizes this measuring stick when extended.
  • The 4' hinged horizontal rod helps you adjust your sightline, allowing you to make more accurate measurements.
  • Weight: 3.0lbs




   NOTE

  • It is the owner's and user's responsibility to determine suitability of a product for any particular use.
  • Remember, All strap assemblies or systems are as strong as their weakest component including the point of attachment.
