Breaking Strength (B/S) = 3 X Working
Load Limit (WLL)
Alternate hardware available, see hardware
section of catalogue
Webbing straps must be protected when used on
rough or sharp objects. Straps that are cut, worn or otherwise damaged
should not be used.
A strap is only as strong as its weakest
component.
¡@
| |
Weld-On D rings
 |
 |
 |
| 85002 -
1/2" bolt-on D ring |

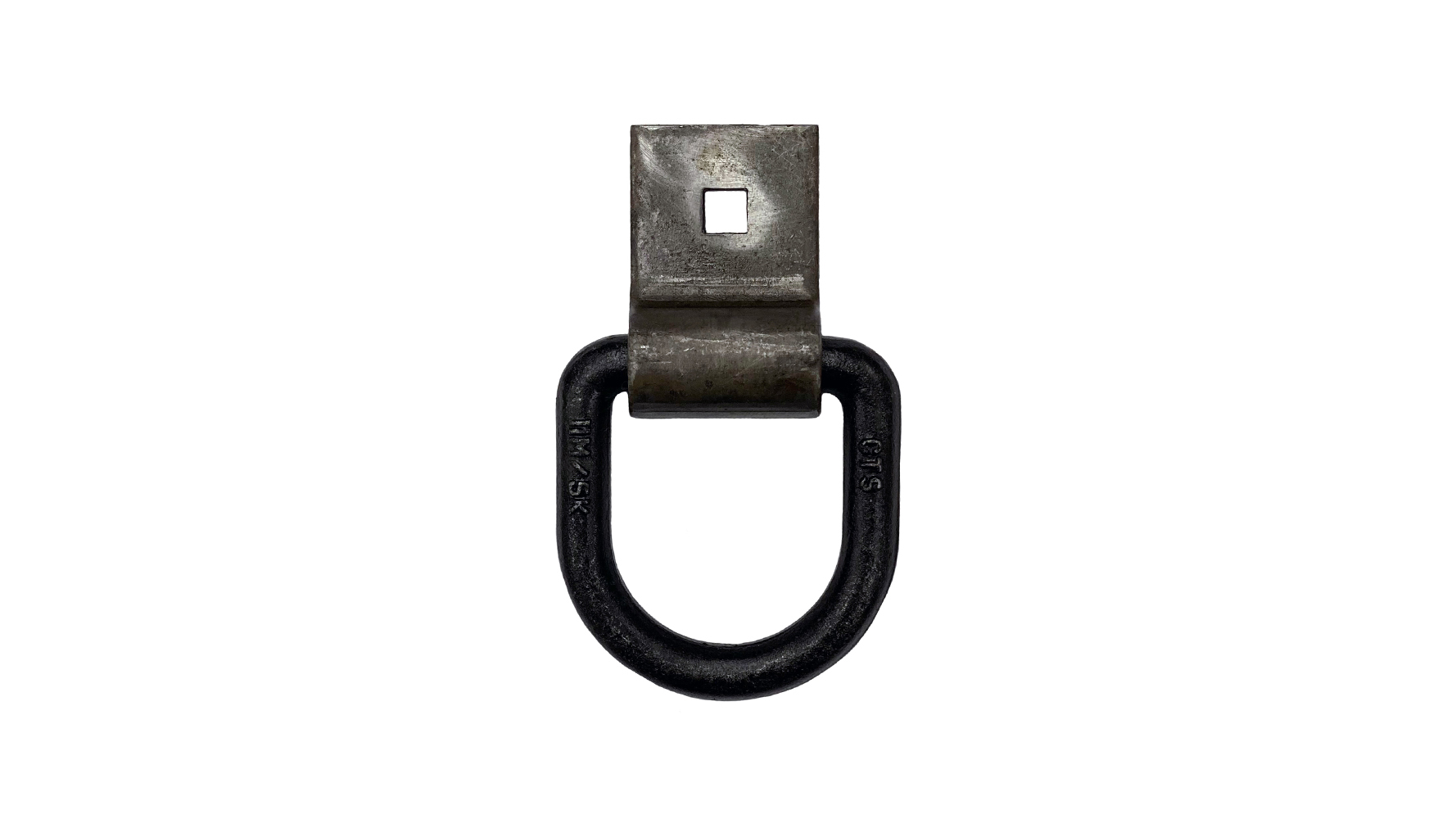

85005 -
1/2" bolt-on D ring |

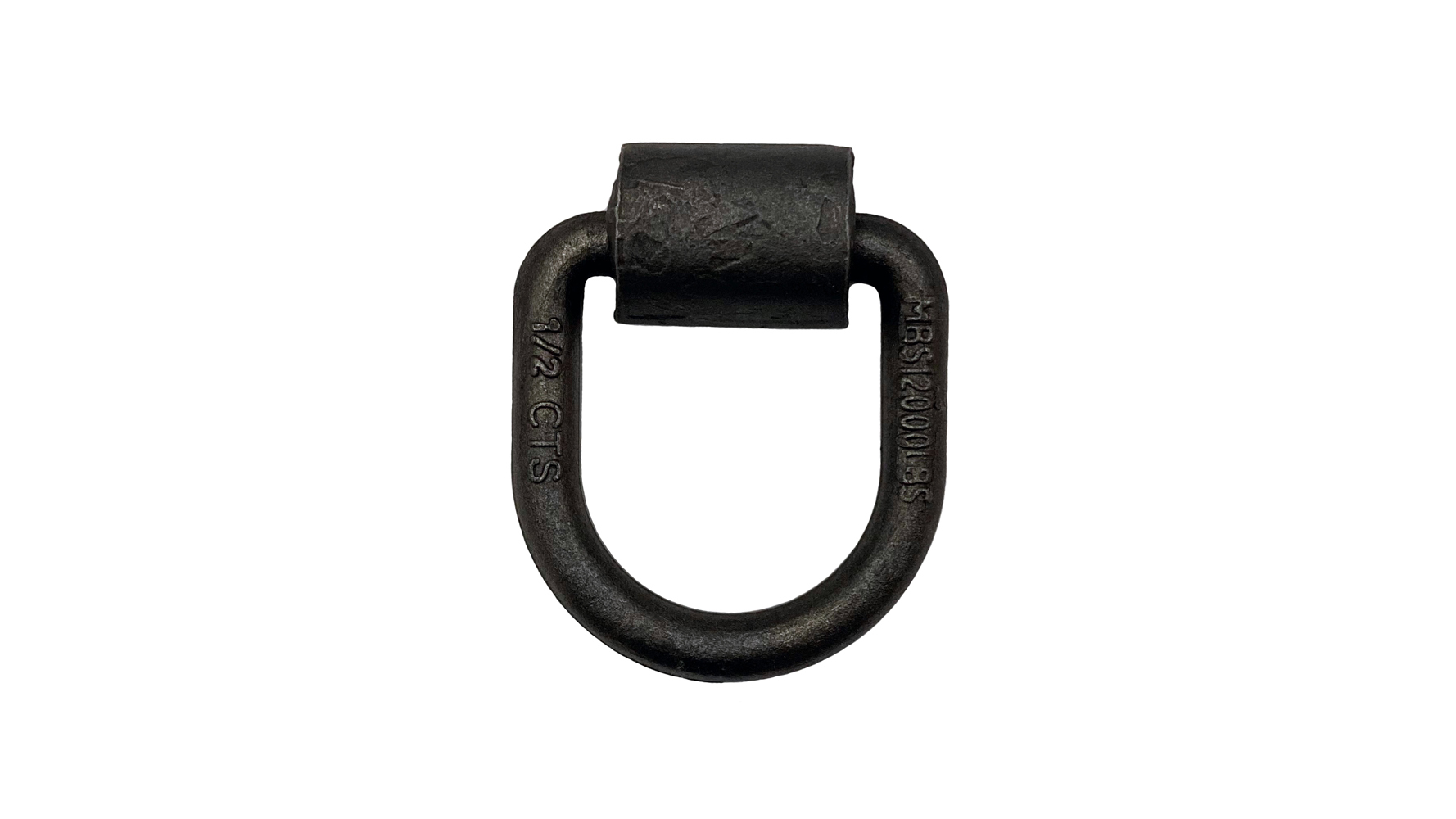

85008 -
1/2" weld-on D ring |
| 2-1/2" x 2-3/8" I.D. |
2-1/2" x 2-3/8" I.D. |
2-1/2" x 2-3/8" I.D. with weld-on
mounting bracket |
| Working Load Limit: 3,666lbs
(1,666kgs) |
Working Load Limit: 3,666lbs
(1,666kgs) |
Working Load Limit: 3,666lbs
(1,666kgs) |
| B/S: 11,000lbs
(5,000kgs) |
B/S: 11,000lbs
(5,000kgs) |
B/S: 11,000lbs
(5,000kgs) |
 |
 |
 |
| 85003 -
5/8" weld-on D ring |
85006 -
1" weld-on D ring, FLAT |
85007 -
1" weld-on D ring, BENT |
| 3" x 3" I.D. with weld-on mounting
bracket |
3" x 4" I.D. with weld-on mounting
bracket |
4" x 3" I.D. with weld-on mounting
bracket |
| Working Load Limit: 6,000lbs
(2,727kgs) |
Working Load Limit: 15,666lbs
(7,121kgs) |
Working Load Limit: 15,666lbs
(7,121kgs) |
| B/S: 18,000lbs
(8,181kgs) |
B/S: 47,000lbs
(21,363kgs) |
B/S: 47,000lbs
(21,363kgs) |
¡@
|
==============
