Breaking Strength (B/S) = 3 X Working
Load Limit (WLL)
Alternate hardware available, see hardware
section of catalogue
Webbing straps must be protected when used on
rough or sharp objects. Straps that are cut, worn or otherwise damaged
should not be used.
A strap is only as strong as its weakest
component.
¡@
| |
Transport Chain, G70
 |
- We'll cut your bulk chain to any length at no
additional charge!
- Working Load Limit: This is the
maximum load in pounds that chain should be used in service.
- Stamped G70 on every 6 links of chain.
|
|
Part No. |
Trade
Size (Inch) |
Material Diameter (Inch) |
Working Load Limit (lbs) |
Breaking Force Minimum (lbs) |
1/2 Drum (feet) |
Full Drum (feet) |
|
70140 |
1/4" |
0.343 |
2,200 |
18,800 |
400' |
800' |
|
70516 |
5/16" |
0.343 |
4,700 |
18,800 |
275' |
550' |
|
70380 |
3/8" |
0.406 |
6,600 |
26,400 |
200' |
400' |
|
70120 |
1/2" |
0.531 |
11,300 |
45,200 |
100' |
200' |
Transport Chain with Grab Hook both ends,
G70
 |
- Custom lengths are available upon
requested.
- Stamped G70 on grab hook and every 6 links of
chain.
|
|
Part No. |
Trade
Size (Inch) |
Length (feet) |
Material Diameter (Inch) |
Working Load Limit (lbs) |
Breaking Force Minimum (lbs) |
Weight (lbs) |
|
70516-15 |
5/16" |
15' |
0.343 |
4,700 |
18,800 |
19.2 |
|
70516-20 |
5/16" |
20' |
0.343 |
4,700 |
18,800 |
25.0 |
|
70516-25 |
5/16" |
25' |
0.343 |
4,700 |
18,800 |
29.1 |
|
70380-15 |
3/8" |
15' |
0.406 |
6,600 |
26,400 |
24.8 |
|
70380-20 |
3/8" |
20' |
0.406 |
6,600 |
26,400 |
32.4 |
|
70380-25 |
3/8" |
25' |
0.406 |
6,600 |
26,400 |
40.0 |
|
70120-15 |
1/2" |
15' |
0.531 |
11,300 |
45,200 |
32.0 |
|
70120-20 |
1/2" |
20' |
0.531 |
11,300 |
45,200 |
41.0 |
|
70120-25 |
1/2" |
25' |
0.531 |
11,300 |
45,200 |
50.0 |
Transport Chain with Slip Hook & Couple
link, G70
 |
- Working Load Limit: This is the
maximum load in pounds that chain should be used in service.
- Stamped G70 on every 6 links of chain.
|
|
Part No. |
Trade
Size (Inch) |
Length (feet) |
Material Diameter (Inch) |
Working Load Limit (lbs) |
Breaking Force Minimum (lbs) |
Weight (lbs) |
|
33238-36 |
3/8" |
3' |
0.406 |
6,600 |
26,400 |
6.0 |
|
33238-72 |
3/8" |
6' |
0.406 |
6,600 |
26,400 |
12.0 |
¡@
Load Binders
WARNING:
"Cheater Bar" (extender) shall not be used with binders.
 |

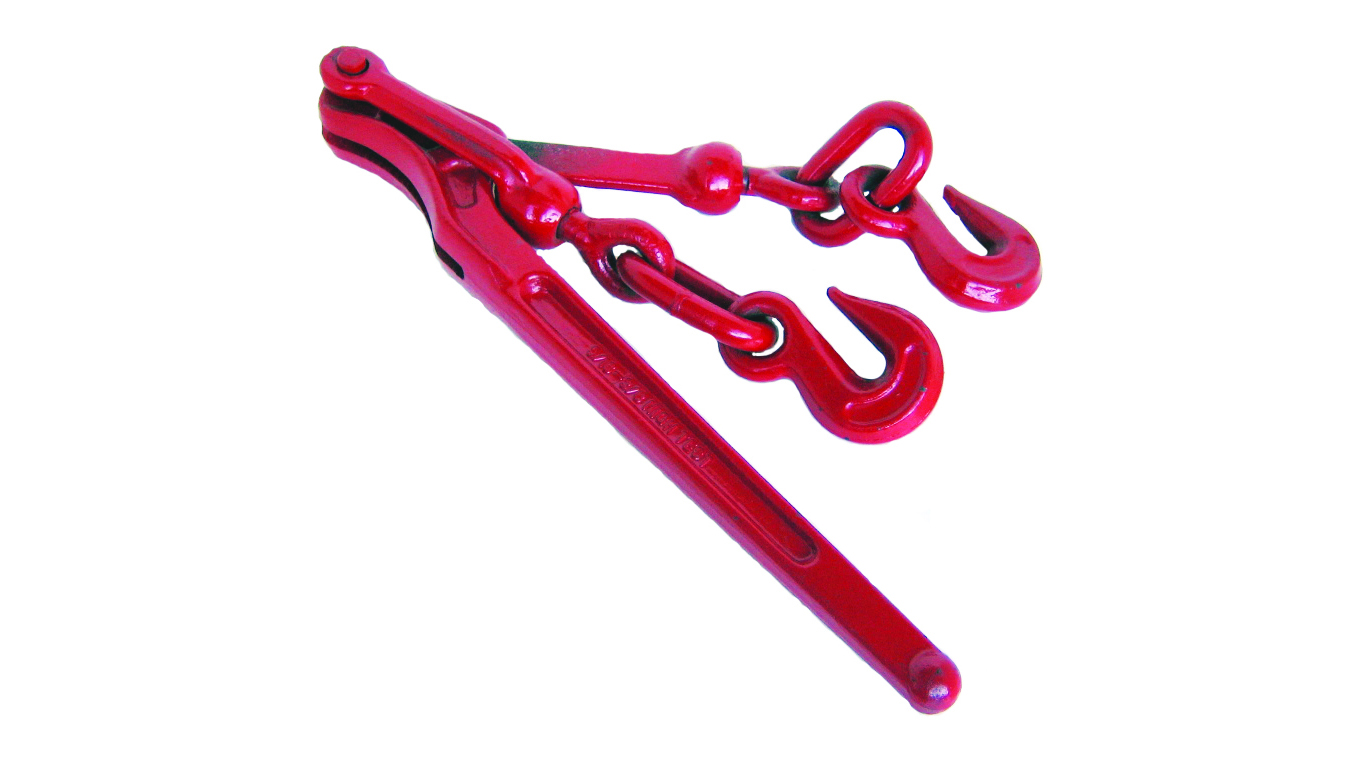

Lever Load Binders
|
Part No. |
Adjustable Range |
Working Load Limit (lbs) |
Breaking Strength (lbs) |
Q'ty pcs/ctn |
|
12014 |
1/4" - 5/16" |
2,200 |
7,800 |
5, |
|
12038 |
5/16" -
3/8" |
5,400 |
19,000 |
5 |
|
12012 |
3/8" - 1/2" |
9,200 |
33,000 |
2 |
|
¡@ |
1/2" -
5/8" |
11,000 |
44,000 |
2 |
|
 |
Ratchet
Load Binders
|
Part No. |
Adjustable Range |
Working Load Limit (lbs) |
Breaking Strength (lbs) |
Q'ty pcs/ctn |
|
12034 |
5/16" - 3/8" |
5,400 |
19,000 |
2 |
|
12035 |
3/8" -
1/2" |
9,200 |
33,000 |
2 |
|
12036 |
1/2" - 5/8" |
13,000 |
46,000 |
2 |
|
 |

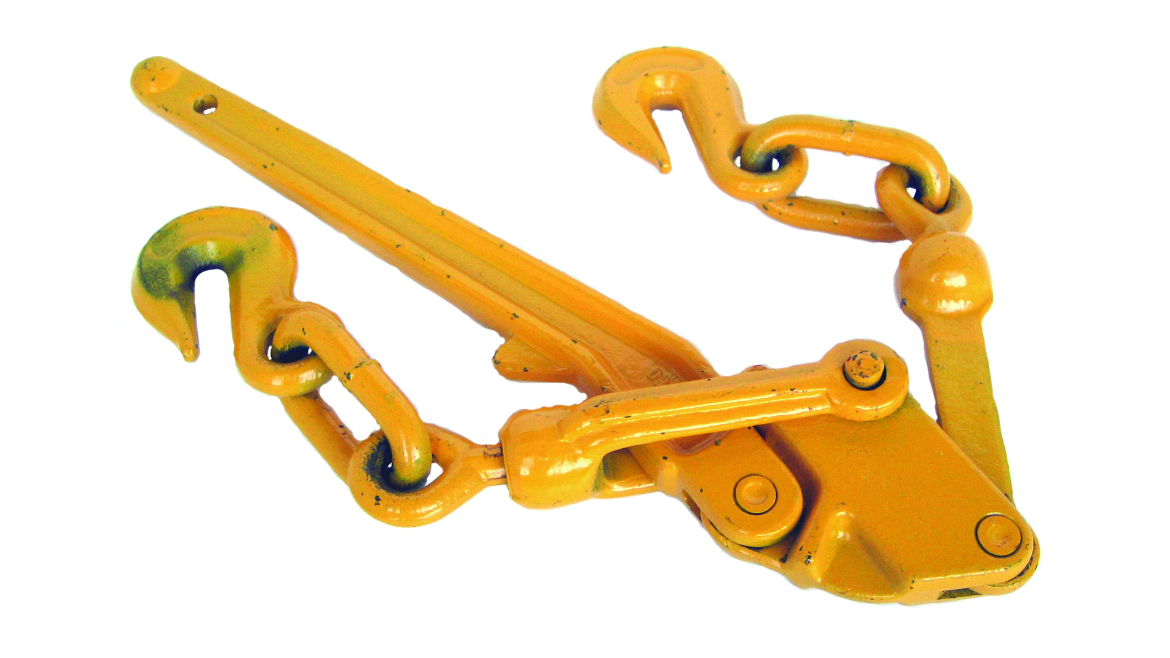

In-Direct Load Binders
|
Part No. |
Adjustable Range |
Working Load Limit (lbs) |
Breaking Strength (lbs) |
Q'ty pcs/ctn |
|
12039 |
5/16" - 3/8" |
5,400 |
19,000 |
2 |
|
12040 |
3/8" -
1/2" |
9,200 |
33,000 |
2 |
|
¡@ |
¡@ |
¡@ |
¡@ |
¡@ |
|

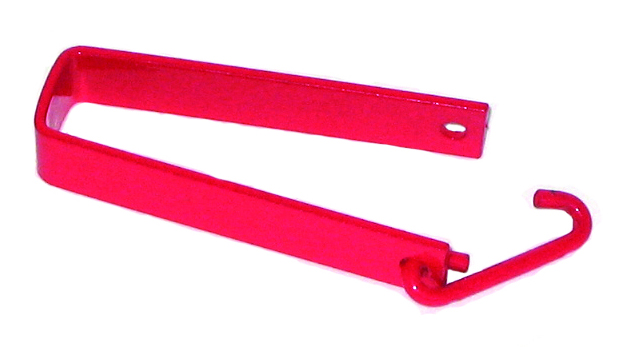

12015
- spring type |
12016 - Screw nut type |

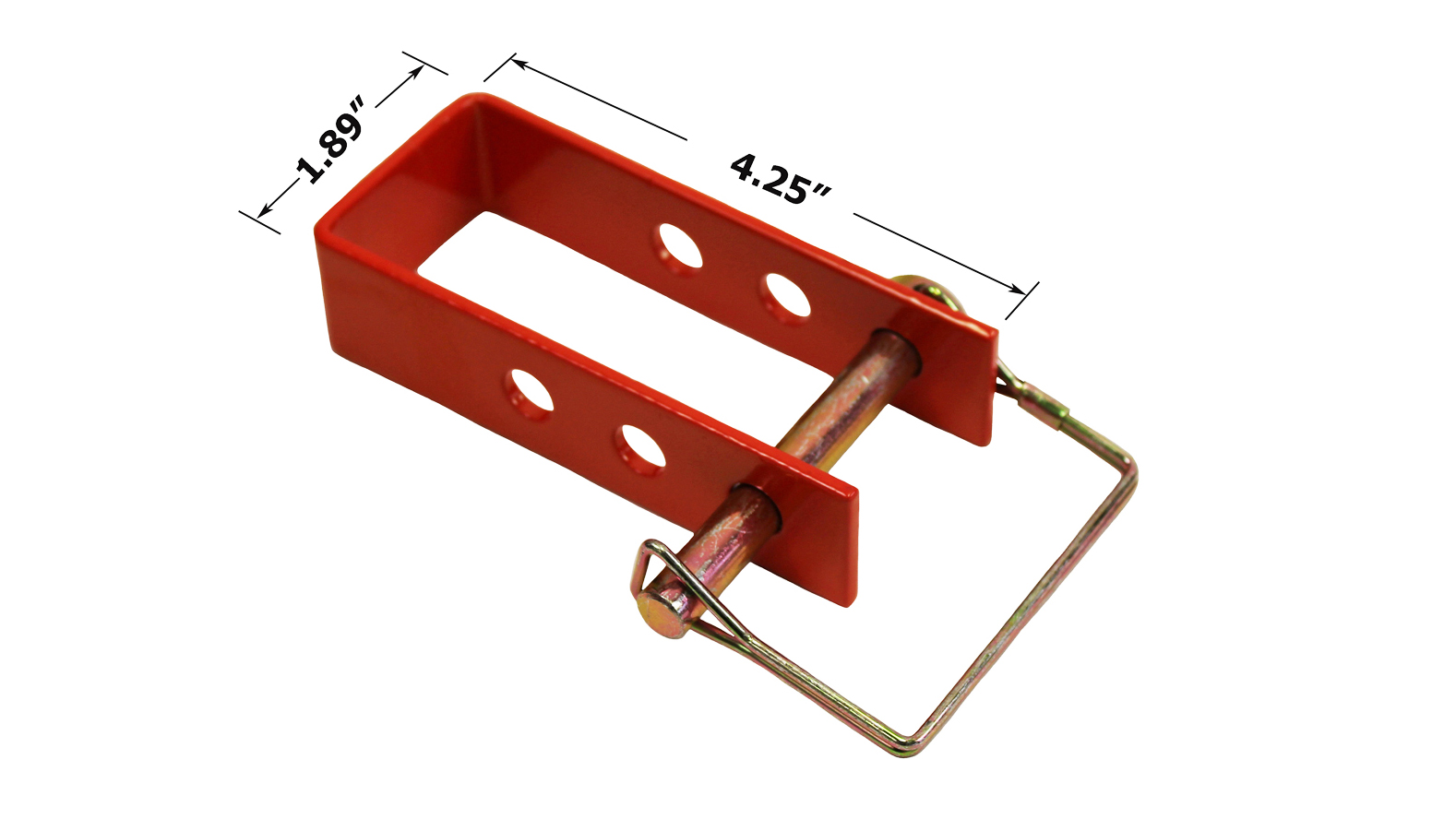

12017 - Adjustable type |
Binder Lock
is a simple and cost effective way of keeping your binders secured.
The U-shaped bracket is designed to fit over the binder handle and lock
into place with a spring steel clip. The bracket can be fitted
over the chain or the binder handle. The lock can be clipped
through the chain and around the binder handle. |
¡@
Clevis Hooks/Connectors
 |
Clevis Grab Hooks, G70
|
Part No. |
Adjustable Range |
Working Load Limit (lbs) |
|
33014 |
1/4" |
3,150 |
|
33056 |
5/16" |
4,700 |
|
33038 |
3/8" |
6,600 |
|
33012 |
1/2"
|
11,300 |
|
Simple clevis pin and cotter attachment.
Use with Grade 70 chain. |
 |
Slip Hook with Latch, G70
|
Part No. |
Adjustable Range |
Working Load Limit (lbs) |
|
33214 |
1/4" |
2,750 |
|
33256 |
5/16" |
4,300 |
|
33238 |
3/8" |
5,250 |
|
33212 |
1/2"
|
9,000 |
|
Slip hook includes a spring loaded latch.
Attaches with a clevis pin and cotter attachment. Ideal for making
Grade 70 assemblies. |
 |
Twin Clevis Links, G70
|
Part No. |
Adjustable Range |
Working Load Limit (lbs) |
|
33456 |
1/4" - 5/16" |
4,700 |
|
33438 |
3/8" |
6,600 |
|
33412 |
1/2" |
11,300 |
|
Use for any chain repair or attachment
situation with a twin clevis link. This unique product is
absolutely the easiest way to combine two pieces of chain or add end
fittings. |
 |
Quick Links
|
Part No. |
Adjustable Range |
Working Load Limit (lbs) |
|
33614 |
1/4" |
866 |
|
33656 |
5/16" |
1,760 |
|
33638 |
3/8" |
2,633 |
|
33612 |
1/2"
|
3,300 |
|
For light duty chain repairs.
Always match the working load of your chain. Do
not use for overhead lifting. |
 |
Double Clevis Links, G70
|
Part No. |
Adjustable Range |
Working Load Limit (lbs) |
|
33714 |
1/4" |
2,600 |
|
33756 |
5/16"-3/8" |
5,400 |
|
33776 |
7/16" |
7,000 |
|
33712 |
1/2"
|
9,200 |
|
Use for any chain repair or attachment
situation with a double clevis link. This unique product is
absolutely the easiest way to combine two pieces of chain or add end
fittings. |
 |
Alloy Connecting Links,
G80
|
Part No. |
Adjustable Range |
Working Load Limit (lbs) |
|
33514 |
1/4" |
3,500 |
|
33556 |
5/16" |
5,400 |
|
33538 |
3/8" |
7,100 |
|
33512 |
1/2"
|
12,000 |
|
Grade 80 alloy connecting links have a
simple modular design, making them easy to use and re-use even out in
the field. |
¡@
¡@
¡@
|
==============
CTS
is your Cargo Securement
Specialist ==================
