Track End Fittings

18580 - 2" bolt plate 18590 - 1" bolt plate 19060 - stud fitting with nut
B/S: 5,000lbs (2,270kgs) B/S: 2,200lbs (1,000kgs) B/S: 5,000lbs (2,272kgs)

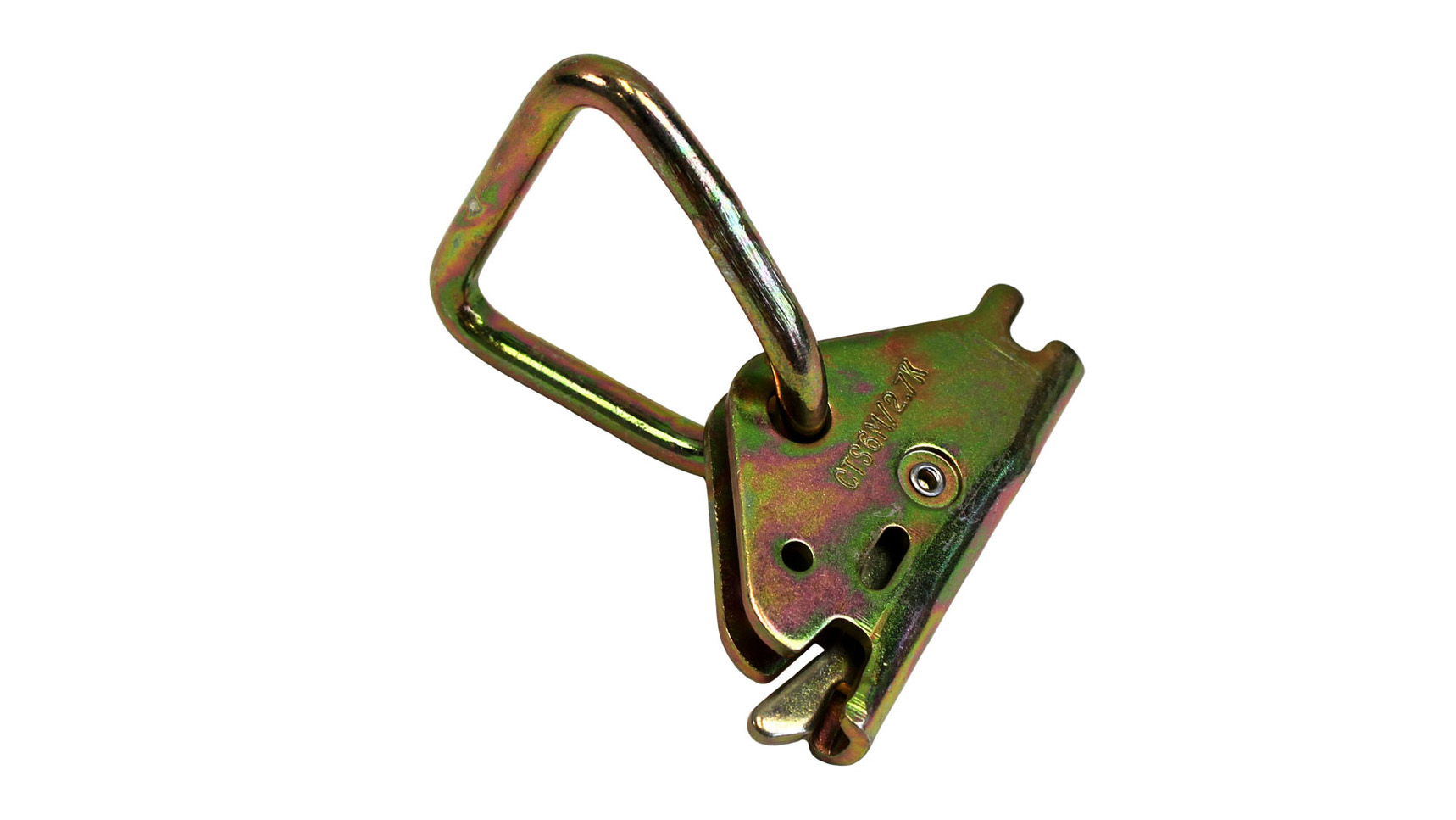

18350 - 2" spring E fitting 18351 - Series E/A fitting w/-D ring 18352 - Series E/A fitting w/-O ring
B/S: 4,500bs (2,045kgs) B/S: 4,100lbs (1,860kgs) B/S: 6,000lbs (2,720kgs)

18481 - L-track fitting 18356 - Series E/A fitting w/-O ring 18355 - Series E/A fitting w/-D ring
B/S: 1,760lbs (800kgs) B/S: 4,500lbs (2,045kgs) B/S: 6,000lbs (2,720kgs)

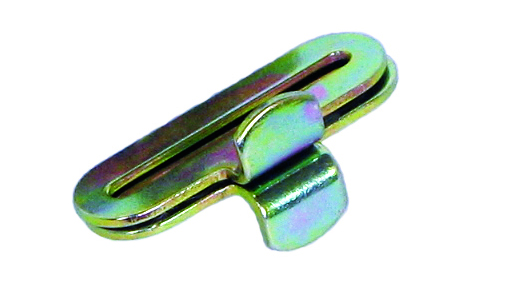

18480 - 1" Series F track fitting 18483 - 3/4" Series F track fitting 18470 - Series F track hook
B/S: 1,500bs (680kgs) B/S: 1,500 (680kgs) B/S: 3,300lbs (1,500kgs)

*fit #19050/#19057 single stud

18471 - Series F track hook 19054 - 2" Aluminum stud anchor plate 19053-6 - 6" Aluminum track

19053-48- 48" Aluminum track

B/S: 2,200bs (1,000kgs) B/S: 1,500lbs (681kgs) B/S: 1,500lbs (681kgs)

19050 - Single stud fitting w/-O ring 19051 - Double stud fitting 19052 - Double stud fitting w/-O ring
B/S: 3,300bs (1,500kgs) B/S: 6,000lbs (2,720kgs) B/S: 6.000lbs (2,720kgs)

19059 - Single stud anchor kit 19057 - Single stud B/S: 4,000bs (1,818kgs) 19058 - Double stud fitting w/-pear ring

B/S: 6.000lbs (2,720kgs)

  • KIT included: 2 sets screws, 1 anchor plate, 1 single stud.
  • Breaking Strength for 45 degree: 2,000lbs (900kgs)
  • Breaking Strength for 90 degree: 4,000lbs (1,800kgs)
¡@ ¡@

¡@ ¡@
18353 - Aluminum E strap extension ¡@ ¡@

¡@

¡@

¡@
