Breaking Strength (B/S) = 3 X Working
Load Limit (WLL)
Alternate hardware available, see hardware
section of catalogue
Webbing straps must be protected when used
on rough or sharp objects. Straps that are cut, worn or otherwise damaged
should not be used.
A strap is only as strong as its weakest
component.
¡@
| |
Polyester Slings
All our polyester slings feature interior red warning fibers woven into the
webbing which become, exposed after extensive use. alerting you to cuts or worn
sports and the need for strap replacement. All eyes comes with protector
for extra protection.
Type 3 - Flat eyes
Type 4 - Twisted eyes
Breaking Strength Safe Factor = 5:1 Polyester Webbing
Polyester webbing = 9800lbs/inch

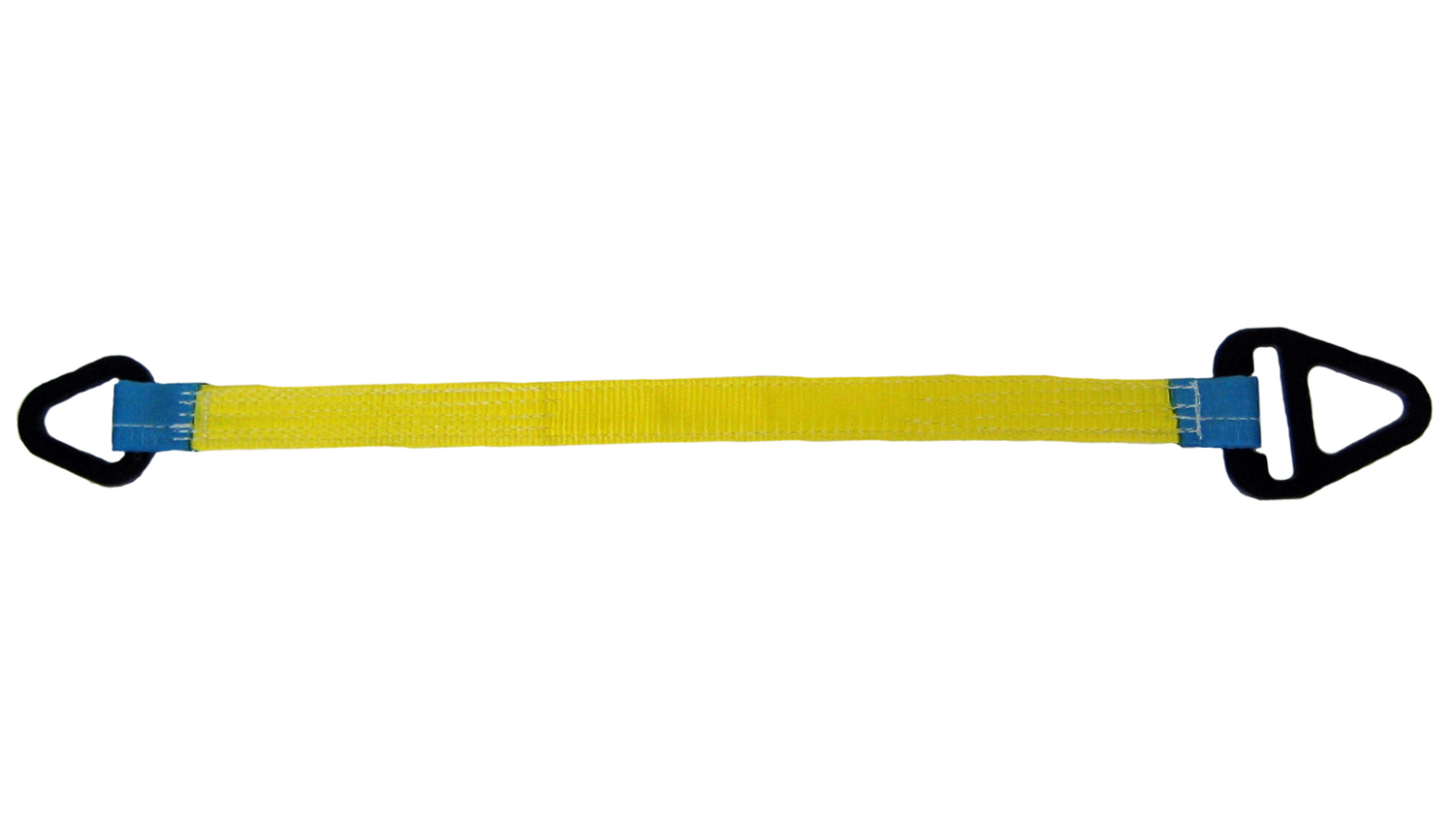

| Type I -
Triangle - Choker -
Steel choker hardware provides for smooth, snug choke hitching.
They can also be used in vertical and basket hitches. |
 |

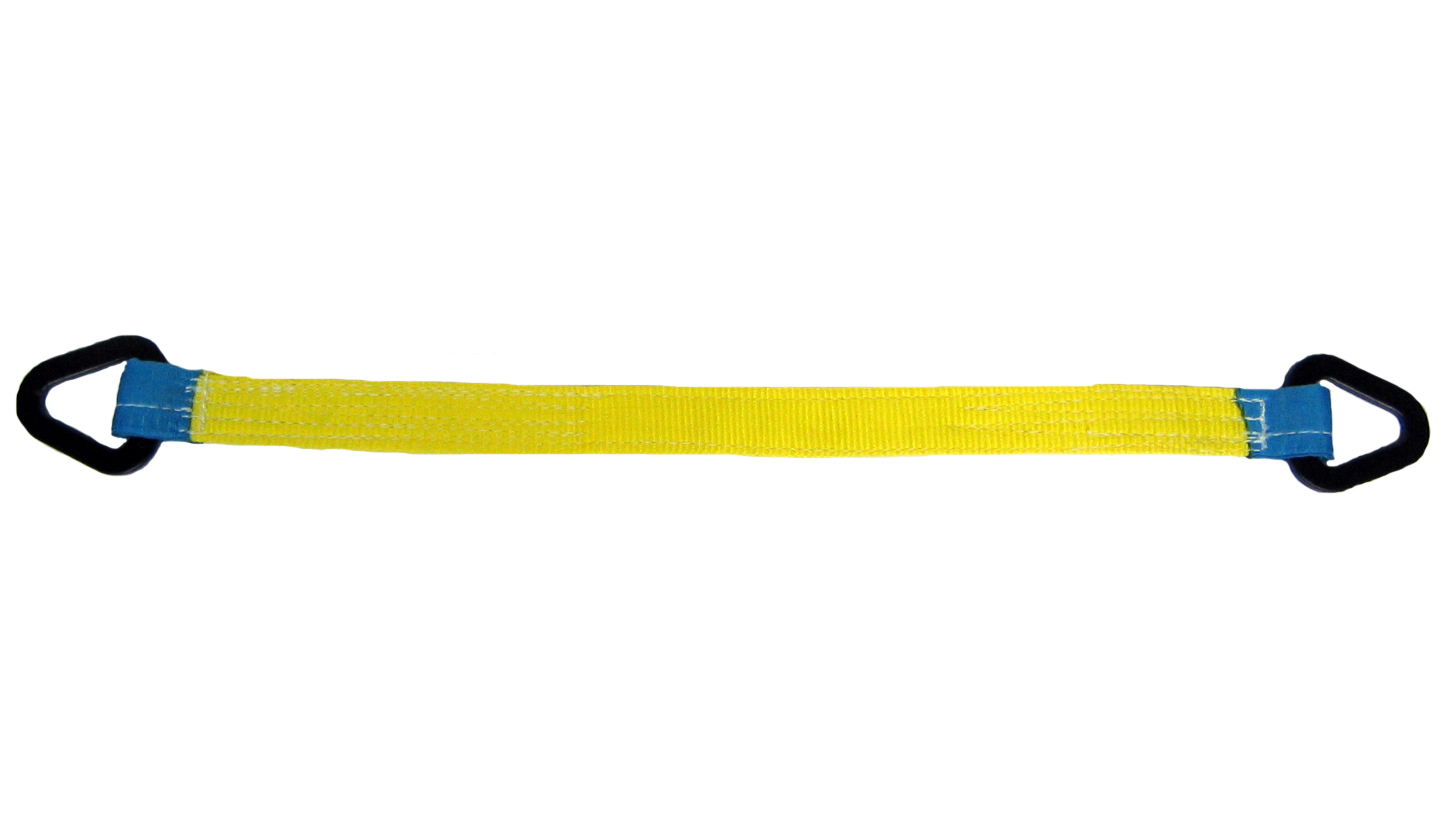

| Type II -
Triangle - Triangle -
Steel basket hardware is attached to each end of the sling for use in
vertical and basket hitches only. |
 |

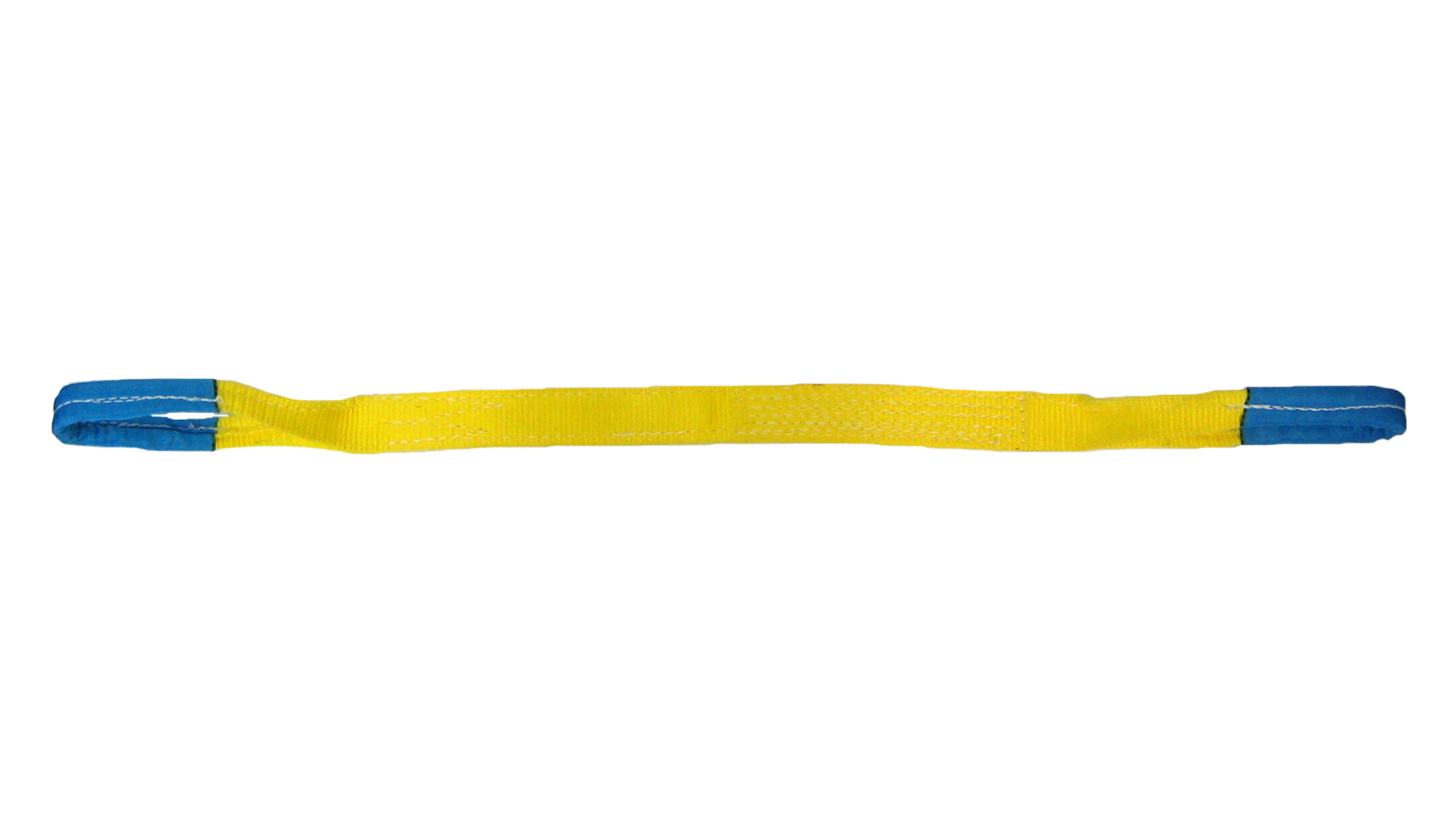

| Type III -
Folded Eye & Eye Sling
- Flat folded eye
slings are very popular and can be used in all three types of hitches.
They are easier to remove from beneath the load after the load is in
place. |
 |

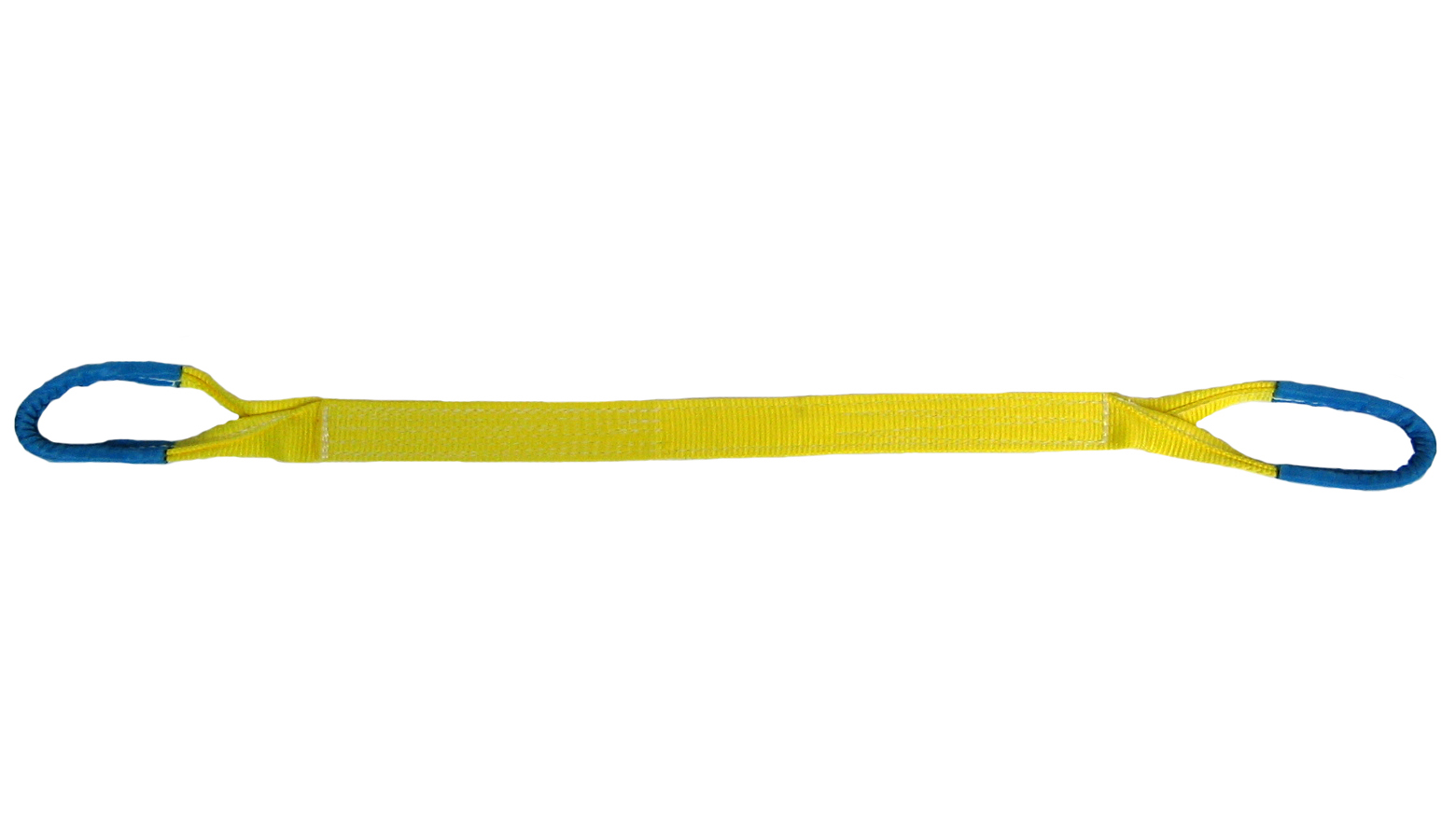

| Type IV -
Twisted Eye & Eye Sling
- Twisted eye slings are similar to Type III, except the eyes are turned
90¢X to form a better choker hitch. This type of eye also nests
together better on the crane hook when used in a basket hitch. |
 |
| ¡@ |
|
Rated Capacity - Types I, II, III, IV
Safety Factor= 5:1 |
| 1 PLY |
|
WIDTH (Inch) |
Vertical Lift (lbs) |
Choked Lift (lbs) |
Basket Lift (lbs) |
| 1" |
1,600 |
1,280 |
3,200 |
|
2" |
3,100 |
2,480 |
6,200 |
| 3" |
4,700 |
3,760 |
9,400 |
|
4" |
6,200 |
4,960 |
12,400 |
| 5" |
7,800 |
6,240 |
15,600 |
|
6" |
9,300 |
7,440 |
18,600 |
| 8" |
11,800 |
9,440 |
23,600 |
|
10" |
14,700 |
11,760 |
29,400 |
| 12" |
17,600 |
14,080 |
35,200 |
|
WIDTH (Inch) |
Vertical Lift (lbs) |
Choked Lift (lbs) |
Basket Lift (lbs) |
| 1" |
3,100 |
2,480 |
6,200 |
|
2" |
6,200 |
4,960 |
12,400 |
| 3" |
8,800 |
7,040 |
17,600 |
|
4" |
11,000 |
8,800 |
22,000 |
| 5" |
13,700 |
10,960 |
27,400 |
|
6" |
16,500 |
13,200 |
33,000 |
| 8" |
22,700 |
18,160 |
45,400 |
|
10" |
28,400 |
22,720 |
56,800 |
| 12" |
34,100 |
27,280 |
68,200 |
¡@

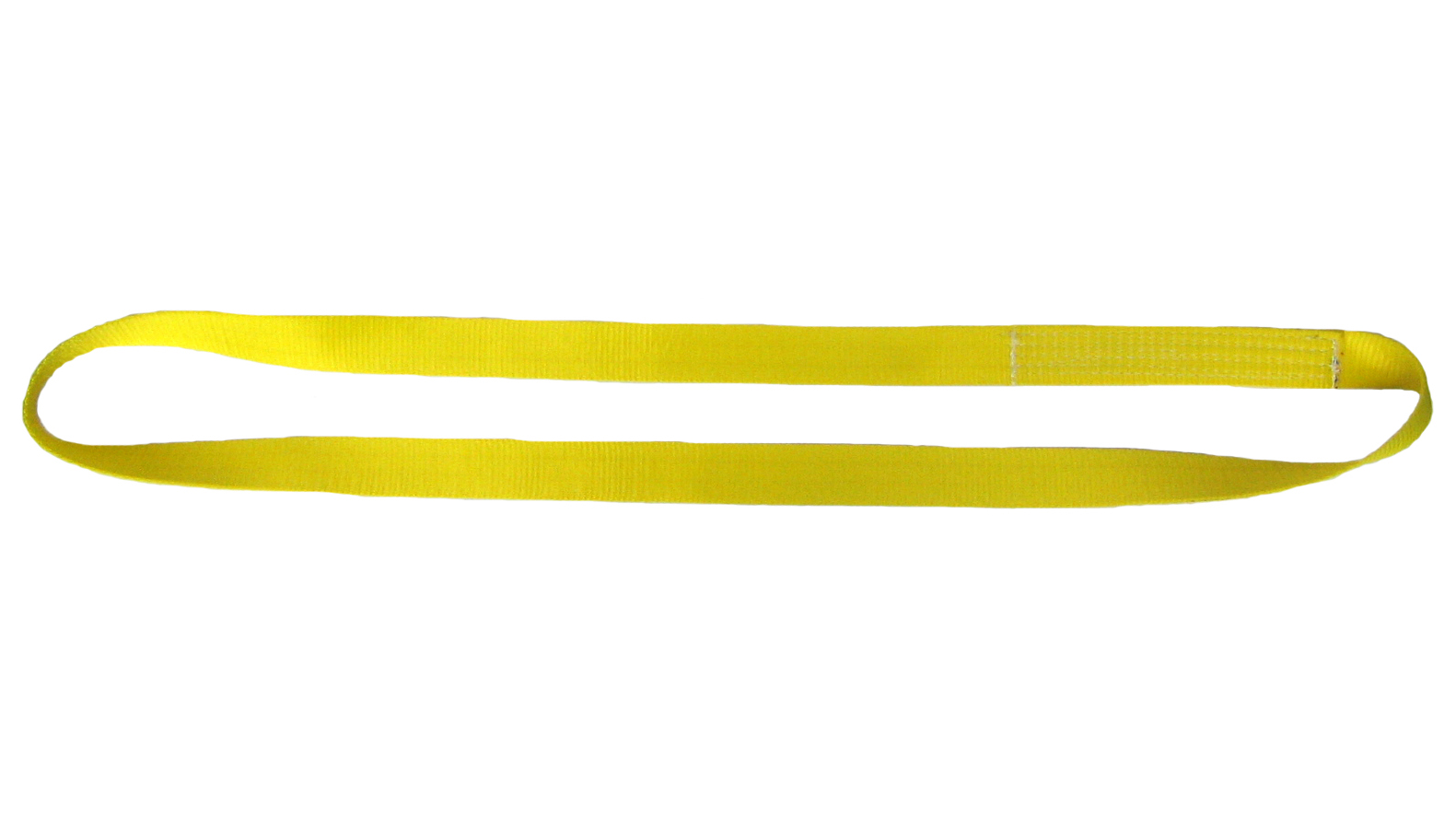

| Type V -
Endless Sling - Endless
sling is the most versatile sling that can be used in vertical, choker,
or basket hitches. The hook and load contact points can be rotated
to extend the life of the sling. The sling legs can be spread for
improved load control. |
|
Rated Capacity - Types V
Safety Factor= 5:1 |
1 PLY
|
WIDTH (Inch) |
Vertical Lift (lbs) |
Choked Lift (lbs) |
Basket Lift (lbs) |
| 1" |
3,200 |
2,560 |
6,400 |
|
2" |
6,200 |
4,960 |
12,400 |
| 3" |
9,400 |
7,520 |
18,800 |
|
4" |
12,400 |
9,920 |
24,800 |
| 5" |
15,600 |
12,480 |
31,200 |
|
6" |
18,600 |
14,880 |
37,200 |
| 8" |
21,200 |
16,960 |
42,400 |
|
10" |
26,500 |
21,200 |
53,000 |
| 12" |
31,800 |
25,440 |
63,600 |
|
WIDTH (Inch) |
Vertical Lift (lbs) |
Choked Lift (lbs) |
Basket Lift (lbs) |
| 1" |
6,200 |
12,400 |
12,400 |
|
2" |
12,400 |
24,800 |
24,800 |
| 3" |
17,600 |
35,200 |
35,200 |
|
4" |
22,000 |
44,000 |
44,000 |
| 5" |
27,400 |
54,800 |
54,800 |
|
6" |
33,000 |
66,000 |
66,000 |
| 8" |
42,300 |
84,600 |
84,600 |
|
10" |
52,900 |
105,800 |
105,800 |
| 12" |
63,500 |
127,000 |
127,000 |
|
|
WARNING: DO NOT EXCEED RATED CAPACITIES
Polyester Round Slings
| Round slings are easy to use, efficient
in operation and gentle on surface contact. All round slings are
color coded to give easy identification of the safe working load.
The round sling inner core is made from high tensile polyester fiber
which is wound continuously without a join to provide the maximum
possible strength. This core is protected by a tough woven tubular
2-ply sleeve also made from polyester without side stitch. |

|
Rated Capacity - Round Sling
Safety Factor= 5:1 |
|
Part No. |
Color Coded |
Vertical Lift (lbs) |
Choked Lift (lbs) |
Basket Lift (lbs) |
| RSEN-03 |
Purple |
3,000 |
2,400 |
6,000 |
|
RSEN-04 |
Black |
4,000 |
3,200 |
8,000 |
| RSEN-06 |
Green |
6,000 |
4,800 |
12,000 |
|
RSEN-09 |
Yellow |
9,000 |
7,200 |
18,000 |
| RSEN-12 |
Brown |
12,000 |
9,600 |
24,000 |
|
RSEN-14 |
Red |
14,000 |
11,200 |
28,000 |
| RSEN-17 |
Orange |
17,000 |
13,600 |
34,000 |
|
RSEN-23 |
Blue |
23,000 |
18,400 |
46,000 |
| RSEN-26 |
Orange |
26,000 |
20,800 |
52,000 |
|
RSEN-32 |
Grey |
32,000 |
25,600 |
64,000 |
| RSEN-40 |
Orange |
40,000 |
32,000 |
80,000 |
|
|
**When ordering, just add a number behind our part no. to
specify the working length in feet.
WARNING: DO NOT EXCEED RATED CAPACITIES
Polyester Drum Slings
| DS23-36 |
Adjustable Drum Slings |
 |
- Polyester Drum Handling Slings are specifically
designed for the efficient handling of 55 gallon, ribbed, metal
drums. It can be used to lift open top drums, or even drums
fitted with spigots or pumps.
- The sling consists of a 3" bridle and a 2
circumferential tightening band. The lift bridle is
permanently attached to the tightening band, thus eliminating the
need to position the bridle for lifting.
- The lift loop is attached to the circumferential
tightening band. The unattached leg is free to be positioned
for various drum diameters.
- Working Load Limit: 1,000lbs
CAUTION: When
making the lift, keep the load low, lifting the drum only enough to
clear the ground. Extra consideration should be given when
handling partially filled drums to insure load control.
¡@ |
| DS22-24 |
Lifts various drum sizes
vertically |
 |
- This versatile sling lets you safely and easily
handle various drum sizes up to 1,000lbs.
- Tough, 2" polyester sling webbing.
- Self-tightening. Pull-to-pull length of up
to 24"
- Working Load Limit: 1,000lbs
NOTE:
Not for plastic drums. Use with
closed-head metal drums only.
CAUTION: When
making the lift, keep the load low, lifting the drum only enough to
clear the ground. Extra consideration should be given when
handling partially filled drums to insure load control.
¡@ |
 |
- This 2" x 5' Battery Changing sling has been
designed for hook onto the eye bolt on both side of the battery and
lift it with the forks of any forklift truck to facilitate removal
and replacement of a fork truck battery.
- 2-ply polyester sling webbing
- alternate hardware and custom lengths are
available upon requested.
- Working Load Limit: 5,000lbs
¡@
¡@
¡@ |
NOTE: It is the owner's and
user's responsibility to determine suitability of a product for any particular
use. Remember, all strap assemblies or systems are as strong as their
weakest component including the point of attachment.
¡@
Web Slings
| Synthetic Web Slings - The Bridle web
sling assembled with various combinations of G80 hardware. |
|
Rated Capacity - 1-LEG/2-LEG Web Sling
Safety Factor= 5:1 |
| ¡@ |
¡@ |
 |
 |
|
|
|
Leg Web Width |
Number of Ply |
90¢X angle (lbs) |
60¢X angle (lbs) |
45¢X angle (lbs) |
30¢X angle (lbs) |
| 1" |
1 |
1,600 |
2,720 |
2,240 |
1,600 |
|
1" |
2 |
3,200 |
5,440 |
4,480 |
3,200 |
| 2" |
1 |
3,200 |
5,440 |
4,480 |
3,200 |
|
2" |
2 |
6,400 |
10,880 |
8,960 |
6,400 |
|
|
|
Rated Capacity - 3-LEG/4-LEG Web Sling
Safety Factor= 5:1 |
| ¡@ |
¡@ |
  |
|
|
|
Leg Web Width |
Number of Ply |
60¢X angle (lbs) |
45¢X angle (lbs) |
30¢X angle (lbs) |
| 1" |
1 |
4,160 |
3,360 |
2,400 |
|
1" |
2 |
8,320 |
6,720 |
4,800 |
| 2" |
1 |
8,320 |
6,720 |
4,800 |
|
2" |
2 |
16,640 |
13,400 |
9,600 |
|
|
¡@
Chain Slings
| G80 Chain Slings - The Chain sling will
be the best choice if the operation environment is high temperature or a
rough surface of the lifted object. |
|
Rated Capacity - 1-LEG/2-LEG G80 Chain Sling
Safety Factor= 4:1 |
| ¡@ |
 |
 |
|
|
|
Chain Dia. (inch) |
90¢X angle (lbs) |
60¢X angle (lbs) |
45¢X angle (lbs) |
30¢X angle (lbs) |
| 9/32 |
3,500 |
6,100 |
4,900 |
3,500 |
|
3/8 |
7,100 |
12,300 |
10,000 |
7100 |
| 1/2 |
12,000 |
20,800 |
17,000 |
12,000 |
|
5/8 |
18,100 |
31,300 |
25,600 |
18,000 |
|
|
|
Rated Capacity - 3-LEG/4-LEG G80 Chain Sling
Safety Factor= 4:1 |
| ¡@ |
  |
|
|
|
Chain Dia. (inch) |
60¢X angle (lbs) |
45¢X angle (lbs) |
30¢X angle (lbs) |
| 9/32 |
9,100 |
7,400 |
5,200 |
|
3/8 |
18,400 |
15,100 |
10,600 |
| 1/2 |
31,200 |
25,500 |
18,000 |
|
5/8 |
47,000 |
38,400 |
27,100 |
|
WARNING: DO NOT EXCEED RATED CAPACITIES
¡@
| |
¡@
|
