Breaking Strength (B/S) = 3 X Working
Load Limit (WLL)
Alternate hardware available, see hardware
section of catalogue
Webbing straps must be protected when used on
rough or sharp objects. Straps that are cut, worn or otherwise damaged
should not be used.
A strap is only as strong as its weakest
component.
¡@
| |
Ratchet Straps
All Ratchet straps are made with heavy duty, wear and
weather-resistant load control straps. All ratchet straps are labeled to
meet DOT regulations and WSTDA recommended.
- Alternate hardware and custom lengths are available upon
requested.
- These straps are made from minimum breaking strength of
6,000lbs per inch polyester webbing.
WARNING
- Breaking Strength (B/S) = 3 X
Working Load Limit (W.L.L)
- Do not use strap if there are any signs
of cut webbing, heat or chemical damage.
- Do not attempt to use strap above rated
capacity.
- Alternate hardware available, see
hardware section of catalogue
- Webbing straps must be protected
when used on rough or sharp objects. Straps that are cut, worn or otherwise
damaged should not be used.
- A strap is only as strong as its
weakest component.
NOTE
- Hardware strength may be reduced if load path in the area
of hardware is not in a straight line.
- Working load requirements should be evaluated by user
before selecting appropriate hardware and strap assemblies.
- Remember, All strap assemblies or systems
are as strong as their weakest component including the point of attachment.
¡@
2" Ratchet Straps, webbing b/s:
12,000lbs
2" Ratchet Strap w/-18300 flat hook and 70201 ratchet
buckle
Working Load Limit: 3,335lbs
(1,515kgs) B/S: 10,000(4,545kgs) |
| Part No. |
Strap Length |
| RS21810-FXL |
10FT |
| RS21812-FXL |
12FT |
| RS21816-FXL |
16FT |
| RS21820-FXL |
20FT |
| RS21825-FXL |
25FT |
| RS21830-FXL |
30FT |
|
2" Ratchet Strap w/-18200 wire hook (7/16") and 70201
ratchet buckle
Working Load Limit: 3,335lbs
(1,515kgs) B/S: 10,000(4,545kgs) |
| Part No. |
Strap Length |
| RS21810-WXL |
10FT |
| RS21812-WXL |
12FT |
| RS21816-WXL |
16FT |
| RS21820-WXL |
20FT |
| RS21825-WXL |
25FT |
| RS21830-WXL |
30FT |
|
2" Ratchet Strap w/-18420 twisted snap hook and 70201
ratchet buckle
Working Load Limit: 3,335lbs
(1,515kgs) B/S: 10,000(4,545kgs) |
| Part No. |
Strap Length |
| RS21810-TSL |
10FT |
| RS21812-TSL |
12FT |
| RS21816-TSL |
16FT |
| RS21820-TSL |
20FT |
| RS21825-TSL |
25FT |
| RS21830-TSL |
30FT |
|
2" Ratchet Strap w/-18202 wire hook (3/8") and 70203
ratchet buckle
Working Load Limit: 1,666lbs
(757kgs) B/S: 5,000(2,272kgs) |
| Part No. |
Strap Length |
| RS21810-WS |
10FT |
| RS21812-WS |
12FT |
| RS21816-WS |
16FT |
| RS21820-WS |
20FT |
| RS21825-WS |
25FT |
| RS21830-WS |
30FT |
|
2" Ratchet Strap w/-38162 chain anchor and 70201
ratchet buckle
Working Load Limit: 3,335lbs
(1,515kgs) B/S: 10,000(4,545kgs) |
| Part No. |
Strap Length |
| RS23310-C |
10FT |
| RS23312-C |
12FT |
| RS23316-C |
16FT |
| RS23320-C |
20FT |
| RS23325-C |
25FT |
| RS23330-C |
30FT |
|
¡@
¡@
3" Ratchet Straps, webbing b/s: 18,000lbs
3" Ratchet Strap
w/-18440 flat hook
Working Load Limit: 5,000lbs
(2,272kgs) B/S: 15,000(6,818kgs) |
| Part No. |
Strap Length |
| RS31810-F |
10FT |
| RS31812-F |
12FT |
| RS31816-F |
16FT |
| RS31820-F |
20FT |
| RS31825-F |
25FT |
| RS31830-F |
30FT |
|
3" Ratchet Strap
w/-18201 wire hook (1/2")
Working Load Limit: 5,000lbs
(2,272kgs) B/S: 15,000(6,818kgs) |
| Part No. |
Strap Length |
| RS31810-W |
10FT |
| RS31812-W |
12FT |
| RS31816-W |
16FT |
| RS31820-W |
20FT |
| RS31825-W |
25FT |
| RS31830-W |
30FT |
|
3" Ratchet Strap
w/-38150 grab hook
Working Load Limit: 5,400lbs
(2,454kgs) B/S: 16,200(7,363kgs) |
| Part No. |
Strap Length |
| RS31810-G |
10FT |
| RS31812-G |
12FT |
| RS31816-G |
16FT |
| RS31820-G |
20FT |
| RS31825-G |
25FT |
| RS31830-G |
30FT |
|
3" Ratchet Strap
w/-18513 D ring
Working Load Limit: 6,000lbs
(2,727kgs) B/S: 18,000(8,181kgs) |
| Part No. |
Strap Length |
| RS31810-D |
10FT |
| RS31812-D |
12FT |
| RS31816-D |
16FT |
| RS31820-D |
20FT |
| RS31825-D |
25FT |
| RS31830-D |
30FT |
|
3" Ratchet Strap
w/-38163 chain anchor
Working Load Limit: 6,000lbs
(2,727kgs) B/S: 18,000(8,181kgs) |
| Part No. |
Strap Length |
| RS33310-C |
10FT |
| RS33312-C |
12FT |
| RS33316-C |
16FT |
| RS33320-C |
20FT |
| RS33325-C |
25FT |
| RS33330-C |
30FT |
|
¡@
¡@
4" Ratchet Straps, webbing b/s: 24,000lbs
4" Ratchet Strap
w/-18440 flat hook
Working Load Limit: 5,500lbs
(2,500kgs) B/S: 16,500(7,500kgs) |
| Part No. |
Strap Length |
| RS41810-F |
10FT |
| RS41812-F |
12FT |
| RS41816-F |
16FT |
| RS41820-F |
20FT |
| RS41825-F |
25FT |
| RS41830-F |
30FT |
|
4" Ratchet Strap
w/-18100 wire hook
Working Load Limit: 6,600lbs
(3,000kgs) B/S: 20,000lbs
(9,090kgs) |
| Part No. |
Strap Length |
| RS41810-W |
10FT |
| RS41812-W |
12FT |
| RS41816-W |
16FT |
| RS41820-W |
20FT |
| RS41825-W |
25FT |
| RS41830-W |
30FT |
|
4" Ratchet Strap
w/-18514 D ring
Working Load Limit: 6,600lbs
(3,000kgs) B/S: 20,000lbs
(9,090kgs) |
| Part No. |
Strap Length |
| RS41810-D |
10FT |
| RS41812-D |
12FT |
| RS41816-D |
16FT |
| RS41820-D |
20FT |
| RS41825-D |
25FT |
| RS41830-D |
30FT |
|
4" Ratchet Strap
w/-38164 chain anchor
Working Load Limit: 6,600lbs
(3,000kgs) B/S: 20,000lbs
(9,090kgs) |
| Part No. |
Strap Length |
| RS43310-C |
10FT |
| RS43312-C |
12FT |
| RS43316-C |
16FT |
| RS43320-C |
20FT |
| RS43325-C |
25FT |
| RS43330-C |
30FT |
|
¡@
¡@
Replacement Tail Ends
- Why replace the entire ratchet strap when all you need is
the short end?
- CTS tail ends are offered with a variety of end fittings
so you can replace the exact ratchet that you lost or build a custom unit to
suit your specific needs.
¡@
 |
| Part No. |
Webbing Width |
Working Load Limit |
| RT218-FXL |
2" |
3,335lbs |
| RT318-F |
3" |
5,000lbs |
| RT418-F |
4" |
5,500lbs |
|
 |
| Part No. |
Webbing Width |
Working Load Limit |

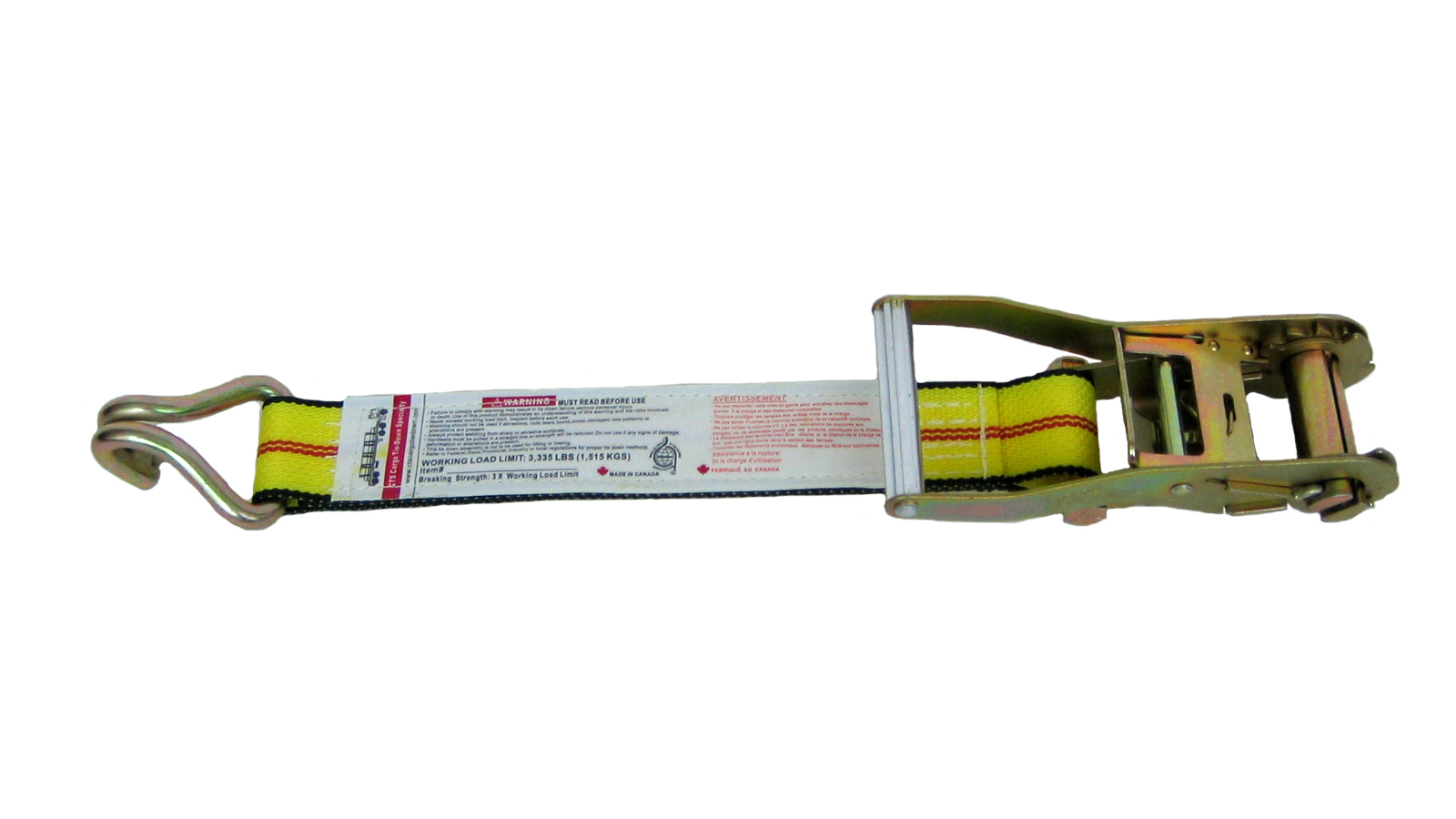

| RT218-WXL |
2" |
3,335lbs |
| RT318-W |
3" |
5,000lbs |
| RT418-W |
4" |
6,600lbs |
|
 |
| Part No. |
Webbing Width |
Working Load Limit |
| RT233-CL |
2" |
3,335lbs |
| RT333-C |
3" |
6,000lbs |
| RT433-C |
4" |
6,600lbs |
|
 |
| Part No. |
Webbing Width |
Working Load Limit |
| RT21802-F |
2" |
3,335lbs |
| RT31802-F |
3" |
5,000lbs |
| RT41802-F |
4" |
5,500lbs |
|
 |
| Part No. |
Webbing Width |
Working Load Limit |
| RT21802-W |
2" |
3,335lbs |
| RT31802-W |
3" |
6,000lbs |
| RT41802-W |
4" |
6,600lbs |
|
 |
| Part No. |
Webbing Width |
Working Load Limit |
| RT23302-C |
2" |
3,335lbs |
| RT33302-C |
3" |
6,000lbs |
| RT43302-C |
4" |
6,600lbs |
|
¡@
¡@
Endless Strap With Ratchet Buckles
 |
| Part No. |
Length |
Webbing Width |
Working Load Limit |
| ER220-L (long
wide handle) |
20FT |
2" |
3,335lbs |
| ER320 |
20FT |
3" |
5,000lbs |
| ER420 |
20FT |
4" |
6,000lbs |
Other lengths are available.
Part No. example ER x xx (width)
(length) |
¡@
Custom Stencilling
 |
- Custom stencilling available upon request.
- Contact your Customer Service Representative for more
details.
|
¡@ |
¡@
¡@
|
==============
