Breaking Strength (B/S) = 3 X Working
Load Limit (WLL)
Alternate hardware available, see hardware
section of catalogue
Webbing straps must be protected when used
on rough or sharp objects. Straps that are cut, worn or otherwise damaged
should not be used.
A strap is only as strong as its weakest
component.
| |
B/S = breaking strength
W.L.L. = Working Load Limit (1/3 of the breaking strength)
1" Ratchet Buckles
 |
 |
 |
| 70133 - 1" ratchet buckle |
70144 - 1" ratchet buckle |
70144-S - 1" ratchet buckle,
stainless steel |
| B/S: 3,300lbs
(1,500kgs) |
B/S: 3,300lbs
(1,500kgs) |
B/S: 3,300lbs
(1,500kgs) |
2" Ratchet Buckles
 |
 |
 |

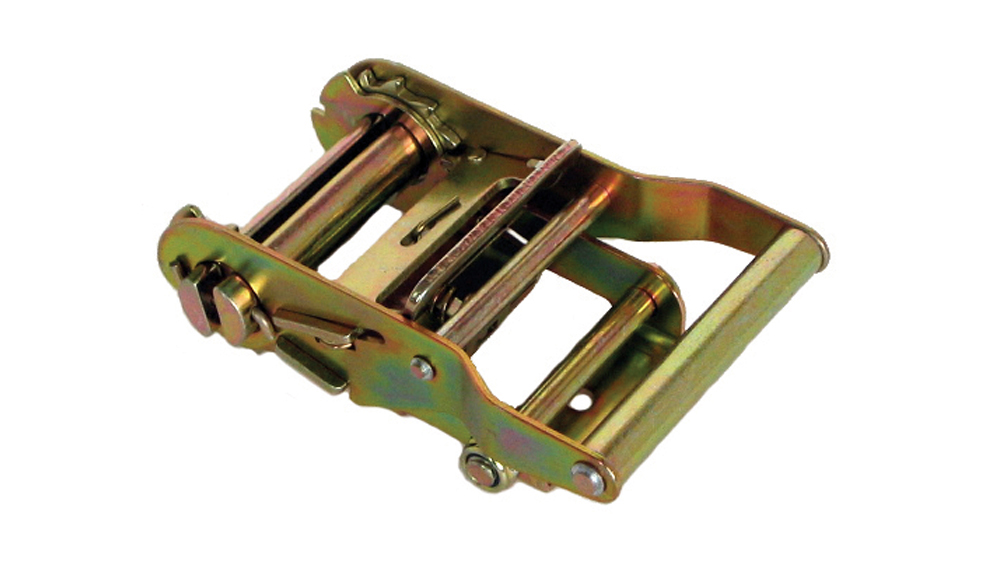

| 70244 - 2" ratchet buckle,
light duty |
70205 - 2" wrench ratchet buckle |

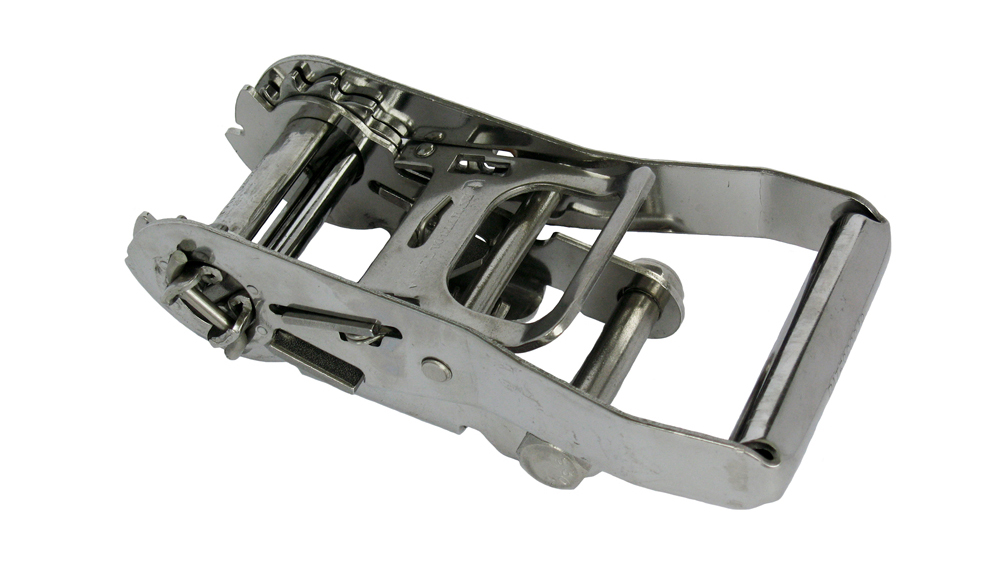

70202-S - 2" ratchet buckle, medium
handle, stainless steel |
| B/S: 4,400lbs
(2,000kgs) |
B/S: 10,000lbs
(4,545kgs) |
B/S: 6,600lbs
(3,000kgs) |
 double
lock |
single
lock |
 |
| 70203 -
2" ratchet buckle, short handle, |
70233 - 2" ratchet buckle, long handle |
70202-SN - 2" ratchet buckle
with snap hook |
| B/S: 11,000lbs
(5,000kgs) |
B/S: 11,000lbs
(5,000kgs) |
B/S: 6,600lbs
(3,000kgs) |
 double
lock |
single lock |
HEAVY
DUTY |
| 70202 - 2" ratchet buckle, medium handle |
70232 - 2" ratchet buckle, medium handle |
70262 - 2" ratchet buckle, short handle,
double lock |
| B/S: 11,000lbs
(5,000kgs) |
B/S: 11,000lbs
(5,000kgs) |
B/S: 13,200lbs
(6,000kgs) |
 double
lock |
single
lock |
HEAVY
DUTY |

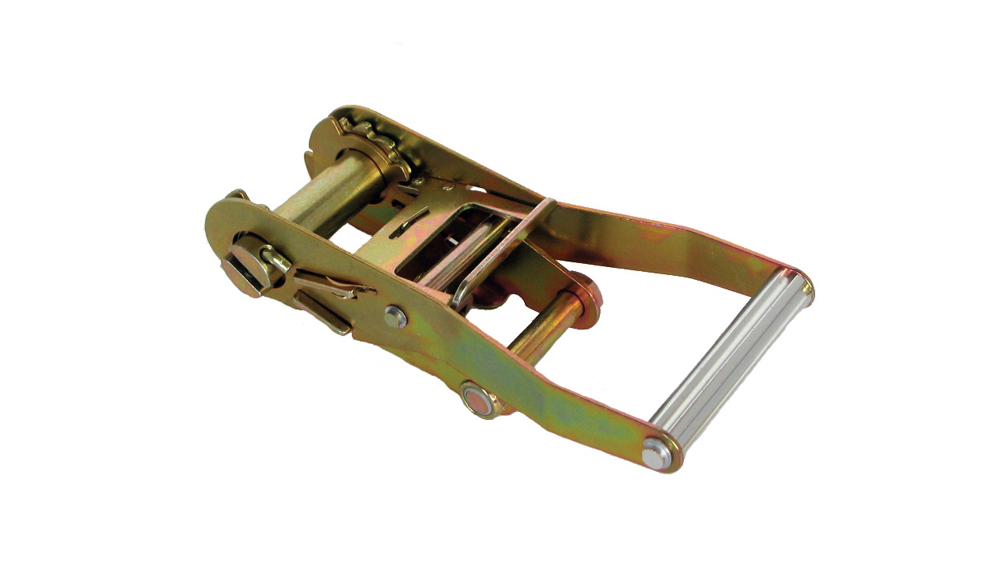

| 70201 -
2" ratchet buckle, short handle, |
70231 - 2" ratchet buckle, long handle, |
70261 - 2" ratchet buckle, long handle |
| B/S: 11,000lbs
(5,000kgs) |
B/S: 11,000lbs
(5,000kgs) |
B/S: 13,200lbs
(6,000kgs) |
 double
lock |
  back |
| 70206 - 2" reverse ratchet buckle |
70208 - 2" ratchet buckle
with 2 holes |
| B/S: 11,000lbs
(5,000kgs) |
B/S: 11,000lbs
(5,000kgs) |
| |
|
 |
 |
| 70204 - 2" ratchet buckle, 5/16"x10 links
G70 |
70207 - 2" ratchet buckle, 5/16" x 10
links G70 |
| B/S: 11,000lbs
(5,000kgs) |
B/S: 11,000lbs
(5,000kgs) |
 |
 |
 |
| 70211 - sleeve for ratchet bolt |
70213 - ratchet
bracket |
70212 - U bracket for ratchet bolt |
| |
|
|
3" Ratchet Buckles
 |
|
|
| 70300 - 3" ratchet buckle |
|
|
| B/S: 22,000lbs
(10,000kgs) |
|
|
4" Ratchet Buckles
 |
|
|
| 70400 - 4" ratchet buckle |
|
|
| B/S: 24,000lbs
(10,909kgs) |
|
|
| |
|
