Breaking Strength (B/S) = 3 X Working
Load Limit (WLL)
Alternate hardware available, see hardware
section of catalogue
Webbing straps must be protected when used
on rough or sharp objects. Straps that are cut, worn or otherwise damaged
should not be used.
A strap is only as strong as its weakest
component.
| |
B/S = breaking strength
W.L.L. = Working Load Limit (1/3 of the breaking strength)
Flat Hooks
 |
 |
 |
| 18450 - 1" gutter hook, P.E.
coated |
18452 - 1" flat hook |
18453 - 1" flat hook |
| |
B/S: 3,500lbs
(1,600kgs) |
B/S: 1,100lbs (500kgs) |
 |
 |
 |
| 18451 - 1" flat hook |
18320 - 2" narrow flat hook |
18300 - 2" flat hook |
| B/S: 3,500lbs
(1,600kgs) |
B/S: 5,000lbs (2,270kgs) |
B/S: 10,000lbs (4,540kgs) |
 |
 |
|
| 18440 - 3" flat hook |
18310 - 4" flat hook |
|
| B/S: 15,000lbs (6,818kgs) |
B/S: 16,500lbs (7,500kgs) |
|
Snap
Hooks
 |
 |
 |
| 18460 - 1" snap hook |
18462 - 1" snap hook |
38130 - 1" swivel snap hook |
| B/S: 3,000lbs
(1,363kgs) |
B/S: 3,000lbs
(1,363kgs) |
B/S: 132lbs (60kgs) |
 |
 |
 |
| 73000 - snap hook w/-grommet 100mmx10mm |
73001- snap hook, 100mmx10mm |
18020 - forged eye hook |
| B/S: 770lbs (350kgs) |
B/S: 770lbs (350kgs) |
B/S: 5,800lbs (2,636kgs) |
 |
 |
 |
| 18461 - double security lanyard forged hook |
18422 - forged snap hook |
18420 - 2" twisted snap hook |
| B/S: 6,600lbs (3,000kgs) |
B/S: 10,000lbs (4,540kgs) |
B/S: 11,000lbs (5,000kgs) |
 |
 |
 |
| 18410 - 2" snap hook |
18411 - 2" snap hook |
18421 - 2" snap hook |
| B/S: 6,000lbs (2,727kgs) |
B/S: 10,000lbs (5,000kgs) |
B/S: 11,000lbs (5,000kgs) |
 |
 |
| 18423 - conversion snap hook |
18423 - 2" triangle forged hook |
| B/S: 6,600lbs (3,000kgs) |
B/S: 11,000lbs (5,000kgs) |
 |
 |
|
| 18021 - forged eye hook |
38150 - 3/8" grab hook with link |
|
| B/S: 6,600lbs (3,000kgs) |
B/S: 16,200lbs (7,363kgs) |
|
Fall Protection Hardware
 |
 |
|
| 18464 - steel snap hook |

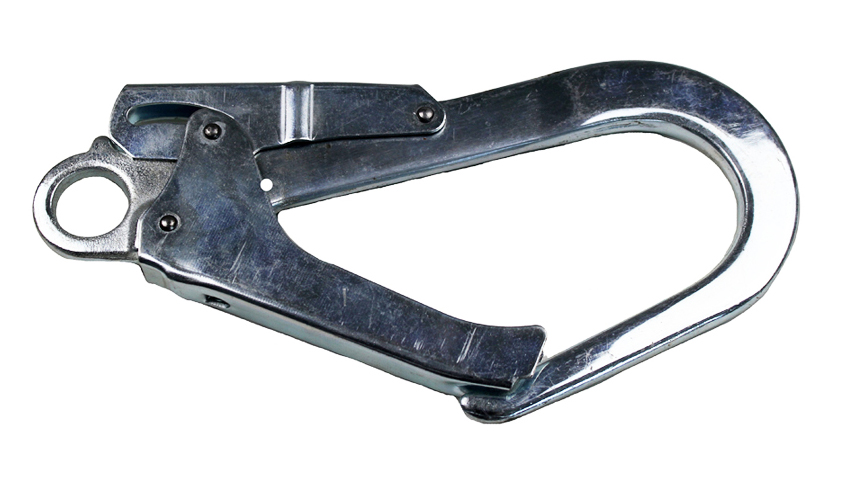

18465 - steel snap hook |
|
| B/S: 5,000lbs (2,272kgs) |
B/S: 5,000lbs (2,272kgs) |
|
 |
 |
|
| 18466 - steel carabiner |
18516 - 2" D-Ring, steel |
|
| B/S: 5,000lbs (2,272kgs) |
B/S: 10,000lbs (4,545kgs) |
|
Wire Hooks
 |
 |
  |
| 18222 - 1" narrow wire hook |
18220 - 1" wire hook |
18221 - 1" long wire hook,
18221-S stainless steel |
| B/S: 2,500lbs
(1,136kgs) |
B/S: 3,000lbs
(1,363kgs) |
B/S: 3,300lbs (1,500kgs) |
 |
 |
 |
| 18160 - 1" S-hook, P.E. coated |
18130 - 1" single J-hook |
18110 - 2" single J-hook |
| B/S: 2,500lbs (1,100kgs) |
B/S: 500lbs (227kgs) |
B/S: 7,000lbs (3,175kgs) |
 |
 |
 |
| 18111- 2" single J-hook |
38174 - double finger hook |
38173 - 1-3/4" swivel J-hook with screw |
| B/S: 11,000lbs (5,000kgs) |
B/S: 5,000lbs (2,270kgs) |
B/S: 6,600lbs (3,000kgs) |
 |
 |
|
| 38185 - 2"
swivel J-hook |
38175 -
single J-hook |
|
| B/S: 11,000lbs (5,000kgs) |
B/S: 3,000lbs (1,360kgs) |
|
 |
 |
 |
| 18203 - 2" x 1/4" wire hook |
18202- 2" x 3/8" wire hook |
18200- 2" x 7/16" wire hook |
| B/S: 1,500lbs (681kgs) |
B/S: 5,000lbs (2,270kgs) |
B/S: 11,000lbs (5,000kgs) |
 |
 |
 |
| 18201 - 2" x 1/2" wire hook |
18100 - 3" wire hook |
18210 - 2" x 7/16" wire hook w/-keeper |
| B/S: 15,000lbs (6,818kgs) |
B/S: 22,000lbs (10,000kgs) |
B/S: 11,000lbs (5,000kgs) |
 |
 |
 |
| 18260 - 2" claw hook |
18263 - 2" open hook |
18261 - 2" close rave hook |
| B/S: 6,600lbs (3,000kgs) |
B/S: 3,000lbs (1,360kgs) |
B/S: 2,500lbs (1,136kgs) |
 |
 |
 |
| 18200-S - 2" x 7/16" wire hook, stainless
steel |
38172 - J-hook |

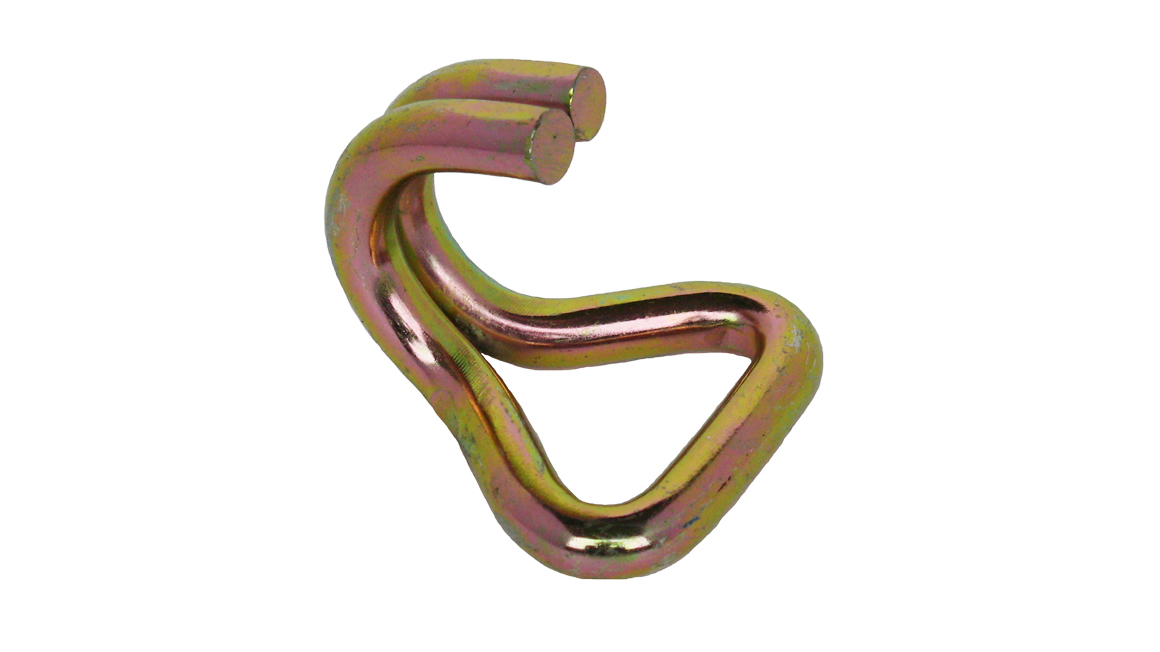

18205 - 2" x
7/16" wire hook |
| B/S: 4,400lbs (2,000kgs) |
B/S: 11,700lbs(5,318kgs) |
B/S: 6,600lbs (3,000kgs) |
 |
 |
 |
| 18161 - 1" snap hook,
black paint |

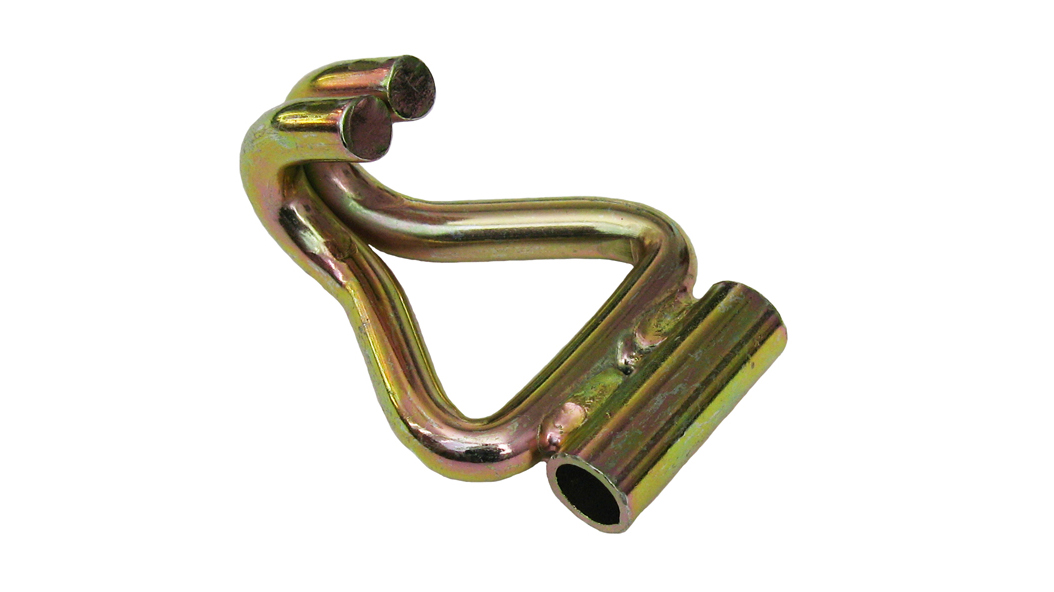

18207 - 2"
x 7/16" wire hook with welded tube |

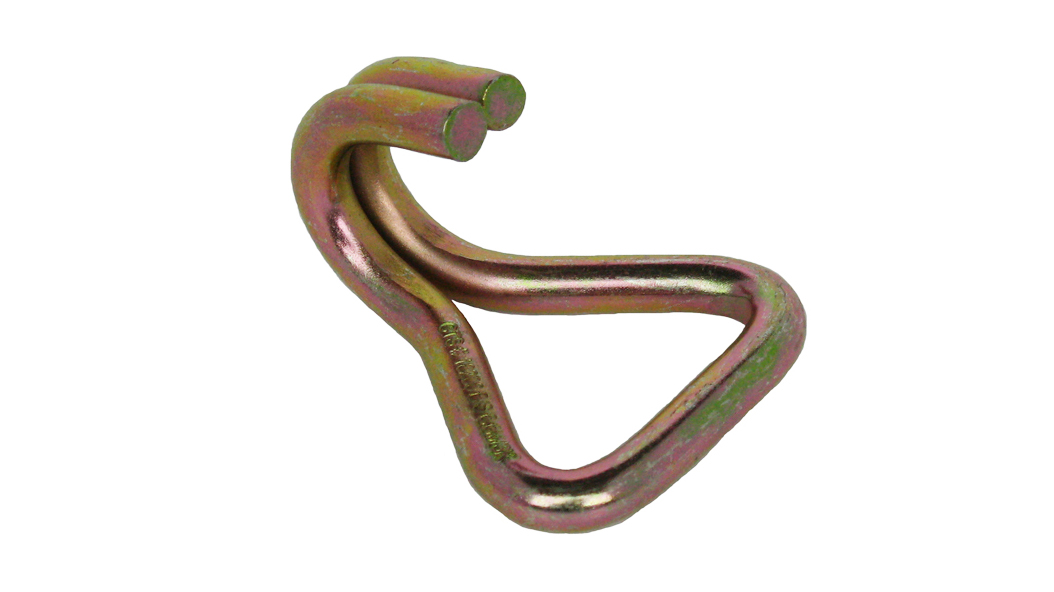

18206 - 2" x
3/8" wire hook |
| B/S: 1,200lbs (545kgs) |
B/S: 11,000lbs(5,000kgs) |
B/S: 6,600lbs (3,000kgs) |
| |
|
