Breaking Strength (B/S) = 3 X Working
Load Limit (WLL)
Alternate hardware available, see hardware
section of catalogue
Webbing straps must be protected when used
on rough or sharp objects. Straps that are cut, worn or otherwise damaged
should not be used.
A strap is only as strong as its weakest
component.
¡@
| |

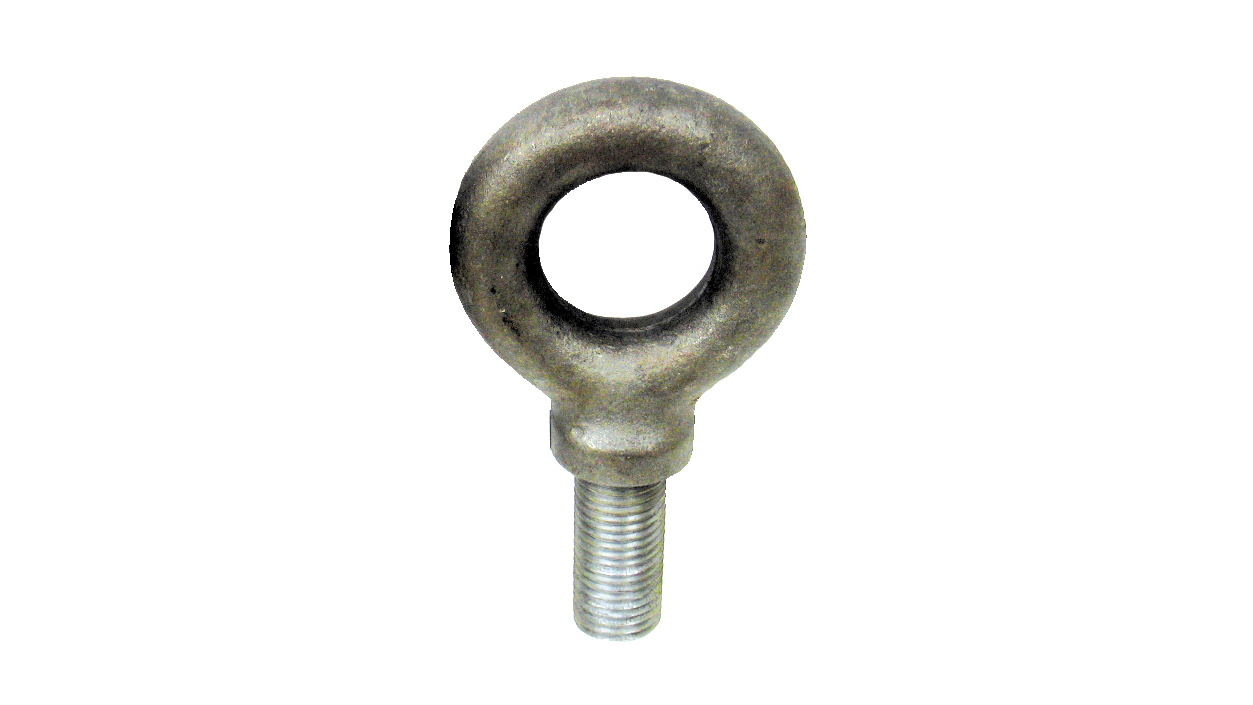

Eye Bolts
- Shoulder pattern
- Forged
- 1030 carbon steel
- Self-color
- safe working load permanently shown on each eye bolts.
 |
|
P/N |
Thread Size |
Shank Length |
I.D. Eye |
O.D. Eye |
Overall Length |
Rated Load (lbs) |
| 83001 |
1/4" |
1" |
3/4" |
1-3/16" |
2-3/8" |
500 |
| 83002 |
5/16" |
1-1/8" |
7/8" |
1-7/16" |
2-13/16" |
900 |
|
83003 |
3/8" |
1-1/4" |
1" |
1-11/16" |
3-1/4" |
1,300 |
| 83007 |
7/8" |
2-1/4" |
1-11/26" |
3-3/16" |
6" |
7,000 |
|
83008 |
1" |
2-1/2" |
1-13/16" |
3-9/16" |
6-5/8" |
9,000 |
|
¡@
¡@
¡@ | |
¡@
|
