Breaking Strength (B/S) = 3 X Working
Load Limit (WLL)
Alternate hardware available, see hardware
section of catalogue
Webbing straps must be protected when used
on rough or sharp objects. Straps that are cut, worn or otherwise damaged
should not be used.
A strap is only as strong as its weakest
component.
¡@
| |
B/S = breaking strength
W.L.L. = Working Load Limit (1/3 of the breaking strength)
Chain Anchors
 |
 |
 |
| 38162 - 2" chain anchor, 5/16"
links/hook, G70 |
38163 - 3" chain anchor, 3/8" links/hook, G70 |
38163-5 - 3" chain anchor, 5/16" links/hook,
G70 |
| B/S: 10,000lbs
(4,540kgs) |
B/S: 18,000lbs
(8,181kgs) |
B/S: 16,200lbs
(7,363kgs) |
 |
 |
 |
| 38164 - 4" chain anchor, 3/8"
links/hook, G70 |
38160 - 5/16" x 15.5" chain w/hook, G70 |

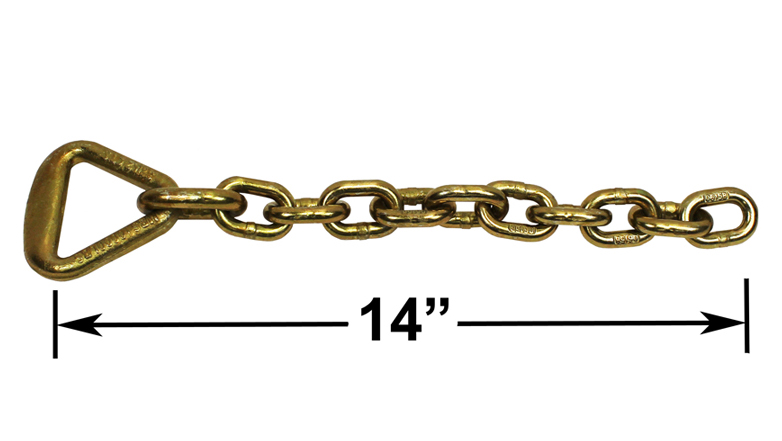

38161 - 5/16" x
10 link chain w/D-ring only, G70 |
| B/S: 20,000lbs
(9,090kgs) |
B/S: 16,200lbs
(7,363kgs) |
B/S: 10,000lbs
(4,540kgs) |
¡@
Grab Hook w/-Link
 |
 |
¡@ |
| 38150 - 3/8" grab hook |
18022 - 2"
triangle forged hook |
¡@ |
| B/S: 16,200lbs
(7,363kgs) |
B/S: 11,000lbs
(5,000kgs) |
¡@ |
¡@
Cluster Hooks
 |
 |
 |
| 38170 -
cluster RTG-hook |
38171 -
cluster RTJG-hook |
38172 - J-hook |
| B/S: 11,700lbs(5,318kgs) |
B/S: 11,700lbs(5,318kgs) |
B/S: 11,700lbs(5,318kgs) |
| |
¡@
|
