Breaking Strength (B/S) = 3 X Working
Load Limit (WLL)
Alternate hardware available, see hardware
section of catalogue
Webbing straps must be protected when used
on rough or sharp objects. Straps that are cut, worn or otherwise damaged
should not be used.
A strap is only as strong as its weakest
component.
| |
B/S = breaking strength
W.L.L. = Working Load Limit (1/3 of the breaking strength)
1" Cam Buckles
 |
 |
 |
| 18240 - 1" cam buckle |
18230 - 1" cam buckle |
18231 - 1" cam buckle |
| B/S: 770lbs
(350kgs) |
B/S: 1,500lbs
(681kgs) |
B/S: 1,800lbs
(818kgs) |
 |
 |
 |
| 18232 - 1" T.C.S. cam buckle |

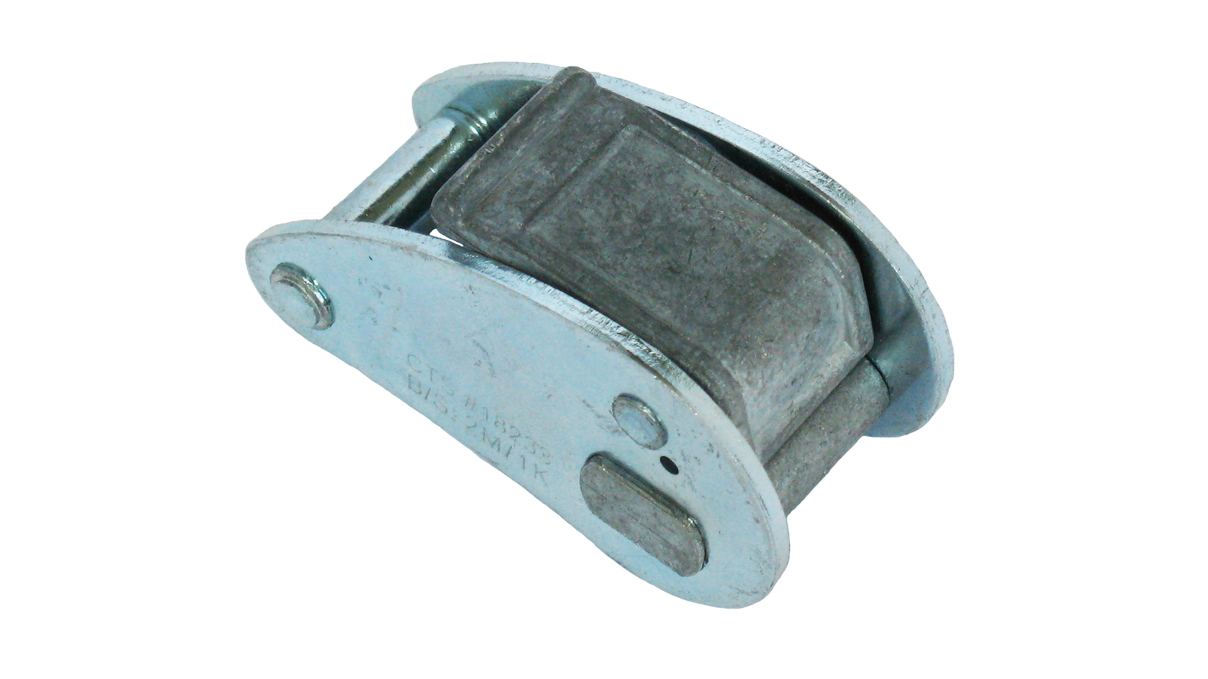

18233 - 1" cam buckle |
18234 - 1"
military spring buckle (black) |
| B/S: 1,000lbs
(454kgs) |
B/S: 2,420lbs
(1,100kgs) |
18236-
zinc plated, 18235-nickel plated |
2" Cam Buckles
 |
 |
|
| 18250 - 2" cam buckle |
18230 - 2" T.C.S. cam buckle |
|
| B/S: 3,000lbs
(1,363kgs) |
B/S: 3,300lbs
(1,500kgs) |
|
Seat Belt Buckles
 |
 |
 |
| 10910 - seat belt buckle |
10920 - seat belt buckle |
Plastic side release buckles |
| (buckle, tongue & bar, cover) |
(buckle, tongue & bar, cover) |
3/4", 1", 1.5",
2" |
| |
|
