Breaking Strength (B/S) = 3 X Working
Load Limit (WLL)
Alternate hardware available, see hardware
section of catalogue
Webbing straps must be protected when used
on rough or sharp objects. Straps that are cut, worn or otherwise damaged
should not be used.
A strap is only as strong as its weakest
component.
| |

WARNING
- Always secure any vehicle for transport
by four points.
- Do not attempt to use strap above rated
capacity.
- Breaking Strength (B/S) = 3 X
Working Load Limit (W.L.L)
- Alternate hardware available, see
hardware section of catalogue
- Webbing straps must be protected
when used on rough or sharp objects. Straps that are cut, worn or otherwise
damaged should not be used.
- A strap is only as strong as its
weakest component.
 |
- Custom stenciling available upon request.
- Contact your Customer Service Representative for more
details.
|
|
Auto Tie-Downs
Auto Tie-Down w/-18410 snap hook
Working Load Limit:
1,666lbs
(754kgs)
Assembly Breaking Strength: 5,000lbs (2,272kgs) |
| Part No. |
Strap Length |
| AT21205-S |
5FT |
| AT21208-S |
8FT |
| AT21210-S |
10FT |
| AT21212-S |
12FT |
|
|
AT15042
Axle/Auto Tie-Down Combination
Strap w/-Twisted snap hook , 8 ft.
|
An axle strap and tie-down strap all
in one. Simply wrap the adjustable strap end
around the vehicle axle, snap it onto the triangle, attach the other end
to your bed and then ratchet down tight.
Assembly Breaking Strength: 5,000lbs (2,272kgs)
Working Load Limit:
1,666lbs
(754kgs) |
|
AT15043
Auto Tie-Down w/-RTJ cluster hook,
8 ft.
|
Ratchet a car down tight without
having to move it. This assemblies let you
quickly adjust their length from 26 inches to 8 feet so they can be used
on either the front or rear of your car carrier bed. One end
features a cluster hook and other end has a 5/16" x 12" length of chain
to slip into bed slots.
Assembly Breaking Strength: 5,000lbs (2,272kgs)
Working Load Limit:
1,666lbs
(754kgs) |
|
AT15044
Auto Tie-Down w/-RTJ cluster hook
& 18410 snap hook, 8 ft.
|
This assemblies let you quickly adjust their length from
26 inches to 8 feet so they can be used on either the front or rear of
your car carrier bed. One end features a cluster hook and other
end has a snap hook to attached to D-Rings.
Assembly Breaking Strength: 5,000lbs (2,272kgs)
Working Load Limit:
1,666lbs
(754kgs) |
|
AT15045
Auto Tie-Down w/-Twisted snap
hook, 8 ft.
|
The twisted snap hook has the right
angle for simple, one-handed attachments.
This tie-down feature twisted snap hook that let you fasten it without
having to twist the entire strap to get the correct angle for
attachment. The chain end style is ideal for use on beds with
T-slots.
Assembly Breaking Strength: 5,000lbs (2,272kgs)
Working Load Limit:
1,666lbs
(754kgs) |
|
AT15038
Auto Tie-Down w/-RTJ cluster hook
& spring E fitting, 5 ft.
|
These straps feature an E track end fitting on the fixed
end and a cluster hook on the adjustable end includes a 12" wear sleeve
to protect the strap against damage.
- Standard fixed end - 12"
- AT15038-8 (8ft.)
- AT15038-10 (10ft.)
Assembly Breaking Strength: 4,400lbs (2,000kgs)
Working Load Limit:
1,460lbs
(663kgs) |
|
AT15039
Auto Tie-Down w/-J hook and spring
E fitting, 5 ft.
|
This straps feature Y strap with E track end fittings on
the fixed end and a long single J hook (18110) on the adjustable end
includes a 12" wear sleeve to protect the strap against damage.
Standard fixed end - 24"
Assembly Breaking Strength: 4,400lbs (2,000kgs)
Working Load Limit:
1,460lbs
(663kgs) |
Mix and match styles to make your own unique
tie-down systems
Loops around the tire and attaches with a ratchet to the wheel
lift forks. |
Loops around the tire and attaches with a ratchet to the
wheel lift. Loops are reinforced with wear sleeve to protect
rims from damage. |
 Wrap
the adjustable strap end around the vehicle axle, snap it onto the
triangle. |
| A208-D -
8 ft. lasso strap |
A208-L - 8
ft. loop strap |
A208-TSD -
8 ft. adjustable axle tie-down |
| Working Load Limit: 1,666lbs(754kgs) |
Working Load Limit: 1,666lbs(754kgs) |
Working Load Limit: 1,666lbs(754kgs) |
 |
 |
 |
| RT208-SNS -
8 inch ratchet tail |
RT208-TSM -
8 inch ratchet tail |
RT208-WM -
8 inch ratchet tail |
| Working Load Limit: 1,666lbs(754kgs) |
Working Load Limit: 1,666lbs(754kgs) |
Working Load Limit: 1,666lbs(754kgs) |
Axle straps, prevent damage to exotic or antique
vehicles
Single-ply axle strap with wear sleeve, Working Load Limit:
1,666lbs
(754kgs) |
| Part No. |
Strap Length |
| X218 |
18" |
| X224 |
24" |
| X228 |
28" |
| X236 |
36" |
|
Triple-ply axle strap Working Load Limit:
3,335lbs
(1,515kgs) |
| Part No. |
Strap Length |
| X218-3 |
18" |
| X224-3 |
24" |
| X228-3 |
28" |
| X236-3 |
36" |
|
Towing Tie-Downs
Dolly Straps |
1" x 8' dolly straps |
Working Load Limit:
1,000lbs
RS11008-SNL - RED
RS11008-SNL - BLUE
RS11008-SNL - YELLOW |
|
TS430
Vehicle Recovery Loop, 30 ft.
|
Vehicle recovery loops recover vehicles without damage.
Simply open the doors of the vehicle and pass the recovery loop along
the floor behind the seat. Center the loop, then close the doors
to the safety catch point. Nest, position the loop ends under the
car to the front or rear and shackle or hook them together. Then
start winching! Made of durable 2 ply 4" inch webbing with wear
sleeve reinforced tapered sewing eyes on each end. Working Load Limit:
6,400lbs
vertical, 12,800lbs basket |
Towing Slings
|
Rated Capacity -
Safety Factor= 5:1 |
| 1 PLY
Rated Capacity - Types V
Safety Factor= 5:1Rated Capacity - Types V
Safety |
|
WIDTH (Inch) |
Vertical Lift (lbs) |
Choked Lift (lbs) |
Basket Lift (lbs) |
| 1" |
1,600 |
1,280 |
3,200 |
|
2" |
3,100 |
2,480 |
6,200 |
| 3" |
4,700 |
3,760 |
9,400 |
|
4" |
6,200 |
4,960 |
12,400 |
| 5" |
7,800 |
6,240 |
15,600 |
|
6" |
9,300 |
7,440 |
18,600 |
| 8" |
11,800 |
9,440 |
23,600 |
|
10" |
14,700 |
11,760 |
29,400 |
| 12" |
17,600 |
14,080 |
35,200 |
|
WIDTH (Inch) |
Vertical Lift (lbs) |
Choked Lift (lbs) |
Basket Lift (lbs) |
| 1" |
3,100 |
2,480 |
6,200 |
|
2" |
6,200 |
4,960 |
12,400 |
| 3" |
8,800 |
7,040 |
17,600 |
|
4" |
11,000 |
8,800 |
22,000 |
| 5" |
13,700 |
10,960 |
27,400 |
|
6" |
16,500 |
13,200 |
33,000 |
| 8" |
22,700 |
18,160 |
45,400 |
|
10" |
28,400 |
22,720 |
56,800 |
| 12" |
34,100 |
27,280 |
68,200 |
Towing Round Slings
| Round slings are easy to use, efficient
in operation and gentle on surface contact. All round slings are
color coded to give easy identification of the safe working load.
The round sling inner core is made from high tensile polyester fiber
which is wound continuously without a join to provide the maximum
possible strength. This core is protected by a tough woven tubular
2-ply sleeve also made from polyester without side stitch. |

|
Rated Capacity - Round Sling
Safety Factor= 5:1 |
|
Part No. |
Color Coded |
Vertical Lift (lbs) |
Choked Lift (lbs) |
Basket Lift (lbs) |
| RSEN-03 |
Purple |
3,000 |
2,400 |
6,000 |
|
RSEN-04 |
Black |
4,000 |
3,200 |
8,000 |
| RSEN-06 |
Green |
6,000 |
4,800 |
12,000 |
|
RSEN-09 |
Yellow |
9,000 |
7,200 |
18,000 |
| RSEN-12 |
Brown |
12,000 |
9,600 |
24,000 |
|
RSEN-14 |
Red |
14,000 |
11,200 |
28,000 |
| RSEN-17 |
Orange |
17,000 |
13,600 |
34,000 |
|
RSEN-23 |
Blue |
23,000 |
18,400 |
46,000 |
| RSEN-26 |
Orange |
26,000 |
20,800 |
52,000 |
|
RSEN-32 |
Grey |
32,000 |
25,600 |
64,000 |
| RSEN-40 |
Orange |
40,000 |
32,000 |
80,000 |
|
|
**When ordering, just add a number behind our part no. to
specify the working length in feet.
WARNING: DO NOT EXCEED RATED CAPACITIES
Towing V-Assemblies
|

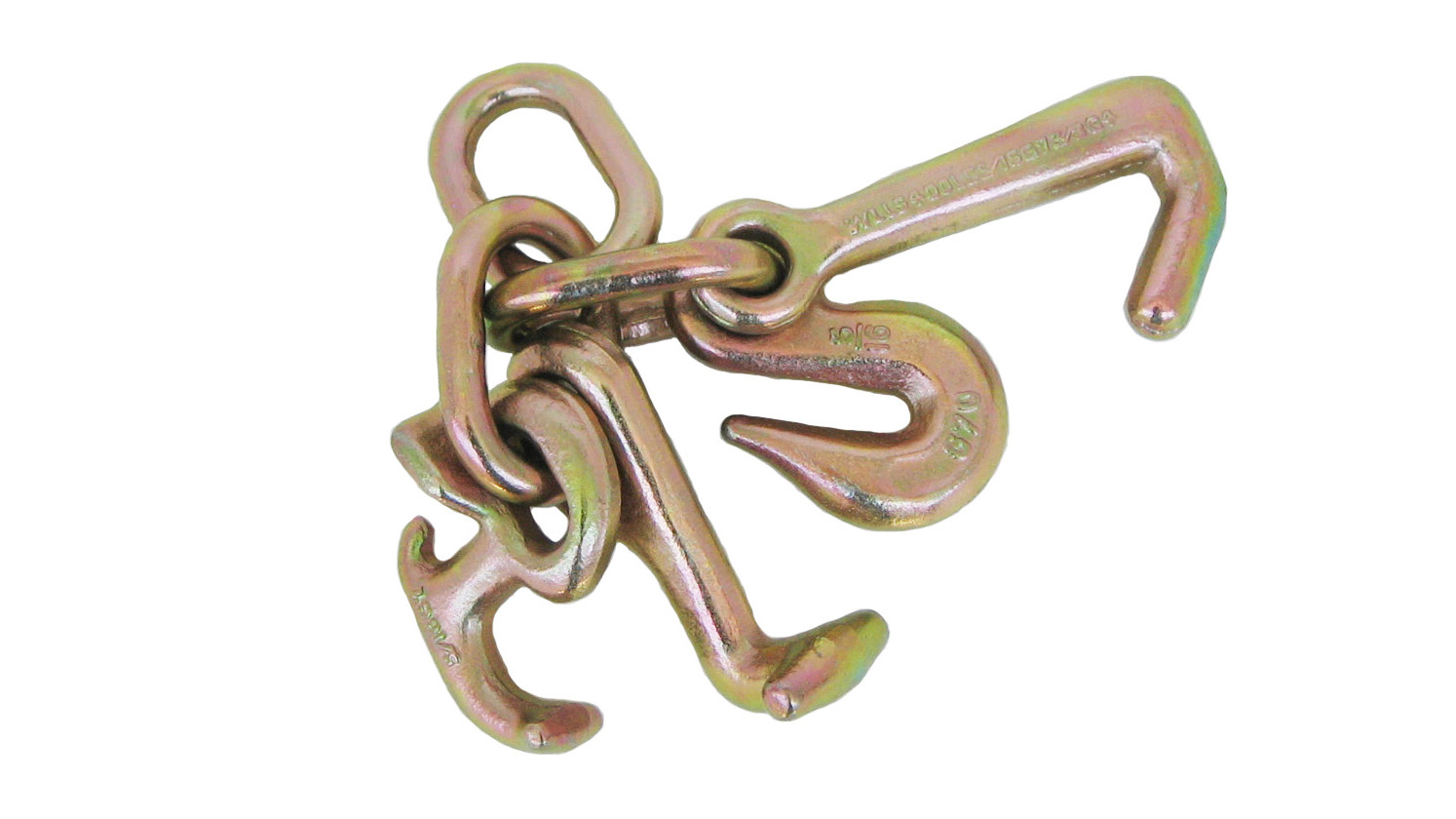

V-Assembly w/-RTJ cluster hook
|
The abrasion resistant webbing is gentle on the vehicle,
but extremely tough for heavy applications. The heavy duty forged
3/4" master ring is pear shaped to accept your winch hook easily.
- Each leg is constructed of 3" 3-ply webbing.
- Standard Leg lengths: 24" and 30"
- Working Load Limit:
4,700lbs
- VA330-RTJ 30"
leg
- VA324-RTJ 24"
leg
* Not for recovery or for overhead
lifting. |
|
V-Assembly w/-8" J-hook
|
Ideal for compact cars
- Each leg is constructed of 3" 3-ply webbing.
- Standard Leg lengths: 24" and 30"
- Working Load Limit:
4,700lbs
- VA330-J08 30"
leg
- VA324-J08 24"
leg
* Not for recovery or for overhead
lifting. |
|

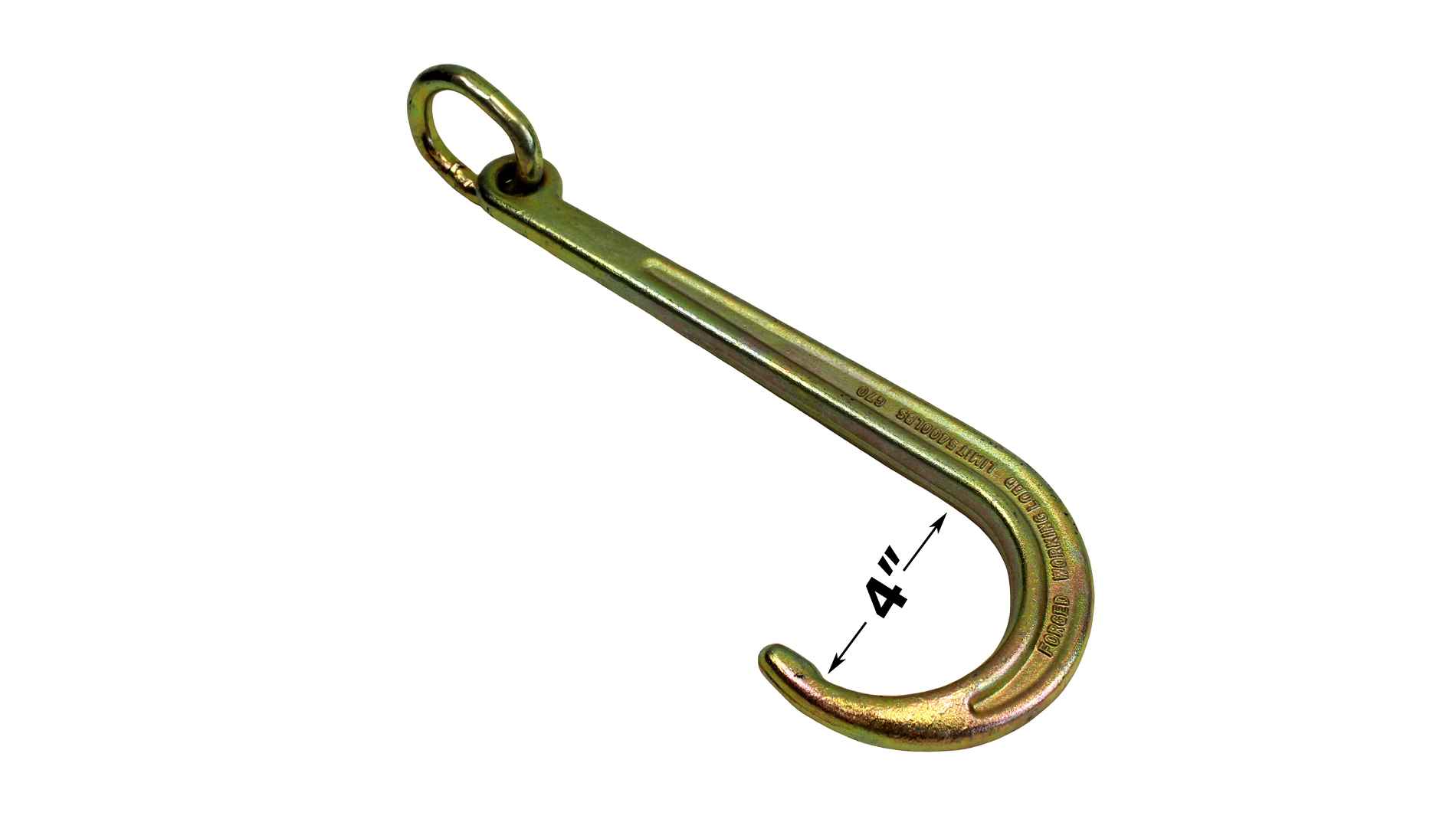

V-Assembly w/-15" J-hook
|
Make reaching your hook-up point easier
- Each leg is constructed of 3" 3-ply webbing.
- Standard Leg lengths: 24" and 30"
- Working Load Limit:
4,700lbs
- VA330-J15 30"
leg
- VA324-J15 24"
leg
* Not for recovery or for overhead
lifting. |
|

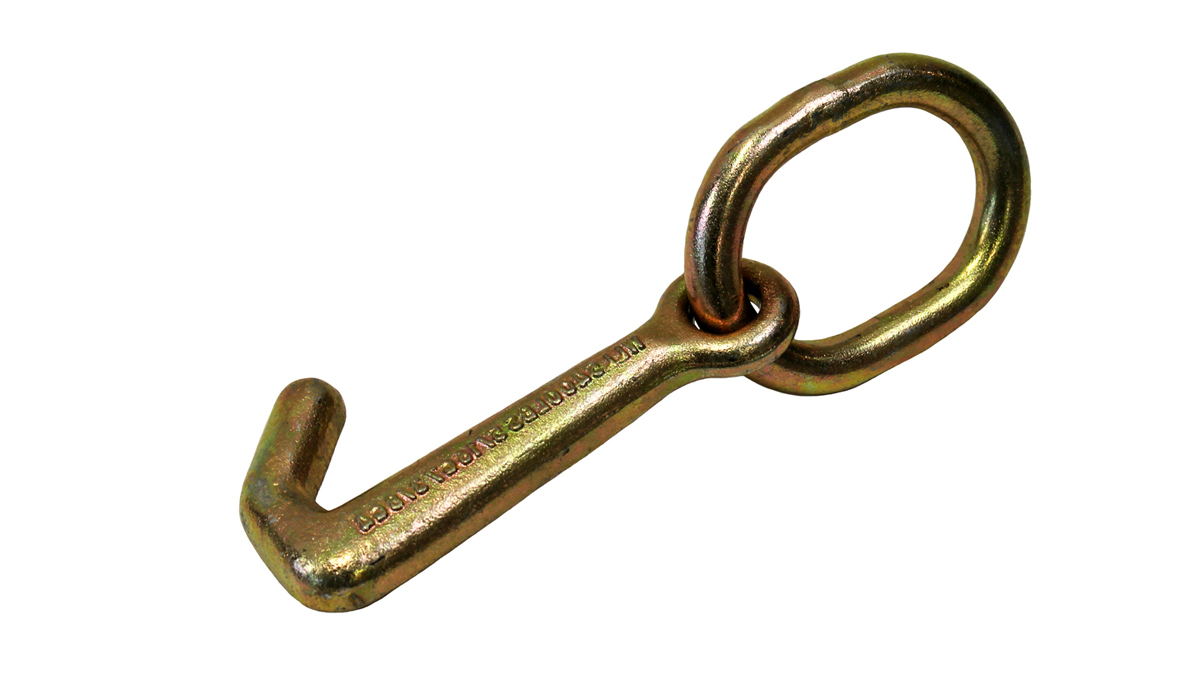

V-Assembly w/-Mini J-hook
|
- Each leg is constructed of 3" 3-ply webbing.
- Standard Leg lengths: 30" and 36"
- Working Load Limit:
4,700lbs
- VA330-J04 30"
leg
- VA336-J04 36"
leg
* Not for recovery or for overhead
lifting. |
|
Axle Strap V-Assembly
|
Built in axle straps prevent damage during hook-up.
Ideal for high end or luxury vehicles where metal
hooks can cause damage.
- Each leg is constructed of 2" x 2-ply sling webbing.
- Standard Leg lengths: 48" and 72"
- Working Load Limit:
4,700lbs
- VA272-TS 72"
leg
- VA248-TS 48"
leg
* Not for recovery or for overhead
lifting. |
Towing Chain V-Assemblies
|
V-Chain w/-RTJ cluster hook
|
- 5/16" x G70 chain
- Working Load Limit:
4,700lbs
- VC536-RTJ 36"
leg
- VC572-RTJ 72"
leg
* Not for recovery or for overhead
lifting. |
|
V-Chain w/-Mini J-hook
|
- 5/16" x G70 chain
- Working Load Limit:
4,700lbs
- VC536-J04 36"
leg
- VC572-J04 72"
leg
* Not for recovery or for overhead
lifting. |
|
V-Chain w/-8" J-hook + Mini-J hook
|
- 5/16" x G70 chain
- Working Load Limit:
4,700lbs
- VC530-J08-J04
30"
leg
* Not for recovery or for overhead
lifting. |
|
V-Chain w/-8" J-hook
|
- 5/16" x G70 chain
- Working Load Limit:
4,700lbs
- VC524-J08 24"
leg
* Not for recovery or for overhead
lifting. |
|
V-Chain w/-8" J-hook
|
- 5/16" x G70 chain
- Working Load Limit: 4,700lbs
- VC530-J08 30"
leg
* Not for recovery or for overhead
lifting. |
|
V-Chain w/-15" J-hook
|
- 5/16" x G70 chain
- Working Load Limit:
4,700lbs
- VC524-J15 24"
leg
* Not for recovery or for overhead
lifting. |
|
V-Chain w/-15" J-hook
|
- 5/16" x G70 chain
- Working Load Limit: 4,700lbs
- VC530-J08 30"
leg
* Not for recovery or for overhead
lifting. |
|
V-Chain w/-8" J-hook + T-hook
|
- 5/16" x G70 chain
- Working Load Limit: 4,700lbs
- VC530-J08-T
30"
leg
* Not for recovery or for overhead
lifting. |
Tie-Down Hook Assemblies
 |
 |
 |
| 38178 -
15" J-hook |
38177 -
8" J-hook |
38179 -
mini J-hook |
| Working Load Limit: 4,700lbs |
Working Load Limit: 4,700lbs |
Working Load Limit: 4,700lbs |
 |
 |
|
| 38170 -
cluster RTG-hook |
38171 -
cluster RTJG-hook |
|
| Working Load Limit: 3,900bs(1,772kgs) |
Working Load Limit: 3,900lbs(1,772kgs) |
|
Transport Chains, G70
Grade 70 transport chains designed to fit the conventional
auto transport hauler, these assemblies are made of light weight 1/4"
diameter.
*Transport chain assemblies are not
recommended for use as a tow chain.
1/4" G70 transport chain w/-cluster RTJ-hook |
| Part No. |
Length |
| 38170-4 |
4 ft. |
| 38170-5 |
5 ft. |
| 38170-6 |
6 ft. |
| 38170-8 |
8 ft. |
Working Load Limit:
3,150lbs
(1,431kgs) |
1/4" G70 transport chain w/-cluster RTJG-hook |
| Part No. |
Strap Length |
| 38171-4 |
4 ft. |
| 38171-5 |
5 ft. |
| 38171-6 |
6 ft. |
| 38171-8 |
8 ft. |
Working Load Limit:
3,150lbs
(1,431kgs) |
| |
|
