1" Tie-Downs

[ Lap Belts ] [ 1" Tie-Downs ]

Breaking Strength (B/S) = 3 X Working Load Limit (WLL)

Alternate hardware available, see hardware section of catalogue

Webbing straps must be protected when used on rough or sharp objects. Straps that are cut, worn or otherwise damaged should not be used.

A strap is only as strong as its weakest component.

These 1" light-duty tie-downs can be used on pick-up trucks, utility trailers, car top racks, boat trailers. All ratchet straps are labeled to meet DOT regulations and WSTDA recommended.

Alternate hardware and custom lengths are available upon requested.
Webbing breaking strength 4,000lbs.
Colors: blue/red/black

WARNING

Do not attempt to use strap above rated capacity.
Breaking Strength (B/S) = 3 X Working Load Limit (W.L.L)
Alternate hardware available, see hardware section of catalogue
Webbing straps must be protected when used on rough or sharp objects. Straps that are cut, worn or otherwise damaged should not be used.
A strap is only as strong as its weakest component.

1" Utility Tie-Downs

1" Ratchet strap w/-18160 S hook and 70144 ratchet buckle

Working Load Limit: 800lbs (363kgs)

Part No.	Strap Length
RS11208-S	8 ft.
RS11210-S	10 ft.
RS11212-S	12 ft.
RS11215-S	15 ft.
RS11220-S	20 ft.

1" Ratchet strap w/-18220 wire hook and 70144 ratchet buckle

Working Load Limit: 1,000lbs (454kgs)

Part No.	Strap Length
RS11808-W	8 ft.
RS11810-W	10 ft.
RS11812-W	12 ft.
RS11816-W	15 ft.
RS11820-W	20 ft.

1" Ratchet strap w/-18222 wire hook + D ring and ratchet buckle

Working Load Limit: 800lbs (363kgs)

Part No.	Strap Length
RS11808-HD	8 ft.
RS11810-HD	10 ft.
RS11812-HD	12 ft.
RS11816-HD	15 ft.
RS11820-HD	20 ft.

1" Ratchet strap w/-18221 wire hook and 70144 ratchet buckle

Working Load Limit: 1,100lbs (500kgs)

Part No.	Strap Length
RS11808-WXL	8 ft.
RS11810-WXL	10 ft.
RS11812-WXL	12 ft.
RS11816-WXL	15 ft.
RS11820-WXL	20 ft.

1" Ratchet strap w/-18460 snap hook and 70144 ratchet buckle

Working Load Limit: 1,000lbs (454kgs)

Part No.	Strap Length
RS11808-SN	8 ft.
RS11810-SN	10 ft.
RS11812-SN	12 ft.
RS11816-SN	15 ft.
RS11820-SN	20 ft.

1" Ratchet strap w/-18222 wire hook and 70144 ratchet buckle

Working Load Limit: 800lbs (454kgs)

Part No.	Strap Length
RS11808-H	8 ft.
RS11810-H	10 ft.
RS11812-H	12 ft.
RS11816-H	15 ft.
RS11820-H	20 ft.

1" Motorcycle Cam Strap w/-18160 S hook and 18230 cam buckle

Working Load Limit: 500lbs (227kgs)

Part No.	Strap Length
MT10305	5 ft.
MT10306	6 ft.
MT10308	8 ft.
MT10310	10 ft.
MT10312	12 ft.

Sold in pairs

1" Ratchet Endless Strap w/-70144 ratchet buckle

Working Load Limit: 1,100lbs (500kgs)

Part No.	Strap Length
ER105	5 ft.
ER106	6 ft.
ER108	8 ft.
ER110	10 ft.
ER112	12 ft.

Other lengths are available upon requested

1" Cam Strap w/-73000 snap hook and 18231 cam buckle

Working Load Limit: 250lbs (113kgs)

Part No.	Strap Length
IFS13650	50 ft. (blue)
IFS13675	75 ft. (red)

Other lengths are available upon requested

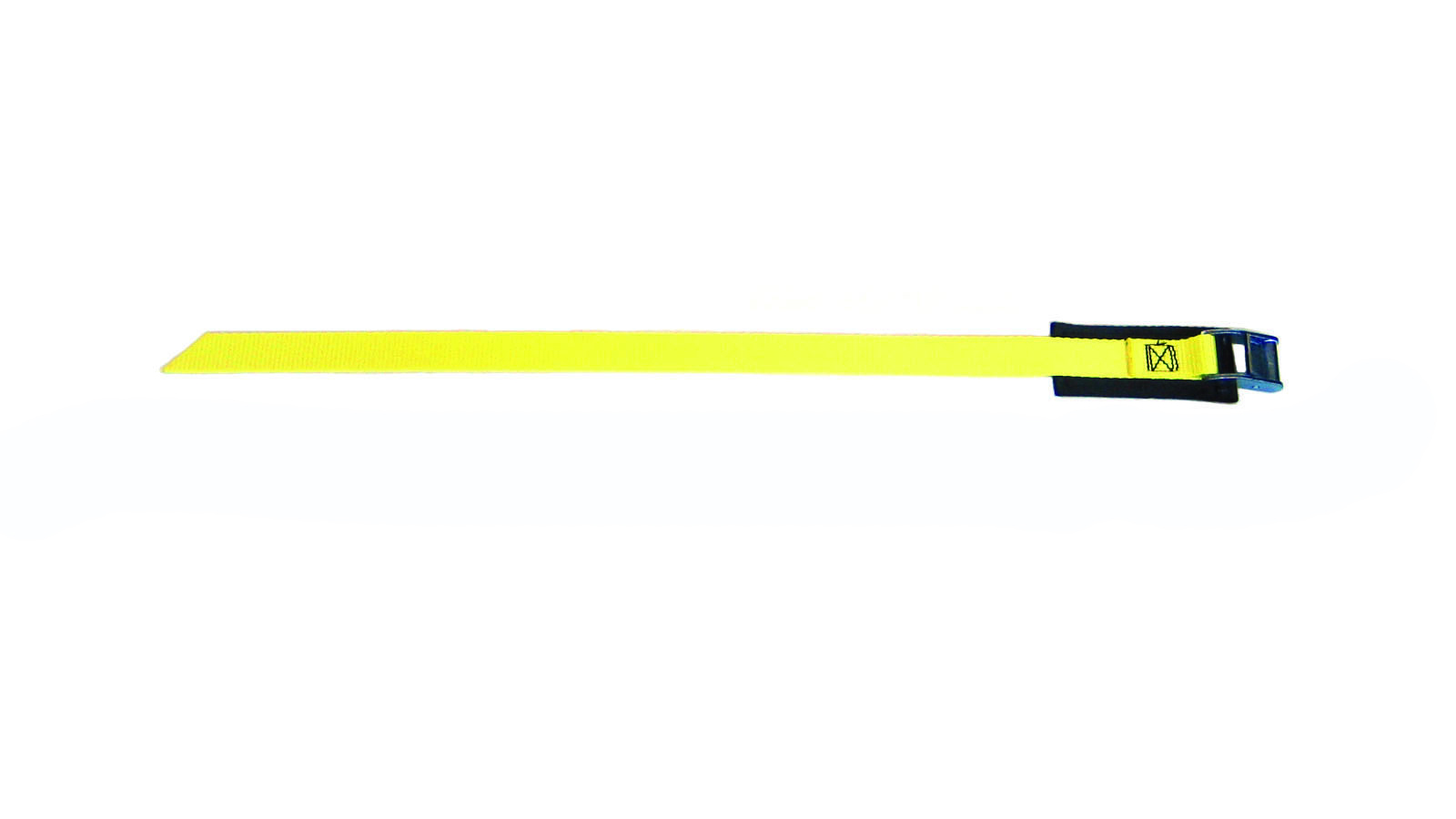

EC112-WP

Working Load Limit: 250lbs (113kgs)

Part No.	Strap Length
EC112-WP	12 ft.
EC115-WP	15 ft.
EC120-WP	20 ft.

1" x 12' Cam Endless Straps with wear pad

High quality straps, rustproof cam buckles secure canoes, kayaks or equipment to your vehicle or boat cart.

Protective pad under the buckle to protect your canoe's surface.

Webbing b/s: 2,500lbs

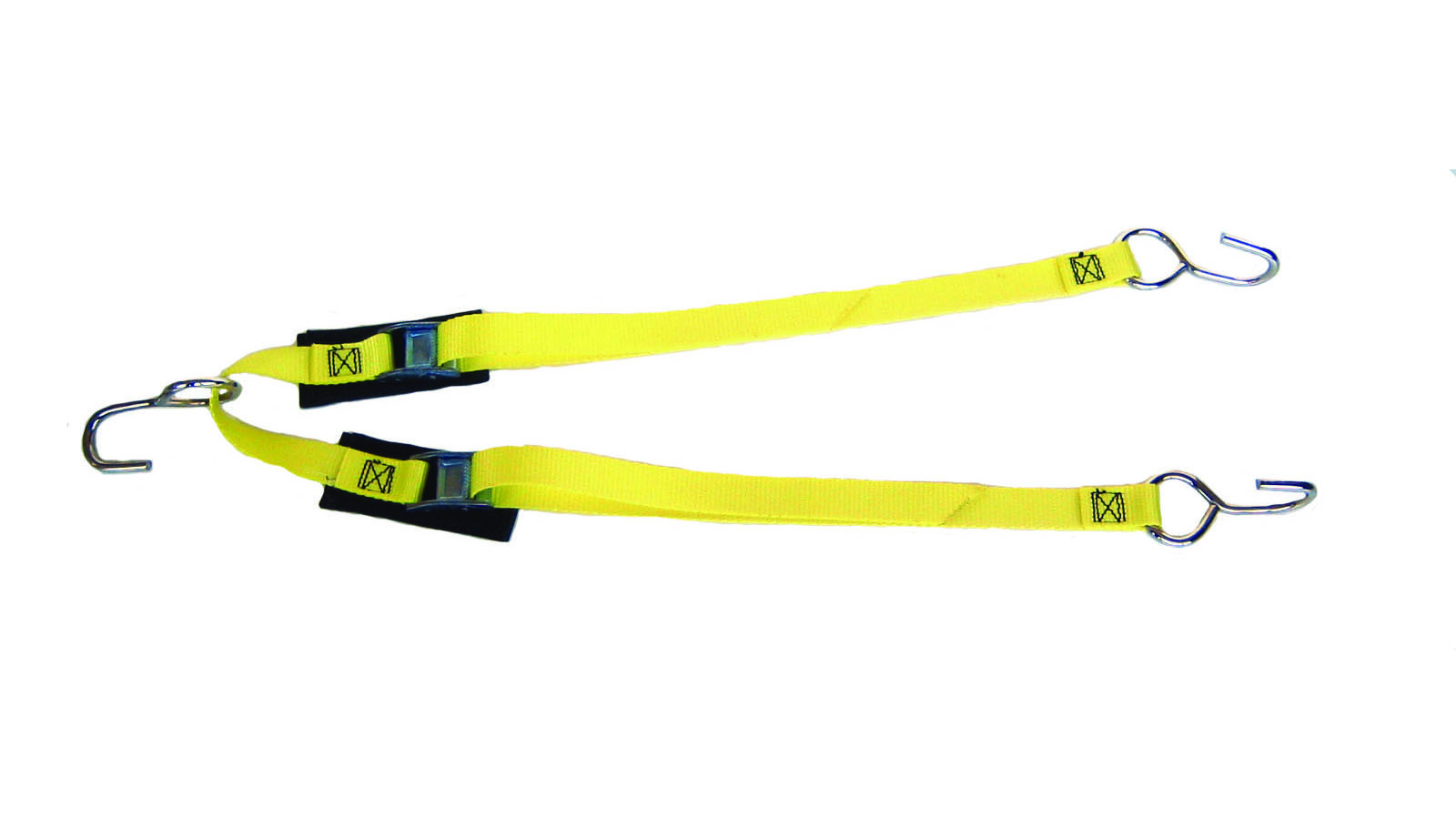

YCS11296

Working Load Limit: 166lbs (75kgs)

1" x 8' Y Canoe Straps with wear pad

One end of the Y strap attaches to your canoe and the other two ends attach to the car bumper or frame. Tighten the strap quickly with the two metal cam buckles!

Protective pad under the buckle to protect your canoe's surface.

Webbing b/s: 2,500lbs

Wheel Chair Restraints

WCK11242

Wheel chair securement kit

2 cam buckle straps and 2 ratchet buckle straps with double stud fittings
Color: blue/red/black
Working Load Limit: 600lbs (272kgs)

WCK11243

Wheel chair securement kit

2 cam buckle straps and 2 ratchet buckle straps with spring E fittings
Color: blue/red/black
Working Load Limit: 600lbs (272kgs)

Custom stenciling available upon request.
Contact your Customer Service Representative for more details.
